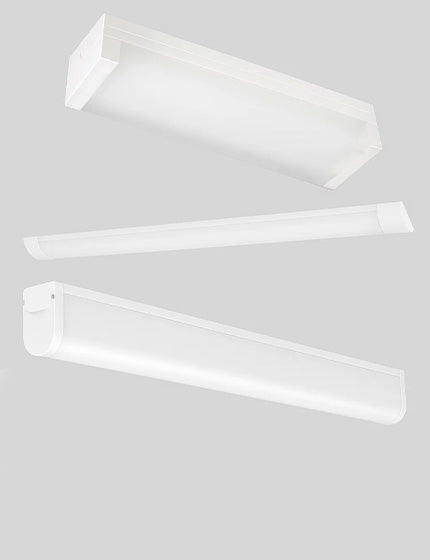

Blade LED Batten CCT 3K/4K/5K 240V 25W and 48W White Sunny Lighting SAL - SL9709 TC

$52.73

INSTALLATION TYPE

Surface mounted
Suspended (Suspension Kit Required SSI1512, SSY1512)
End to end installation

CONSTRUCTION

Select colour temperature with DIP switch
Extruded alunium body with poly end cap
Powder coated finish
Cable tray at back of fitting allows easy connections at various cable entry positions
Opal polycarbonate diffuser
High efficiency SMD LED chips

IP RATING

IP20 suitable for indoor use only

OLD ORDER CODE

SL9709/60WW
SL9709/60CW
SL9709/60DL
SL9709/120WW
SL9709/120CW
SL9709/120DL

NEW CODE

SL9709/60TC
SL9709/120TC

TECHNICAL SPECIFICATION

MODEL NO	CCT	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	FITTING COLOUR	DIMENSIONS L X W X H
SL9709/60TC	3000K, 4000K, 5700K	240V~50Hz	25W	3400lm, 3600lm, 3600lm	120º	>80	White	613 x 120 x 31 mm
SL9709/120TC	3000K, 4000K, 5700K	240V~50Hz	45W	6100lm, 6500lm, 6500lm	120º	>80	White	1213 x 120 x 31 mm

Blade LED Batten CCT 3K/4K/5K 240V 20W and 35W White Sunny Lighting SAL - SL9707 TC

$56.41

INSTALLATION TYPE

Surface mounted
Suspended (Suspension Kit Required SSI1512, SSY1512)
End to end installation

CONSTRUCTION

Select colour temperature with DIP switch
Extruded alunium body with poly end cap
Powder coated finish
Cable tray at back of fotting allows easy connections at various cable entry positions
Opal polycarbonate diffuser
High efficiency SMD LED chips

IP RATING

IP20 suitable for indoor use only

OLD ORDER CODE

SL9707/60WW
SL9707/60CW
SL9707/60DL
SL9707/120WW
SL9707/120CW
SL9707/120DL

NEW CODE

SL9707/60TC
SL9707/120TC

TECHNICAL SPECIFICATION

MODEL NO	CCT	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	FITTING COLOUR	DIMENSIONS L X W X H
SL9707/60TC	3000K, 4000K, 5700K	240V~50Hz	20W	1800lm, 1850lm, 1900lm	110º	>80	White	597x80x31mm
SL9707/120TC	3000K, 4000K, 5700K	240V~50Hz	35W	3300lm, 3400lm, 3500lm	110º	>80	White	1197x80x31mm

Mini Electronic Transformer Accessories IP20 Sunny Lighting SAL MINI60, MINI/P60

$18.95

Features:

Independent compact design
Captured terminal screws
High efficiency (95%)
Safe no load operation
Overload protection
Short circuit protection
Overheating protection
SELV equivalent
EMC compliant
Dimmable with trailing edge dimmer
Diming range 10%~100%

Model No	Output Power	Input Current	IP Rating	Power Factor	Input Voltage	TA	DIMENSIONS L X W X H	Output Voltage	TC	1#2 M FLEX & PLUG FITTED
MINI60	20~60w	0.26mA	IP20	0.99	240v	-20ºC~+50ºC	109 x 42 x 24 mm	11.5v	80ºC	NO
MINI/P60	20~60w	0.26mA	IP20	0.99	240v	-20ºC~+50ºC	109 x 42 x 24 mm	11.5v	80ºC	YES

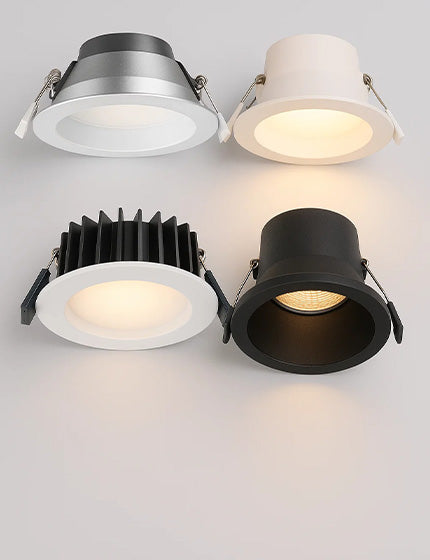

90mm LED Downlight 7w White CCT S9065TC WH SAL Lighting

$18.71

Product Type: LED Downlight

Features:

• Select colour temperature with DIP switch
• Poly covered aluminium body
• Opal acrylic diffuser
• Double insulation
• High-efficiency SMD LED chips
• Built-in trailing edge dimmable LED driver
• Integrated design, easy installation
• IP44 weatherproof

Includes:

• S9065TC dimmable LED downlight
• 1.2 m flex & plug
• S9065TC installations
• WAVE series warranty card

FITTING COLOUR OPTION

• Satin Nickel (S9065SN/RING)

Specification:

• Order Code: S9065TC WH
• Brand Name: Sunny Lighting SAL
• Product Name: Wave
• Category: Downlight
• Style: CCT (Colour Corrected Temperature)
• Material: Die-cast Aluminium, Powder Coated Finish
• Fitting Colour Option: Satin Nickel Ring (S9065SN/RING)
• Colour: White
• Colour Temperature: 3000K | 4000K | 5700K (Selectable)
• Light Colour: Warm White | Cool White | Daylight
• Lumens: 750lm/850lm/850lm
• Lamp: LED
• LED Type: SMD LED
• Dimmable: Yes
• Input Voltage: 240V
• Wattage: 7w
• Hertz: 50Hz
• CRI: >80
• Beam Angle: 90°
• Switch: DIP (Dual In-line Package) Switch
• Diffuser: Opal Acrylic
• IP Rating: IP44
• Weatherproof: Yes
• Height: 59mm
• Diameter: ø95mm
• Applicable for: Residential, Hotels, Shops, Conference Rooms, Reception Areas

92mm LED Downlight 10w White and Silver S9041 TC S SAL Lighting

$33.56

Product Type: LED Downlight

Features:

Select colour temperature with DIP switch
Die-cast aluminium body
Powder coated finish
Opal acrylic diffuser
High efficiency SMD LED chips
IP44 weatherproof

Includes:

S9041 S TC Dimmable LED downlight
Trailing edge dimmable LED driver
1.2 m flex & plug fitted

Specification:

Brand Name: Sunny Lighting SAL
Product Name: Ecogem
Category: Downlight
Style: CCT (Colour Corrected Temperature)
Material: Die-cast Aluminium, Powder Coated Finish
Colour: Satin Nickel
Colour Temperature: 3000K | 4200K | 5700K (Selectable)
Light Colour: Warm White | Cool White | Daylight
Lumens: 800lm | 900lm | 850lm
Lamp: LED
LED Type: SMD LED
Dimmable: Yes
Input Voltage: 240v
Wattage: 10w
Hertz: 50Hz
CRI: >80
Beam Angle: 90°
Switch: DIP (Dual In-line Package) Switch
Diffuser: Opal Acrylic
IP Rating: IP44
Cut out: ø92mm
Applicable for: Residential, Hotels, Shops, Conference Rooms, Reception Areas

Dimension

Height: 40mm
Length: 104mm
Width: 104mm

Order Code
S9041 TC S WH
S9041 TC S SN

72mm LED Downlight 8w White CCT S9041 TC WH SAL Lighting

$27.65

Product Type: LED Downlight

Features:

Select colour temperature with DIP switch
Die-cast aluminium body
Powder coated finish
Opal acrylic diffuser
High efficiency SMD LED chips
IP44 weatherproof

Includes:

S9140TC Dimmable LED downlight
Trailing edge dimmable LED driver
1.2 m flex & plug
Trader series warranty card

Dimming Options:

1-10V dimming
Digital dimming (DSI, DALI)

Specification:

Order Code: S9140TC WH | S9140TC SN
Brand Name: Sunny Lighting SAL
Product Name: Trader
Category: Downlight
Style: CCT (Colour Corrected Temperature)
Material: Die-cast Aluminium, Powder Coated Finish
Colour: White | Satin Nickel
Colour Temperature: 3000K | 4000K | 5700K (Selectable)
Light Colour: Warm White | Cool White | Daylight
Lumens: 650lm | 700lm | 700lm
Lamp: LED
LED Type: SMD LED
Dimmable: Yes
Input Voltage: 240v
Wattage: 8w
Hertz: 50Hz
CRI: >80
Beam Angle: 90°
Switch: DIP (Dual In-line Package) Switch
Diffuser: Opal Acrylic
IP Rating: IP44
Cut out: ø72mm
Height: 31mm
Diameter: ø85mm
Applicable for: Residential, Hotels, Shops, Conference Rooms, Reception Areas

90mm LED Downlight 10w White CCT S9041 TC WH SAL Lighting

$24.19

Product Type: LED Downlight

Description:
The S9041 by Sunny Lighting has been our most trusted and consistent downlight seller to date, this is down to SAL's brand being well known for high quality around the lighting industry, particularly electricians. Electricians constantly choose to buy this downlight and recommend customers to come into our store to buy it as they simply doesn't fail and they know exactly what they will get out of it. The S9041 TC LED downlights price is slightly higher to it's competitors due to all of this, most wholesalers have dropped the quality and materials in downlights to meet the market, where as Sunny lighting have stuck strong and still offer a full aluminium body downlights which last the distance.

DIMMABLE LED DOWNLIGHT 3 COLOUR TEMPERATURES SELECTABLE WITH A DIP SWITCH INCLUDES

• S9041 TC LED downlight
• Trailing edge dimmable LED driver
• 1.2 m flex & plug
• Ecogem Series Installations
• Ecogem Series Warranty Card

Features:
• Select colour temperature with DIP switch
• Die-cast aluminium body
• Powder coated finish
• Opal acrylic diffuser
• High efficiency SMD LED chips
• IP44 weatherproof front only

Specifications:
• Colour Temperature: 3000k/4200k/5700k selectable.
• Lumens: 850/1000/900
• Power: 10w
• Beam Angle: 90º
• CRI(RA): >80
• Dimmable: Yes
• Dimensions: 103mm x 40mm
• Cut Out: ø92mm
• Colour: White

Dimming Options:
• Trailing edge dimming

Fitting Colour Options:
• White

infrared Sensor Surface Mounted / Recessed 240V IP20 SAL Sunny Lighting SMS803CD

$79.31

Description:

Infrared sensor surface mounted or recessed occupancy.

Specifications:

Order Code: SMS803CD
Brand: SAL Sunny lighting
Category: Motion Sensor
Colour: White
Application: Surface Mounted, Recessed
Voltage: 240v
IP Rating: IP20
Detection Angle: 360°
Switched Power: 2000w incandescent, 600w Fluorescent, 300w LED
Standby Power: <1w
Mounting Height: Max. 9m
Operating temperature: -10° ~ +40°C
Duration Time: 10 sec to 40 mins adjustable
Lux threshold: Dawn to dusk adjustable
Sensor Principle: 3x infrared sensor
Mounting Method: Surface Mounted or Recessed

Detection Distance:

Max. 18 min diameter for normal detection Max. 6 m in diameter for occupancy detection

Dimensions:

Recessed

Diameter: ø106mm
Height: 57mm

Surface Mounted

Diameter: ø173mm
Height: 66mm

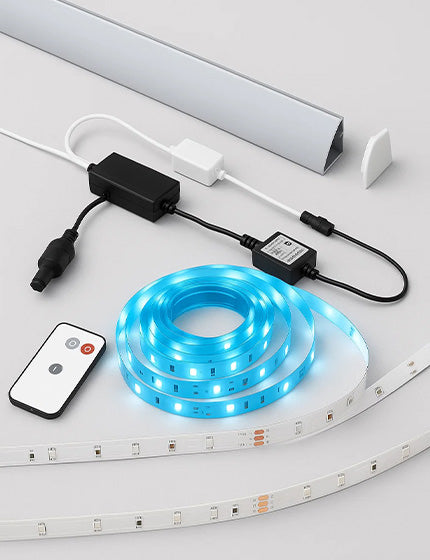

SLT LED Strip Channel Winged 2M in Silver SAL Sunny Lighting - SLT5000/2

$26.03

Description:

Profile shaped corner LED strip channel. An creative solution for residential and commercial interior spaces.

Specification:

Extruded aluminium body
Anodize silver finish
Opal polycarbonate diffuser

Model No.	Description
SLT5000/2	CHANNEL CORNER 16mm 2M AS M2

Wall Light - Plain Black / Silver SAL Sunny Lighting SE7142CW, SE7142WW

$98.49

Features:

Die-cast aluminium body and face cover
Powder coated finish
Opal polycarbonate diffuser
High efficiency SMD LED chips
Built in LED driver
Moulding shaped silicone gasket
IP67
Stainless steel allen screws
PVC installation canister included

Specifications:

Order Code: SE7142CW/BK, SE7142CW/SL, SE7142WW/BK, SE7142WW/SL
Brand Name: SAL Sunny Lighting
Category: Wall Light
Application: Slot
Material: Die Cast Aluminium
Finish: Powder Coated
Colour: Black, Silver
Diffuser: Opal Polycarbonate
Lamp: LED Chip
Type: SMD LED Chips
Input Voltage: 240v
Power: 3w
Lumens: 80lm
Colour Temperature: 4000k, 3000k
Colour Light: Cool White, Warm White
CRI: >80
IK Rating: 10
IP Rating: IP65
Use: Weatherproof, Walkways, Stairwells
Length: 160mm
Width: 86mm
Height: 85mm
Cover Length: 187mm
Cover Width: 105mm
Installation Canister Length: 158mm
Installation Canister Width: 84mm

Installation Canister Instructions:

Picture-“A” is the support plate used during the construction installation process to prevent deformation of the installation canister
Load as per A1, A2
Please remove the support plate (A1 & A2) from the installation canister before final installation

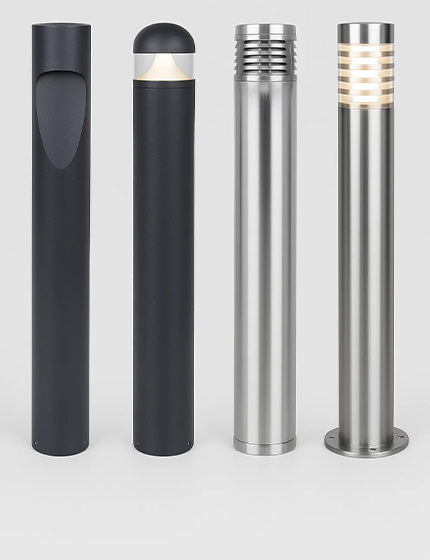

Post Light (Bollard) Black IP54 SAL Sunny Lighting - SE7106BK/LGLS

$330.22

Descriptions:
• Die-cast aluminium body
• Powder coated finish
• Clear polycarbonate diffuser
• E27 lamp base
• LED lamp NOT included

Specifications:
Order Code: SE7106BK/LGLS
Brand Name: SAL Sunny Lighting
Category: Post Light (Bollard)
Material: Die cast Aluminium
Colour: Black
Finish: Powder Coated
Diffuser: Clear Polycarbonate
Lamp: LED (not included)
Lamp Base: E27
IP Rating: IP54
Use: Weatherproof, Parks, Walkways
Height: 1000mm
Diameter: Ø160mm
Input Voltage: 240V

Post Light (Bollard) Black LED IP54 SAL Sunny Lighting SE7105BK/LGLS

$330.22

Descriptions:

• Die-cast aluminium body
• Powder coated finish
• Clear polycarbonate diffuser
• E27 lamp base LED lamp NOT included

Specifications:

Order Code: SE7105BK/LGLS
Brand Name: SAL Sunny Lighting
Category: Post Light (Bollard)
Material: Die cast Aluminium
Colour: Black
Finish: Powder Coated
Diffuser: Clear Polycarbonate
Lamp: LED (not included)
Lamp Base: E27
IP Rating: IP54
Use: Weatherproof, Parks, Walkways
Height: 1000mm
Diameter: Ø160mm
Input Voltage: 240v

Post Light (Bollard) Black LED IP54 SAL Sunny Lighting SE7104BK/LGLS

$330.22

Descriptions:

Die-cast aluminium body
Powder coated finish
Clear polycarbonate diffuser
E27 lamp base
LED lamp NOT included

Specifications:

Order Code: SE7104BK/LGLS
Brand Name: SAL Sunny Lighting
Category: Post Light (Bollard)
Material: Die cast Aluminium
Colour: Black
Finish: Powder Coated
Diffuser: Clear Polycarbonate
Lamp: LED (not included)
Lamp Base: E27
IP Rating: IP54
Use: Weatherproof, Parks, Walkways
Height: 1000mm
Diameter: Ø160mm
Input Voltage: 240V

Rec-Bunker Bunker Light IP54 Weatherproof 4000K CW SAL Sunny Lighting SE7087L

$117.35

Descriptions:

• Die-cast aluminium body
• Powder coated finish
• Opal polycarbonate diffuser
• Stainless steel screws
• Moulding shaped silicon gasket
• Built-in high efficiency SMD LED chips
• Constant current LED driver fitted
• IP54 weatherproof

Specifications:

Order Code: SE7087L
Brand Name: SAL Sunny Lighting
Product Name: Rec-Bunker
Category: Bunker Light
Material: Die cast aluminium
Finish: Powder Coated
Diffuser: Opal Polycarbonate
Lamp: LED
Chip type: SMD LED chips
Input Voltage: 240V
Power: 18W
Lumen: 1450lm
Colour Temperature: 4000K
Colour Light: Cool White
CRI: >80
Beam Angle: 90°
Fitting Colour: White
IK Rating: 10
IP Rating: IP54
Use: Weatherproof, Walkways, Stairwells, Car parks, Stations
Length: 323mm
Height: 94mm
Width: 101mm

Cooper Bunker Light Silver/Black IP65 23w 3000K/6000K SAL Sunny Lighting - SE7083L

$217.00

Description:
LED Bunker Light

Includes:
• SE7083L LED bunker light
• Stainless steel allen screws
• Moulding shaped silicon gasket

Options:
Analogue dimming (trailing edge,1-10V)
Digital dimming (DSI, DALI)

Features:
Surface mounted bunker light
Die-cast aluminium housing
Powder coated finish
Opal polycarbonate diffuser
Stainless steel screws
Silicon seal
Built-in high-efficiency SMD LED chips
Constant current LED driver fitted
IP65 weatherproof
Available colours: Black, Silver
Available colour temperature: Warm White, Daylight

Installation Type:
Surface Mounted

Technical Specification:

MODEL NO	COLOUR TEMPERATURE	INPUT VOLTAGE	POWER	LUMINOUS FLUX	CRI	DIMENSIONS Ø X H	FITTING COLOUR
SE7083L SL WW	3000K	240V~50Hz	23W	1400lm	>80	350 x 130 mm	Silver
SE7083L SL DL	6000K	240V~50Hz	23W	1500lm	>80	350 x 130 mm	Silver
SE7083L BK WW	3000K	240V~50Hz	23W	1400lm	>80	350 x 130 mm	Black
SE7083L BK DL	6000K	240V~50Hz	23W	1500lm	>80	350 x 130 mm	Black

Stargem Flood Light LED 3000k/6000k Black IP54 SAL Sunny Lighting SE7080/1

$52.76

Description:

Adjustable heads with 180º coverage
Polycarbonate construction base
Die-cast aluminium heat sink
Powder coated finish
Opal polycarbonate diffuser with tempered glass cover
Built-in high output 10w LED chips
High efficiency aluminium reflector
Constant current LED driver fitted

Model No	Colour Temperature	Input Voltage	Power	Lumens	CRI	Colour	Length	Width	Height
SE7080/1 WW BK	3000k	240V~50Hz	10w	600lm	>80	Black	215mm	177mm	205mm
SE7080/1 DL BK	6000k	240V~50Hz	10w	700lm	>80	Black	215mm	177mm	205mm

Panel/Plaster Ceiling Frame Recessed in White SAL Sunny Lighting - S9704/FRAME

$60.56

Description:

LED panel installation type recessed ceiling frame. Designed for commercial office interior spaces.

Specification:

Pressed steel base
Quality white powder coated finish

Model No.	Description	Body Colour	Length	Width	Height
S9704/214 FRAME	PLASTER FRAME 214/306 SIZE WH	WHITE	630mm	330mm	40mm
S9704/414 FRAME	PLASTER FRAME 606/606 SIZE WH	WHITE	630mm	630mm	40mm
S9704/228 FRAME	PLASTER FRAME 228/312 SIZE WH	WHITE	1230mm	330mm	40mm
S9704/328 FRAME	PLASTER FRAME 328/612 SIZE WH	WHITE	1230mm	630mm	40mm

SM-Ecostar LED Downlight 12w White 3k/5k S9656 SAL Lighting

$84.67

Product Type: LED Downlight

DESCRIPTION

DIMMABLE LED DOWNLIGHT (SURFACE MOUNTED VERSION)

INCLUDES

• S9048 LED downlight
• Surface mounted can
• ECOSTAR series Warranty Card

FEATURES

S9048 Ecostar surface mounted downlight
Pressed metal body
Powder coated finish
Trailing edge dimmable LED driver included
IP20 suitable for indoor use only
Available fitting colour: White
Available colour temperature: Warm White, Daylight

INSTALLATION TYPE

SURFACE MOUNTED

MODEL NO	COLOUR TEMPERATURE	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	DIMMABLE	DIMENSIONS Ø X H	FITTING COLOUR
S9048SM/C WW WH	3000K	240V~50Hz	12W	750lm	55º	>80	Yes	145 x 152 mm	White
S9048SM/C DL WH	5000K	240V~50Hz	12W	800lm	55º	>80	Yes	145 x 152 mm	White

Geo in-Ground Light LED IP67 3000K/4000K Stainless Steel SAL Sunny Lighting S9343

$410.75

DESCRIPTION

LED INGROUND LIGHT

INCLUDES

• S9343 LED inground light
• IP68 PG11 PVC cable gland
• Stainless steel allen screws
• Installation PVC canister

FEATURES

• Die-cast aluminium body
• 316L stainless steel face cover
• Tempered glass diffuser
• High efficiency COB LED chip
• High performance multi-reflector system
• Constant current LED driver fitted
• Moulding shaped silicone gasket
• IP67 weatherproof
• IK Rating: IK07
• Glass pressure capacity: 4400KGS

INSTALLATION TYPE

INGROUND

TECHNICAL SPECIFICATION

MODEL NO	COLOUR TEMPERATURE	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	DIMENSIONS Ø X H	CUT OUT SIZE Ø	FITTING COLOUR
S9343WW	3000K	240V~50Hz	13W	600lm	24º	>80	175 x 220 mm	175 mm	Stainless Steel
S9343CW	4000K	240V~50Hz	13W	600lm	24º	>80	175 x 220 mm	175 mm	Stainless Steel

Ud Wall Light White LED IP20 3000K Warm White SAL Sunny Lighting S9356/160Ww/WH

$62.78

DESCRIPTION

LED WALL LIGHT

INCLUDES

S9356/160 LED wall light
UD installations
UD series warranty card

FEATURES

Aluminium body
Powder coated finish
High efficiency SMD LED chips
Up & Down beam angle adjustable from 0º~120º
Constant current LED driver fitted
IP20 suitable for indoor use only

INSTALLATION TYPE

SURFACE MOUNTED

TECHNICAL SPECIFICATION

MODEL NO	COLOUR TEMPERATURE	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	FITTING COLOUR	DIMENSIONS L X W X H
S9356/160WW/WH	3000K	240V~50Hz	3W	250lm	0º~120º	>80	White	160 x 80 x 53 mm

Ud Wall Light White LED IP20 3000K Warm White SAL Sunny Lighting S9356/610Ww/WH

$135.14

DESCRIPTION

LED WALL LIGHT

INCLUDES

• S9356/610 LED wall light
• UD installations
• UD series warranty card

FEATURES

• Aluminium body
• Powder coated finish
• High efficiency SMD LED chips
• Up & down beam angle adjustable from 0º to 120º
• Constant current LED driver fitted
• IP20 suitable for indoor use only

INSTALLATION TYPE

SURFACE MOUNTED

TECHNICAL SPECIFICATION

MODEL NO	COLOUR TEMPERATURE	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	FITTING COLOUR	DIMENSIONS L X W X H
s9356/610	3000K	240V~50Hz	12W	800lm	0º~120º	>80	White	610 x 80 x 53 mm

Ground LED in-Ground Light 3W 3000k or 6000k in Stainless Steel Ground LED in-Ground Light 3W 3000k or 6000k in Stainless Steel

$193.23

3 watt adjustable LED inground luminaire, IP67 rated.

Decorative residential exterior solution, ideal for gardens and decorative pathways

Features:

Die-cast aluminium body
Stainless steel face panel & screws, clear tempered glass diffuser
High output LED optics 24V DC driver required
Beam angle 30º , optical adjustment between 50º~60º
PC installation canister included, pre-wqired 600 mm 2 core rubber flex
Suitable LED drivers, PLUTO 15DV, PLUTO 40DV, PLUTO 60DV, PLUTO 100/24V, IK08, IP67 performance

Specifications:

Colour: Stainless Steel
Input Voltage: 240v
Wattage: 3w
CRI: 70
Beam Angle: 30°
IP Rating: IP67
Dimmable: No
Warranty: 3 Years (Residential), 2 Years (Commercial)

Order Code	Colour Temperature	Lumens	Diameter	Height
S9338/3W/30 WW	3000k	150lm	ø130mm	115mm
S9338/3W/30 DL	6000k	200lm	ø130mm	115mm

76mm LED Downlight 10w White CCT in White/Black S9009TC2 SAL Lighting

$64.08

The UNIFIT is a centre tilt dimmable 10 watt LED downlight, with selectable CCT.

DESCRIPTION

RECESSED DOWNLIGHT FITTING

ACCESSORIES:

Honeycomb - S9053HC
Centre frost diffuser - S9053DF
Buffer - S9053BF

FEATURES

Die cast aluminium body profile
CRI>80
Wattage: 10w
Colour: Black, White
Colour Temperature: CCT
Dimmable: YES
Installation Type: Recessed
Dimmer Type: Trailing edge, optional 1-10V, DALI / DSI
Stylish white or black powder coat finish
High output COB LED optics
Multi-faceted reflector system, 60 degree beam distribution.
Polycarbonate optical lens,
Remote constant current trailing edge dimmable LED driver with flex and plug

DIMENSION

Cut out: ø76mm
Diameter: ø82mm
Height: 80mm
Adjustable centre tilt: 23º

TECHNICAL SPECIFICATION

MODEL NO	CCT	INPUT VOLTAGE	POWER	LUMINOUS FLUX (lm)	BEAM ANGLE	CRI(RA)	COLOUR
S9009TC2WH	3000/4000/5700	240V~50Hz	10w	750/900/850	60º	>80	Matt White
S9009TC2BK	3000/4000/5700	240V~50Hz	10w	750/900/850	60º	>80	Matt Black

Leeman Wall Light LED 1.5W 3000K Anodized Silver, Matt White SAL Sunny Lighting S9318

$46.81

DESCRIPTION:
LED Wall Light

INCLUDES:
• S9318 LED wall light
• LEEMAN series warranty card

DRIVER OPTIONS:

• PLUTO EGL 12V/6W
• PLUTO EGL 12V/15W
• PLUTO 30W/12V, PLUTO 50W/12V
• PLUTO 100W/12V, PLUTO 200W/12V

FEATURES:
• Recessed LED wall light
• Premier aluminium body
• Frosted glass diffuser
• High-efficiency SMD LED chips
• 12V AC or DC driver required
• IP20 suitable for indoor use only
• Available fitting colours: Matt White, Anodized Silver
• Available colour temperature: Warm White

INSTALLATION TYPE:
Recessed

TECHNICAL SPECIFICATION:

MODEL NO	COLOUR TEMPERATURE	INPUT VOLTAGE	POWER	LUMINOUS FLUX	BEAM ANGLE	CRI(RA)	FITTING COLOUR	DIMENSIONS L X W X H	CUT OUT SIZE L X W
S9318 AS	3000K	12V	1.5W	70lm	86º	>80	Anodized Silver	80 x 80 x 48 mm	68 x 68 mm
S9318 MW	3000K	12V	1.5W	70lm	86º	>80	Matt White	80 x 80 x 48 mm	68 x 68 mm

LED Panel Surface Mounted Frame White Finish SAL Sunny Lighting S612FM

$124.15

Description:

Pressed steel frame
Powder coated finish

Specifications:

Order Code: S612FM
Brand: SAL Sunny Lighting
Category: LED
Panel Application: Surface Mounted
Finish Colour: White
Suitable Product: S9714/612, S9714HC/612CW

Dimensions:

Frame Width: 658mm
Frame Length: 1200mm
Panel Height: 65mm
Panel Width: 600mm

LED Panel Surface Mounted Frame White Finish Sunny Lighting SAL S606FM

$68.13

Description:

Pressed steel frame
Powder coated finish

Specifications:

Order Code: S606FM
Brand: SAL Sunny Lighting
Category: Accessories - LED Panel Frame
Application: Surface Mounted
Finish Colour: White
Suitable Product: S9714/606, S9714HO/606TC, S9714HC/606CW

Dimensions:

Frame Width: 658mm
Frame Length: 600mm
Frame Height: 65mm

LED Panel Surface Mounted Frame White Finish SAL Sunny Lighting S312FM

$55.89

Description:

Pressed steel frame
Powder coated finish

Specification:

Order Code: S312FM
Brand: SAL Sunny Lighting
Category: LED Panel Frame
Application: Surface Mounted
Finish Colour: White
Suitable Product: S9714/312, S9714HO/312TC, S9714HC/312CW

Dimensions:

Frame Width: 358mm
Frame Length: 1200mm
Frame Height: 65mm

Air Slot LED Panel Frame in White SAL Sunny Lighting - S312FMA

$59.71

LED panel frame for T-bar ceiling

Application
- Conventional LED commercial airslot panels for general office spaces

Specification:

Pressed steel base
Quality white powder coated finish
Designated panels: S312FMA = S9754/312 range, S9784/312 range, S9724/312 range S9734/312 range

Dimensions:

Length: 1196mm
Width: 320mm
Height: 16mm

NOTE: Frame ONLY. LED Panel sold separately.

LED Panel Surface Mounted Frame White Finish SAL Sunny Lighting - S306FM

$56.78

Description:

Pressed steel frame
Powder coated finish

Specification:

Order Code: S306FM
Brand: SAL Sunny Lighting
Category: LED Panel Frame
Application: Surface Mounted
Finish Colour: White
Suitable Product: S9714/306

Dimensions

Frame Width: 358mm
Frame Length: 600mm
Frame Height: 65mm

SPOT II Black: 4w GU10 Single LED Track Head Spot Light - STR4863TC/BK

$47.69

Application
Ideal for decorative retail and interior residential spaces

Design Specifications

Aluminium body profile
Powder coat finish in white or black
GU10 lamp base
GU10L350TC selectable colour temperature lamp included, 3000/4000/6000K CRI>80, beam distribution 50°
350 degree rotatable (horizontal), 120 degree vertical
SAL Lamp options: GU10L550TC, GU10LR750, GULA750 (trailing edge dimmable)

Performance

Dimmable - OPTIONAL
Dimmer Type - Trailing edge dimmable lamp GU10LA750

Technical Specifications:

Input Voltage: 240v
Wattage: 4w
Colour Temperature: 3000k/4000k/6000k
Lumens: 360lm/400lm/380lm
CRI: 80
Beam Angle: 50°

Post Light (Bollard) Black/Silver LED IP54 SAL Sunny Lighting - SE7102

$461.44

Features

Die-cast aluminium body
Powder coated finish
Clear polycarbonate diffuser
Stainless steel reflector
E27 lamp base
IP54 weatherproof

Specifications:

Colour: Black, Silver
Input Voltage: 240v
Globe Base: E27
Dimmable: No
IP Rating: IP54
Warranty: 5 Years

Dimensions:

Diameter: ø203mm
Height: 1000mm

Newport Wall Light 12v IP65 GU5.3 BK/SL/SLS Sunny Lighting SAL SL7268

$45.45

Features:

Recessed wall or inground light
Machined 316L grade stainless steel body or Die cast aluminium body
Powder coated finish (Black, Silver)
Tempered glass cover
Protection case included
GU5.3 lamp base
Lamp NOT included
12V AC or DC transformer required
IP65 weatherproof
Available fitting colours: Stainless Steel, Black, Silver

Model No	Input Voltage	Fitting Colour	Lamp Base	OPTIONAL MR16 LED LAMPS
SL7268 BK	12V	Black	GU5.3	E-STAR MR16 4W, 5W
SL7268 SL	12V	Silver	GU5.3	E-STAR MR16 4W, 5W
SL7268 SA	12V	Stainless Steel	GU5.3	E-STAR MR16 4W, 5W
SL7268 SLS	12V	Stainless Steel	GU5.3	E-STAR MR16 4W, 5W

Newport Inground Wall Light 12V BK/SL/SLS Wall Light Sunny Lighting SAL SL7267

$43.61

Features:

Recessed wall or inground light
Machined 316L grade stainless steel body or Die cast aluminium body
Powder coated finish (Black, Silver)
Tempered glass cover
Protection case included
GU5.3 lamp base
Lamp NOT included
12V AC or DC transformer requried
IP65 weatherproof
Available fitting colours: Stainless Steel, Black, Silver

Technical Specification:

Model No	Input Voltage	Fitting Colour	Lamp Base	OPTIONAL MR16 LED LAMPS
SL7267 BK	12V	Black	GU5.3	E-STAR MR16 4W, 5W
SL7267 SL	12V	Silver	GU5.3	E-STAR MR16 4W, 5W
SL7267 SA	12V	Stainless Steel	GU5.3	E-STAR MR16 4W, 5W
SL7267 SLS	12V	Stainless Steel	GU5.3	E-STAR MR16 4W, 5W

Darham Round LED Step Light 1.5w in Anodised Silver, White

$59.25

LED 1.5 watt recessed round profile wall luminaire.

Features:

Durable die-cast aluminium body profile
White powder coat finish or anodized silver
High efficiency SMD optics, CCT 3000K
Opal acrylic diffuser with glass cover
12v AC or DC driver required, suitable drivers - PLUTO EGL12V/6W PLUTO 15DV, 40DV, 60DV

Application:

Ideal for any residential stairs, walkways or commercial interior space.

Specifications:

Colour: Anodised Silver, White
Material: Die-cast Aluminium
Wattage: 1.5w
Globe Type: LED
Colour Temperature: 3000k
Lumens: 110lm
Input Voltage: 12v
CRI: >80
Dimmable: No
IP Rating: IP20
Warranty: 3 Years residential, 2 Years commercial

Dimensions:

Cut Out: ø60mm
Diameter: ø90mm
Height: 53mm

12w LED Globe Module Warm White 3000k AR111/700 Dimmable

$59.77

AR111 LED lamp module.

Features:

Die-cast aluminium body, G53 base
High output LED optics, 3000K
Specially designed optical lens
12V AC or DC non-dimmable driver required (SAL PLUTO 15DV)
Standard beam angle 24°, optional 40°

Application:

Energy efficient LED lamp solutions.

Specifications:

Wattage: 12w
Globe Base: G53
Globe Type: LED
Material: Die-cast Aluminium
Colour Temperature: 3000k
Lumens: 750lm
Input Voltage: 12v
Dimmable: No
IP Rating: IP20
CRI: >80
Beam Angle: 24°
Warranty: 1 Year

Dimensions:

Diameter: ø111mm
Height: 66mm

Albany LED Shop Light Tri-colour 36w/28w in Silver/White SAL Sunny Lighting - S9514TC

Albany LED Shop Light Tri-colour 36W in Silver/White SAL Sunny Lighting - S9514TC

$113.81

Description:

Surface mount LED Shop Light with selectable colour and power. Ideal for any retail or commercial interior spaces.

Specification:

Easy selectable colour temperature with an inbuilt DIP switch
Twin 36w / 28w setting with the DIP switch
Adjustable up to 60 degree, IC - 4 rated.
Constant current non-dimmable LED driver, complete with flex and plug.
Stylish white or silver powder coat finish
Optional trailing edge, 1-10V analogue, DALI/DSI, digital dimming

Dimension:

Length: 215mm
Width: 130mm
Height: 115mm

Model No.	Description	Input (ac) (V)	Power (W)	Lumens (lm)	CCT (K)	Beam Angle	CRI	Body Colour
S9514TC SL	LED D/L 36/28W ADJ. 3/4/6K SL	240	36	3600/2800	3000/4000/5500	100	80	SILVER
S9514TC WH	LED D/L 36/28W ADJ. 3/4/6K WH	240	36	3600/2800	3000/4000/5500	100	80	WHITE

Lounge II LED Outdoor Wall Light CCT in Black or White

$98.42

Description
15 watt decorative IP54 architectural LED wall mount luminaire, with selectable CCT

A decorative architectural solution for residential, commercial interior or exterior spaces

Features:

Selectable CCT 3000k / 4000k / 5000k
Durable white or black powder coated finish
Integral non-dimmable control gear 15 watt
Robust die-cast aluminium body profile
High efficiency LED optics
Indirect illumination (up and down) optical performance

Specifications:

Colour: Black, White
Input Voltage: 240v
Wattage: 15w
Colour Temperature: 3000k, 4000k, 5000k
Lumens: 800lm, 1000lm, 900lm
CRI: 80
Beam Angle: 100°
Dimmable: No
IP Rating: IP54
Warranty: 3 Year(Residential) , 2 Year(Commercial)

Dimensions:

Length: 220mm
Width: 90mm
Height: 55mm

Lounge II LED 9w IP54 3k/4k/6k in White SAL Sunny Lighting - S9328/150TC/WH

$74.98

Description
Decorative IP54 architectural LED wall mount luminaire
A decorative architectural solution for residential, commercial interior or exterior spaces

Specification

Convenient TC selectable colour temperature, 3000 / 4000 / 5000K
Durable white or black powder coated finish
Integral control gear 9 watt
Robust die-cast aluminium body profile
High-efficiency SMD LED
Lumens: 500/600/550
Colour: White
Wattage: 9w
Colour Temperature: 3000k/4000k/6000k

Dimension
Length: 150mm
Width: 90mm
Height: 55mm

Order Code
S9328/150TC/WH

Leeman Mini LED 1.5w 3k in White or Anodised Silver SAL Sunny Lighting - S9319 AS,S9319 MW

$35.02

Description
LED 1.5 watt recessed MINI square profile wall luminaire
Residential stairs, walkways and commercial features

Specification

Durable die-cast aluminium body profile
Quality white powder coat finish or anodised silver
High efficiency SMD LED chips, CCT 3000K, beam distribution 86 degree
Frosted glass diffuser
12V AC or DC driver required
Lumens: 70lm
Colour Temperature: 3000k
Wattage: 1.5w
CRI>80
Colour: Anodised Silver/White

Dimension
Length: 60mm
Width: 60mm
Height: 30mm
Cut out Size: L 50 x H 50mm

Order Code
S9319 AS
S9319 MW

195mm Exmouth LED Downlight 28/40w Silver, White CCT S9523TC SAL Lighting

$111.72

Description:

Recessed 40/28 watt circular LED Shop light with selectable colour and power. Ideal for any residential or commercial interior space.

Specification:

Easy selectable colour temperature with an inbuilt DIP switch
Twin 40w / 28w setting with the DIP switch
Durable die-cast aluminium body profile
Constant current non-dimmable LED driver
Stylish powder coat finish with an Opal polycarbonate diffuser
High efficiency SMD LED chips

Dimension:

Diameter: ø225mm
Height: 65mm
Cut Out: ø195mm

Model No.	Description	Input (ac) (V)	Power (W)	Lumens (lm)	CCT (K)	Beam Angle	CRI	Body Colour
S9523TC WH	LED D/L 40w 225mm 3/4/6K WHITE	240	40	3800/2800	3000/4000/5500	105	80	WHITE
S9523TC SL	LED D/L 40w 225mm 3/4/6K SL.	240	40	3800/2800	3000/4000/5500	105	80	SILVER

92mm Tradegem II LED Downlight 9w White CCT S9141TC2WH SAL Lighting

$5.25

Product Type: LED Downlight

Description:
Dimmable IP44, 9 watt LED downlight with selectable CCT.

Features:

Easy selectable CCT, 3000k/4000k/5700k
Durable PA and aluminium reinforced body profile, IC-4 rated
Remote constant current trailing edge dimmable LED driver, with flex and plug
Quality opal polycarbonate diffuser
High efficiency LED optics
Stylish white finish, Deco ring options available - Satin Nickel (S9141SN/RING)

Specifications:

Colour: White
Wattage: 9w
Voltage: 240v
Colour Temperature: CCT (3000k/4000k/5700k)
Lumens: 900lm/1050lm/1000lm
Beam Angle: 110°
CRI: >80
Dimmable: YES
Dimmer Type - Trailing edge
Warranty: 3 Years Commercial, 5 Years Residential

Application:

Ideal for any residential or commercial interior space

Dimension:

Cut-Out: ø92mm
Diameter: ø104mm
Height: 26mm

Anova LED Cabinet Light 12v 3k/6k in Satin Nickel SAL Sunny Lighting

$26.27

Description
Compact 4 watt recessed LED cabinet luminaireCompact 4 watt recessed LED cabinet luminaire
Residential and commercial features

Specification

Durable die-cast aluminium body profile
Quality white powder coat or satin nickel plated finish
High efficiency SMD LED chips
12V DC LED driver required
Low profile design
Wattage: 4w
Voltage 12v
Colour Temperature: 3000k/6000k
Colour: Satin Nickel/White
Lumens: 280lm
CRI>82

Dimension
Height: 20mm
Diameter: ⌀60mm

Order Code
S9105DL/SN (Sating Nickel)
S9105DL/WH (White)
S9105WW/SN (Satin Nickel)
S9105WW/WH (White)

Anova 4w LED Cabinet Light IP20 White or Satin Nickel SAL Sunny Lighting

$32.91

Description
Compact 4-watt surface mount LED cabinet luminaire
Residential and commercial features

Features

Durable die-cast aluminium body profile
Wattage: 4w
IP Rating: IP20
Colour Temperature: 3000k, 6000k
CRI: 82
Lumens: 280lm
Input Voltage: 12v DC
Quality white powder coat or satin nickel plated finish
High-efficiency SMD LED chips
Low profile design

Dimension
Height: 27mm
Diameter: ø77mm

Order Code
S9105WW SR/WH (3000k - White)
S9105WW SR/SN (3000k - Satin Nickel)
S9105DL SR/WH (6000k - White)
S9105DL SR/SN (6000k - Satin Nickel)

LED Panel Light 40W 4000K in White SAL Sunny Lighting - S9754HC

$146.72

Descriptions:

40 watt LED High CRI panel UGR<19. Low COI suitable for use in hospitals and medical centres to achieve compliance with AS/NZS 1680.2.5.

Specification:

Extruded aluminium profile with high efficiency opal polystyrene back diffuser
Quality white powder coated finish
High efficiency SMD LED chips UGR<19, beam distribution 100 degree, CCT selectable 3000,4000,5700K
Integral constant current non-dimmable LED driver, 40 watt
Cyanosis Observation Index (COI) compliant with AS/NZS 1680.2.5, High colour rendering with emergency options available

Dimension: (length a width x height mm)

S9754/312 = 1195 X 295 X 10
S9754/606 = 595 X 595 X 10

Model No.	Description	Input (ac)	Power	Lumens	CCT	Body Colour
S9754HC/312CW	LED PANEL HIGH CRI 295 x 1195mm CW	240	40	2800	4000	WHITE
S9754HC/606CW	LED PANEL HIGH CRI 595 X 595mm CW	240	40	3200	4000	WHITE

INSTALLATION TYPES - Standard metric T-Bar ceiling recessed installation, Air Slot models to suit ,/312 panel sizes, Plaster ceiling recessed installation (S9704 Plaster ceiling frame required), Clen Room models to suit ,/606, ,/312 panels sizes, Surface mounted installation (S312FM, S606FM surface mounted frame required), Suspended installation (SSI1512 & S9714SP6 or SSY1512 & S9714SP6, Suspension Kits required Dimming options - 1-10V analogue (excluding S9754HC/612)

115mm LED Downlight 14w White, Silver CCT S9072TC SAL Lighting

$51.06

Product Type: LED Downlight

Description
Dimmable IP64 14w LED downlight with selectable colour
Ideal for any residential or commercial interior space

Specification

Premium aluminium body profile, IC - 4 rated
Stylish white or silver powder coat finish
Quality opal acrylic diffuser
High efficiency SMD LED chips
Constant current trailing edge dimmable LED driver, with flex and plug
Dimming options: 1-10v analogue, DALI, DSI
Lumens :1000lm/1150lm
Wattage: 14w
IP Rating: IP64
Voltage: 240v (AC)
Colour Temperature: 3000k/4000k/6000k
Colour: S9072TC SL (SIlver), S9072TC WH (White)
Beam Angle: 90°
CRI>80

Order Code
S9072TC SL (Silver)
S9072TC WH (White)

Titan LED Linkable Profile 40w/80w in White SAL Sunny Lighting - S9776/40CW S9776/80CW

$207.27

Descriptions:

40 or 80 watt LED connectable profile. Decorative commercial applications, meeting rooms or amenity areas.

Specification:

Extruded aluminium profile colour white, with opal polycarbonate diffuser
High efficiency SMD LED chips, CRI > 80, beam distribution 90 degree, CCT 4000K
Integral constant current non-dimmable LED driver 40 or 80 watt
Adjustable suspension kit fitted (2 x SSY1512), Accessory option - straight link (S9776IP)
Surface mounted (allow min. 70 mm clearance at both ends) Loop in loop out cable duct
CCT options 3000 or 6000K, Diming options Trailing edge, DSI, DALI

Model No.	Description	Input (ac)	Power	Lumens	CCT	CRI	Body Colour
S9776/40CW	LED LINKABLE 40w 1138x71mmx99mm 4K	240	40	3000	4000	80	WHITE
S9776/80CW	LED LINKABLE 80w 2256x71mmx99mm 4K	240	80	6000	4000	80	WHITE

COLOUR TEMPERATURE - 4000K Cool White (standard) - 3000K Warm White (option) - 6000K Daylight (option) ACCESSORY OPTION - Straight link (S9776IP)

92mm LED Downlight 10w White, Silver CCT S9071TC SAL Lighting

$34.93

Product Type: LED Downlight

Description
Dimmable IP64 10W LED downlight with selectable colour
Ideal for any residential or commercial interior spaces

Specification

Premium aluminium body profile, IC-4 rated
Stylish white or silver powder coat finish
Quality opal acrylic diffuser
High-efficiency SMD LED chips
Constant current trailing edge dimmable LED driver, with flex and plug
IP64 rated (from below ceiling)
Voltage: 240 (ac)
Wattage: 10w
Lumens: 800lm/900lm
Colour Temperature: 3000k/4000k/5700k
Beam Angle: 90°
Colour: White (S9071TC WH), Silver (S9071TC SL)
CRI>80
Dimmable

Dimension
Height: 57mm
Diameter: ⌀113mm

Order Code
S9071TC SL (Silver)
S9071TC WH (White)

Lighting Accessories - Straight Link for S9776 SAL Sunny Lighting - S9776IP

$6.20

Descriptions:

CLIPS FOR S9776
