Aqualux Lighting

Accessories - Aquatran AQO AC Power Supply 12v/24v IP67 in 20w, 50w, 100w or 200w

$164.84

Description:
Australia's leading outdoor power supply. The AQO is a magentic, toroidal based power supply with integrated safety features. Suitable for a wide range of applications wherever 12V/24V AC SELV power is required.

Specification

Input Voltage: 230v AC / 50Hz
Output Voltage: 12v AC / 24v AC
Input Cable: 1.8m Flex & Plug
Output Cable: 1M 8mm² Cable
IP Rating: IP67
Warranty: 10 Year Aquatran Warranty

Order Code	Wattage	Output Voltage	Length	Width	Height
AQO12-020	20w	12v AC	165mm	145mm	80mm
AQO12-050	50w	12v AC	165mm	145mm	80mm
AQO12-100	100w	12v AC	165mm	145mm	80mm
AQO12-200	200w	12v AC	133mm	112mm	65mm
AQO24-050	50w	24v AC	165mm	145mm	80mm
AQO24-100	100w	24v AC	165mm	145mm	80mm
AQO24-200	200w	24v AC	133mm	112mm	65mm

1w LED E27 Fancy Round Globe Warm White 2500k AQF-G-001

$17.84

Specifications:

Input Voltage: 24v AC / DC
Wattage: 0.5w AC / 0.3w DC
Globe Base: E27
Colour Temperature: 2500k
Lumens: 43lm
IP Rating: IP44 Globe only / IP65 when installed in AQF-C-XXX
Warranty: 3 Years

Dimensions:

Length: 69.5mm
Diameter: ø45.5mm

Commercial High Grade LED Festoon Lighting IP65 24V AC/DC Aqualux Lighting - AQF-050-W3

$1.04

Product Type: Festoon Lights

This product is of commercial grade quality and tailored to each specific job. For a customized quotation, please click the 'Enquire' button and we will respond promptly with the details.

Description:

IP65 LED Festoon Lighting & SELV 24V AC/DC lamps in 2500-2800K CCT. Lamps at 0.5m spacing. Runs over 3m require catenary wire support.

Specification:

Product Code: AQF-050
Family: LED Flex & Festoon
Lamp Options: Low Voltage E27 Base
Voltage Options: 24V AC / DC
Warranty: 2 Year Electrical & Mechanical
IP Rating: IP65
Colour Temperature: Warm White (2500K - 2800K)

Not the item your after? Check out our complete range of festoon lights

AQL-158 LumenaPro LED in-Ground Lights in Black, Bronze or Basalt

$1,072.04

The AQL-158 is a high-powered recessed uplight for illuminating walls, features and columns.

Specifications:

Family: LumenaPro
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt
Wattage: 30w
IP Rating: IP67
Voltage: 24v DC 3-Wire, 24v DC RGBW
Colour Temperature: 2700k, 3000k, 4000k, 5700k, RGB+3000k
Lumens: 1800lm, 1665lm
Optical: 10°, 25°, 35°
Dimmable: Yes (PWM 10V Dimming / 4CH Low-Side PWM)
Warranty: 7 Years

Dimension:

Diameter: ø180mm
Height: 64mm

AQL-157 LumenaPro LED Inground Uplight 30w Black, Bronze, Basalt, White

$1,072.04

The AQL-157 is designed for larger scale vertical illumination of walls, facades and features from an inground luminaire.

Specifications:

Family: LumenaPro
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 30w
IP Rating: IP67
Voltage: 24v DC
Colour Temperature: 3000k
Lumens: 3000lm
Optical: Asymmetric Wall Wash
Dimmable: Yes (PWM 10V Dimming)
Warranty: 7 Years

Dimension:

Diameter: ø180mm
Cut Out: ø157mm
Depth: 90mm

24v DC Power Source LED Driver 30w TRIAC Dimmable

$164.84

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 30w
Output Type: PWM Output
Output Connector: Screw Terminals
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP20
Warranty: 5 Years

Dimensions:

Length: 155mm
Width: 54mm
Height: 20mm

24v DC Power Source LED Driver 75w TRIAC Dimmable

$303.44

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 75w
Output Type: PWM Output
Output Connector: Screw Terminals
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP20
Warranty: 5 Years

Dimensions:

Length: 180mm
Width: 60mm
Height: 35mm

24v DC 100w Power Source DALI Dimmable LED Driver - Flex and Plug

$379.04

Specifications:

Wattage: 100w
Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240vAC
Input Current: 1.2A / 100 VAC
Output Voltage: 24v
Output Current: 4.16A
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Dimming / Control Options: Dimmable
Control Options: DALI
Efficiency: 88.00%
Operating Temperature Range: -40 ~ +60ºC
IP Rating: IP66
Warranty: 5 Years

Dimension:

Length: 330mm
Width: 32mm
Height: 23mm

24v DC Power Source LED Driver 100w TRIAC Dimmable

$404.24

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 100w
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP66
Warranty: 5 Years

Dimensions:

Length: 230mm
Width: 70mm
Height: 43mm

24v DC Power Source LED Driver 150w TRIAC Dimmable

$479.84

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 150w
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP66
Warranty: 5 Years

Dimensions:

Length: 265mm
Width: 78mm
Height: 47mm

24v DC 60w Power Source DALI Dimmable LED Driver - Flex and Plug

$303.44

Specifications:

Wattage: 60w
Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240vAC
Input Current: 0.73A / 100v AC
Output Voltage: 24v
Output Current: 2.5A
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Dimming / Control Options: Dimmable
Control Options: DALI
Efficiency: 88.00%
Operating Temperature Range: -40 ~ +60ºC
IP Rating: IP66
Warranty: 5 Years

Dimension:

Length: 330mm
Width: 32mm
Height: 20mm

24v DC Power Source LED Driver 200w TRIAC Dimmable

$530.24

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 200w
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP66
Warranty: 5 Years

Dimensions:

Length: 265mm
Width: 78mm
Height: 47mm

24v DC Power Source LED Driver 300w TRIAC Dimmable

$706.64

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 300w
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP66
Warranty: 5 Years

Dimensions:

Length: 276mm
Width: 78mm
Height: 47mm

24v DC 30w Power Source DALI Dimmable LED Driver - Flex and Plug

$215.24

Specifications:

Wattage: 30w
Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240vAC
Input Current: 0.38A / 100VAC
Output Voltage: 24v
Output Current: 1.25A
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Dimming / Control Options: Dimmable
Control Options: DALI
Efficiency: 81.00%
Operating Temperature Range: -40 ~ +60ºC
IP Rating: IP66
Warranty: 5 Years

Dimension:

Length: 260mm
Width: 32mm
Height: 20mm

24v DC Power Source LED Driver 360w TRIAC Dimmable

$820.04

Specifications:

Input Type: 1M Flex & Plug
Input Voltage: 200 ~ 240v AC
Output Voltage: 24v
Rated Output Power: 360w
Output Type: PWM Output
Output Connector: 200mm cable
Dimming Function: Yes
Control Options: AC Phase Cut (Leading & Trailing Edge)
IP Rating: IP66
Warranty: 5 Years

Dimensions:

Length: 276mm
Width: 78mm
Height: 47mm

Acc. - AQD-400 UX8 RGBW Touch Panel Controller

$341.24

The UX8 is a stylish wall panel for controlling up to 4 RGBW receivers over RF and DMX512 signals. (Use with R4-5A/CC)

Specifications:

Model: AQD-400-RGB-UX8
Output Signal: RF 2.4Ghz / DMX512
Voltage: 5v DC / 0.5A - 1A (With Power Adapter)
Control Mode: RGBW / 4 Zones
Working Temp: -30C - 55C
Range: 30M (Location Dependant)
Modes: Single Colour / Colour Changing Programs
Warranty: 3 Years

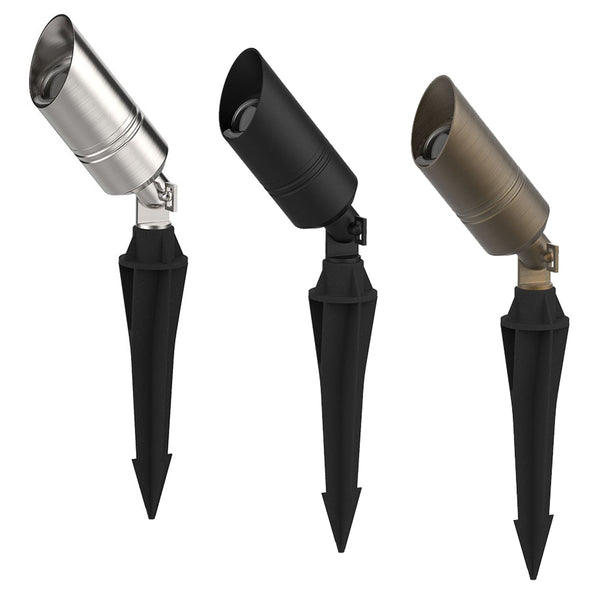

AQL-116 Lumena LED Spike Light Adjustable 2w Black, Bronze, Basalt, White

$366.44

The pencil-thin micro-sized adjustable Aluminium spike light is perfect for planter boxes and anywhere discrete that requires a spotlight with beam angle options. Tilt: 90°.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 2w
Colour Temperature: 2700k / 3000k / 5700k / Red / Green / Blue
Lumens: 80lm / 80lm / 80lm / 150lm
Beam Angle: Narrow (15°) – Medium (30°) – Wide (50°) – Flood (70°)
Voltage: 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Warranty: 7 Years

Dimension:

Width: 17mm
Height: 89mm
Length: 300mm
Spike Length: 210mm

Acc. - 40w LED Driver in 0-10v PWM Dimmable

$194.24

AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 1.67A

Specifications:

Material: Plastic
Output Power: 40w
Output Voltage: 24v
Output Current: 1.67a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimming Technology: 0-10V PWM Resistance
Warranty: 5 Years

Dimensions:

Length: 150mm
Width: 53mm
Height: 35mm

Acc. - 60w LED Driver in 0-10v PWM or DALI Dimmable

$202.64

AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 2.5A

Specifications:

Material: Plastic
Output Power: 60w
Output Voltage: 24v
Output Current: 2.5a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimming Technology: 0-10V PWM Resistance, DALI Push Button
Warranty: 5 Years

Dimensions:

Length: 150mm
Width: 53mm
Height: 35mm

Acc. - 90w LED Driver in 0-10v PWM or DALI Dimmable

$265.64

AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 3.75A

Specifications:

Material: Plastic
Output Power: 90w
Output Voltage: 24v
Output Current: 3.75a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimming Technology: 0-10V PWM Resistance, DALI Push Button
Warranty: 5 Years

Dimensions:

Length: 171mm
Width: 63mm
Height: 37.5mm

Acc. - 120w LED Driver in 0-10v PWM or DALI Dimmable

$303.44

AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 5A

Specifications:

Material: Plastic
Output Power: 120w
Output Voltage: 24v
Output Current: 5a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimming Technology: 0-10V PWM Resistance, DALI Push Button
Warranty: 5 Years

Dimensions:

Length: 191mm
Width: 63mm
Height: 37.5mm

Acc. - 200w LED Driver in 0-10v PWM or DALI Dimmable

$366.44

AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 8.3A

Specifications:

Material: Plastic
Output Power: 200w
Output Voltage: 24v
Output Current: 8.3a
Input Voltage: 100 - 305 110/230 universal input
IP Rating: IP67
Dimming Technology: 0-10V PWM Resistance, DALI Push Button
Warranty: 5 Years

Dimensions:

Length: 195mm
Width: 68mm
Height: 39.5mm

Acc. - 150mm, 300mm Extension Pole for AQL-455 ECO Spike / ø25mm

$15.74

Dimension:

Height: 150mm, 300mm
Diameter: ø25mm

Acc. - 24v DC LED Driver 320w Non Dimmable

$530.24

AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24Vdc at 13.34A; IP67; Cable output

Specifications:

Material: Metal
Output Power: 320w
Output Voltage: 24v
Output Current: 13.34a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimmable: No
Warranty: 5 Years

Dimensions:

Length: 252mm
Width: 90mm
Height: 43.8mm

Acc. - 24v DC LED Driver 480w Non Dimmable

$883.04

AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24VDC at 20A; Fixed CC/CV; IP67; Cable output

Specifications:

Material: Metal
Output Power: 480w
Output Voltage: 24v
Output Current: 20a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimmable: No
Warranty: 5 Years

Dimensions:

Length: 262mm
Width: 125mm
Height: 43.8mm

24v DC LED Driver 600w Non Dimmable

$1,261.04

AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC; Output 24Vdc at 25A; IP67; Io and Vo fixed

Specifications:

Material: Metal
Output Power: 600w
Output Voltage: 24v
Output Current: 25a
Input Voltage: 110/230 universal input 90 - 305
IP Rating: IP67
Dimmable: No
Warranty: 5 Years

Dimensions:

Length: 280mm
Width: 144mm
Height: 48.5mm

AQL-155 Lumena LED Deck Light 4w, 7w, 10w in White

$379.04

The AQL-155 is a compact, stylish recessed uplight suitable for many applications including wall-washing, feature highlighting and flora illumination.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: White
IP Rating: IP67
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Diameter: ø72mm
Depth: 65mm / 83mm
Cut Out: ø53mm

Wattage	Input Voltage	Dimming	Light Source	Beam Angle
4w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 300lm - 3000k / 300lm - 5700k / 320lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
7w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 550lm - 3000k / 550lm - 5700k / 600lm - Amber / 320lm - Blue / 160lm - Green / 420lm - Red / 280lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
10w	24v DC RGBW	4CH Low-Side PWM	- RGB+3000k / 555lm	- Asymmetric ~30° offset (A1)

AQL-155 Lumena LED Deck Light 4w, 7w, 10w in Basalt

$379.04

The AQL-155 is a compact, stylish recessed uplight suitable for many applications including wall-washing, feature highlighting and flora illumination.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Basalt
IP Rating: IP67
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Diameter: ø72mm
Depth: 65mm / 83mm
Cut Out: ø53mm

Wattage	Input Voltage	Dimming	Light Source	Beam Angle
4w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 300lm - 3000k / 300lm - 5700k / 320lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
7w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 550lm - 3000k / 550lm - 5700k / 600lm - Amber / 320lm - Blue / 160lm - Green / 420lm - Red / 280lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
10w	24v DC RGBW	4CH Low-Side PWM	- RGB+3000k / 555lm	- 10° - 25° - 40° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)

AQL-155 Lumena LED Deck Light 4w, 7w, 10w in Bronze

$379.04

The AQL-155 is a compact, stylish recessed uplight suitable for many applications including wall-washing, feature highlighting and flora illumination.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Bronze
IP Rating: IP67
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Diameter: ø72mm
Depth: 65mm / 83mm
Cut Out: ø53mm

Wattage	Input Voltage	Dimming	Light Source	Beam Angle
4w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 300lm - 3000k / 300lm - 5700k / 320lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
7w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 550lm - 3000k / 550lm - 5700k / 600lm - Amber / 320lm - Blue / 160lm - Green / 420lm - Red / 280lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
10w	24v DC RGBW	4CH Low-Side PWM	- RGB+3000k / 555lm	- 10° - 25° - 40° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)

AQL-155 Lumena LED Deck Light 4w, 7w, 10w in Black

$379.04

The AQL-155 is a compact, stylish recessed uplight suitable for many applications including wall-washing, feature highlighting and flora illumination.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black
IP Rating: IP67
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Diameter: ø72mm
Depth: 65mm / 83mm
Cut Out: ø53mm

Wattage	Input Voltage	Dimming	Light Source	Beam Angle
4w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 300lm - 3000k / 300lm - 5700k / 320lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
7w	12~24v AC / 24v DC	3-Wire 10V PWM	- 2700k / 550lm - 3000k / 550lm - 5700k / 600lm - Amber / 320lm - Blue / 160lm - Green / 420lm - Red / 280lm	- 10° - 25° - 40° - 55° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)
10w	24v DC RGBW	4CH Low-Side PWM	- RGB+3000k / 555lm	- 10° - 25° - 40° - Diffuse Frosted (DF) - Asymmetric ~30° offset (A1)

AQL-163 LED Grazing Light 90° in Black, Bronze, Basalt or White

$467.24

The AQL-163 is a compact, stylish recessed grazing light with 90° spread.

Specifications:

Colour: Black, Bronze, Basalt, White
Material: CNC Machined Aluminium
Wattage: 2w , 5w
Beam Angle: DF - Diffuse (Frosted)
IP Rating: IP67
Cable: 900mm Aqualux 2-Core Silicone / PTFE Cable
Warranty: 7 Years

Dimensions:

Diameter: ø72mm
Depth: 65mm / 83mm
CutOut: ø53mm

Control Gear	Wattage	Colour Temperature	Lumens	Beam Angle	Dimming
12~24v AC / 24v DC	2w	3000k		Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	5w	RGB+3000k	235lm	Diffuse (Clear)	3-wire PWM 10V Dimming

AQL-164 2-Way LED Grazing Light 2 x 90° in Black, Bronze or Basalt

$467.24

The AQL-164 is a compact, stylish recessed grazing light with two opposing 90° spread beams.

Specifications:

Colour: Black, Bronze, Basalt
Material: CNC Machined Aluminium
Wattage: 2w , 10w
Beam Angle: DF - Diffuse (Frosted), DC - Diffuse (Clear)
IP Rating: IP67
Cable: 900mm Aqualux 2-Core Silicone / PTFE Cable
Warranty: 7 Years

Dimensions:

Diameter: ø72mm
Depth: 65mm / 83mm
CutOut: ø53mm

Control Gear	Wattage	Colour Temperature	Lumens	Beam Angle	Dimming
12~24v AC / 24v DC	2w	3000k	200lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	5700k	200lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Amber	140lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Blue	080lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Green	200lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Red	140lm	Diffuse (Clear)	3-wire PWM 10V Dimming
24v DC RGBW	10w	RGB+3000k	470lm	Diffuse (Frosted)	4CH Low-Side PWM

AQL-165 2-Way LED Grazing Light 180° in Black, Bronze or Basalt

$492.44

The AQL-165 is a compact, stylish recessed grazing light with 180° spread.

Specifications:

Colour: Black, Bronze, Basalt
Material: CNC Machined Aluminium
Wattage: 2w , 10w
Beam Angle: DF - Diffuse (Frosted), DC - Diffuse (Clear)
IP Rating: IP67
Cable: 900mm Aqualux 2-Core Silicone / PTFE Cable
Options: RGBW option to be driven at 50% max total. Not rated for high-pressure cleaning.
Warranty: 7 Years

Dimensions:

Diameter: ø72mm
Depth: 65mm / 83mm
CutOut: ø53mm

Control Gear	Wattage	Colour Temperature	Lumens	Beam Angle	Dimming
12~24v AC / 24v DC	2w	3000k	200lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	5700k	200lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Amber	140lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Blue	080lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Green	200lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	2w	Red	140lm	Diffuse (Clear)	3-wire PWM 10V Dimming
24v DC RGBW	10w	RGB+3000k	470lm	Diffuse (Frosted)	4CH Low-Side PWM

AQL-154 Lumena LED Inground Low Glare Uplight 4w, 7w Black, Bronze, Basalt, White

$379.04

A new addition to the best-selling AQL-150 series of in-ground uplights, the AQL-154 features a deeply recessed light source for increased glare control and discrete illumination.

With the same CCT and LED options as the AQL-155 and a new set of optical options, the 154 is a complementary addition to the family intended to expand illumination design possibilities.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w, 7w
Colour Temperature: 2700k / 3000k / 5700k
Lumens: 300lm / 320lm / 550lm / 600lm
Voltage: 24v DC 3-Wire
Dimming: 3-Wire 10v PWM
Beam Angle: 15°, 30°
IP Rating: IP67
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Depth: 75mm
Diameter: ø60mm
Cut Out: ø44mm

AQL-132 Lumena LED Spike Uplight 20w Black, Bronze, Basalt, White

$706.64

High Powered spike uplight. 20w LED.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 20w
Colour Temperature: 3000k
Lumens: 2050lm
Voltage: 24v DC
Dimming: 3-wire PWM 10v
Beam Angle: 15°, 25°, 38°
IP Rating: IP67
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 500mm
Diameter: ø60mm

AQL-166 4-Way LED Grazing Light 360° in Black, Bronze, Basalt or White

$492.44

The AQL-166 is a compact, stylish recessed grazing light with 360° spread.

Specifications:

Colour: Black, Bronze, Basalt, White
Material: CNC Machined Aluminium
Wattage: 4w , 20w
Beam Angle: DF - Diffuse (Frosted), DC - Diffuse (Clear)
IP Rating: IP67
Cable: 900mm Aqualux 2-Core Silicone / PTFE Cable
Options: RGBW option to be driven at 50% max total. Not rated for high-pressure cleaning.
Warranty: 7 Years

Dimensions:

Diameter: ø72mm
Depth: 65mm / 83mm
CutOut: ø53mm

Control Gear	Wattage	Colour Temperature	Lumens	Beam Angle	Dimming
12~24v AC / 24v DC	4w	3000k	400lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	4w	5700k	400lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	4w	Amber	280lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	4w	Blue	160lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	4w	Green	400lm	Diffuse (Clear)	3-wire PWM 10V Dimming
12~24v AC / 24v DC	4w	Red	280lm	Diffuse (Clear)	3-wire PWM 10V Dimming
24v DC RGBW	20w	RGB+3000k	940lm	Diffuse (Frosted)	4CH Low-Side PWM

AQL-175 LED Puck Light 7w Black, Bronze, Basalt, White 2.7k, 3k, 4k, 5.7k CRI 90+ AQL-175-AX-X007 Aqualux Lighting

$328.64

The AQL-175 has been utilised in many applications including veranda downlighting, alcove uplighting and cabinet illumination to name a few.

Specifications:

Colour: Black, Bronze, Basalt, White
Material: CNC Machined Aluminium
Wattage: 7w
Colour Temperature: 2700k, 3000k, 4000k, 5700k
Lumens: 550lm, 600lm
Beam Angle: 10°, 25°, 40°, 55°, Diffuse (Frosted)
IP Rating: IP65
Control Gear: 24v DC 3-Wire
Dimming: 3-wire PWM 10V Dimming
CRI: 90
Cable: 500mm 3 Core Aqualux Cable
Warranty: 7 Years

Dimensions:

Diameter: ø80mm
Height: 33mm

AQL-135 Lumena LED Spike Bollard Light Large 4w Black, Bronze, Basalt, White

$731.84

The AQL-135 is a 600mm Mini-Bollard perfect for pathway & entrance way illumination. Durable ABS spike ensures good stability in many soil types.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 300lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Bollard Height: 608mm
Diameter: ø60mm
Spike Height: 212mm

AQL-130 Lumena LED Spike Bollard Light 4w Black, Bronze, Basalt, White

$656.24

The AQL-130 is a 300mm Mini-Bollard perfect for pathway & entrance way illumination. Durable ABS spike ensures good stability in many soil types.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 300lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Bollard Height: 305mm
Diameter: ø60mm
Spike Height: 215mm

AQL-125 Lumena LED Surface Mounted Path Light 4w Black, Bronze, Basalt, White

$656.24

The AQL-125 is a center mount version of the offset AQL-124, featuring a disc top for more modern settings. Available in spike and surface mount options.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 250lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 580mm
Width: 128mm

AQL-175 LED Puck Light 4w Black, Bronze, Basalt, White 2.7k, 3k, 4k, 5.7k CRI 90+ AQL-175-AX-X004 Aqualux Lighting

$328.64

The AQL-175 has been utilised in many applications including veranda downlighting, alcove uplighting and cabinet illumination to name a few.

Specifications:

Colour: Black, Bronze, Basalt, White
Material: CNC Machined Aluminium
Wattage: 4w
Colour Temperature: 2700k, 3000k, 4000k, 5700k
Lumens: 300lm, 320lm
Beam Angle: 10°, 25°, 40°, 55°, Diffuse (Frosted)
IP Rating: IP65
Control Gear: 24v DC 3-Wire
Dimming: 3-wire PWM 10V Dimming
CRI: 90
Cable: 500mm 3 Core Aqualux Cable
Warranty: 7 Years

Dimensions:

Diameter: ø80mm
Height: 33mm

AQL-125 Lumena LED Spike Path Light 4w Black, Bronze, Basalt, White

$580.64

The AQL-125 is a center mount version of the offset AQL-124, featuring a disc top for more modern settings. Available in spike and surface mount options.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 250lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 580mm
Width: 128mm

AQL-124 Lumena LED Surface Mounted Path Light 4w Black, Bronze, Basalt, White

$656.24

The AQL-124 is an offset disc pathlight, complementing the AQL-122 for more modern settings. Featuring the same output and distribution, it's an alternate style for less traditional settings.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 250lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 580mm
Width: 128mm

AQL-124 Lumena LED Spike Path Light 4w Black, Bronze, Basalt, White

$580.64

The AQL-124 is an offset disc pathlight, complementing the AQL-122 for more modern settings. Featuring the same output and distribution, it's an alternate style for less traditional settings.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 250lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 580mm
Width: 128mm

AQL-176 LED Puck Light 12w Black, Bronze, Basalt, White 3k CRI 90+ AQL-176-AX-B01230DFS Aqualux Lighting

$328.64

Specifications:

Colour: Black, Bronze, Basalt, White
Material: CNC Machined Aluminium
Wattage: 12w
Colour Temperature: 3000k
Lumens: 900lm
Beam Angle: Diffuse (Frosted)
IP Rating: IP67
Control Gear: 24v DC 3-Wire
Dimming: 3-wire PWM 10V Dimming
CRI: 90
Cable: 900mm Aqualux 2-Core Silicone / PTFE Cable
Warranty: 7 Years

Dimensions:

Diameter: ø90mm
Height: 30mm

AQL-123 Lumena LED Surface Mounted Path Light 4w Black, Bronze, Basalt, White

$706.64

The AQL-123 is a center mount version of our popular AQL-122 offset pathlight. Perfect for throwing light in a full circle to catch pathways and garden beds, the AQL-123 has the same overall output to pair with other products in the AQL-12X pathlight series.

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 250lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 580mm
Width: 128mm

AQL-195 LED Micro Deck Light 2w in Black, Bronze, Basalt or White

$190.04

The AQL-195 is a compact, stylish recessed 1.5W micro deck light with frost lens.

Specifications:

Colour: Black, Bronze, Basalt, White
Material: CNC Machined Aluminium
Wattage: 2w
Colour Temperature: 2700k, 3000k, 5700k, Blue, Green, Red
Lumens: 150lm, 080lm
Beam Angle: Diffuse (Frosted)
IP Rating: IP67
Control Gear: 24v DC 3-Wire
Dimming: 3-wire PWM 10V Dimming
CRI: 90
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimensions:

Diameter: ø42mm
Depth: 49mm

AQL-123 Lumena LED Spike Path Light 4w Black, Bronze, Basalt, White

$631.04

Specifications:

Family: Lumena
Material: CNC Machined Aluminium
Colour: Black, Bronze, Basalt, White
Wattage: 4w
Colour Temperature: 3000k
Lumens: 250lm
Voltage: 12~24v AC / 24v DC
Dimming: 3-Wire 10v PWM
IP Rating: IP65
Cable: 1M Aqualux PLUS QuickConnect
Warranty: 7 Years

Dimension:

Height: 580mm
Width: 128mm
