Gimble Downlights

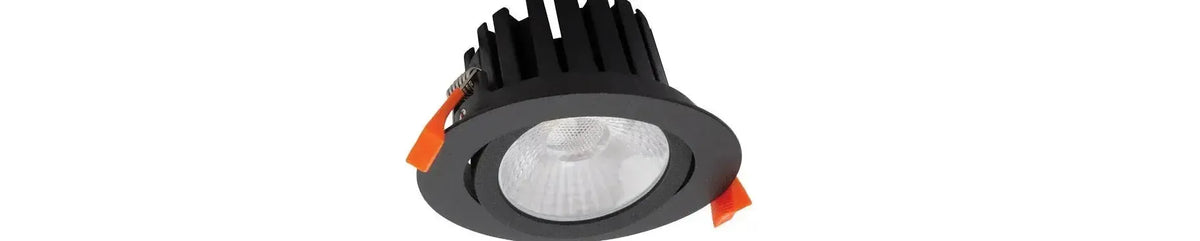

92mm LED Downlight 10w Black, Silver, White 2.7k/3k/4k/5k/Vivid CRI 90+ XDG10 Trend Lighting

$80.66

Product Type: LED Downlight

Description:

10 Watt adjustable LED downlight consisting of a single COB LED available in 2700k, 3000k, 4000k and 5000k colour temperature options in 90+ CRI or 2700k, 3000k and 4000k VIVID options. Large passive heatsink provides effective thermal management ensuring high output and long lifespan.

Specifications:

Input Voltage: 240v
System Power: 13.5w
Led Power: 10w
COB Lumens: 1390lm
Colour Rendering: 90+
IP Rating: IP20
Dimmable: Yes
Weight: 0.45kg

Dimension:

Height: 90mm
Diameter: ø104mm
Cut-Out: ø92mm
Tilt-Angle: 30°

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
10w	2700k	Black	1300Lm	Medium	90
10w	2700k	Silver	1300Lm	Medium	90
10w	2700k	White	1300Lm	Medium	90
10w	2700k	Black	1300Lm	Narrow	90
10w	2700k	Silver	1300Lm	Narrow	90
10w	2700k	White	1300Lm	Narrow	90
10w	2700k	Black	1300Lm	Wide	90
10w	2700k	Silver	1300Lm	Wide	90
10w	2700k	White	1300Lm	Wide	90
10w	3000k	Black	1335Lm	Medium	90
10w	3000k	Silver	1335Lm	Medium	90
10w	3000k	White	1335Lm	Medium	90
10w	3000k	Black	1335Lm	Narrow	90
10w	3000k	Silver	1335Lm	Narrow	90
10w	3000k	White	1335Lm	Narrow	90
10w	3000k	Black	1335Lm	Wide	90
10w	3000k	Silver	1335Lm	Wide	90
10w	3000k	White	1335Lm	Wide	90
10w	4000k	Black	1390Lm	Medium	90
10w	4000k	Silver	1390Lm	Medium	90
10w	4000k	White	1390Lm	Medium	90
10w	4000k	Black	1390Lm	Narrow	90
10w	4000k	Silver	1390Lm	Narrow	90
10w	4000k	White	1390Lm	Narrow	90
10w	4000k	Black	1390Lm	Wide	90
10w	4000k	Silver	1390Lm	Wide	90
10w	4000k	White	1390Lm	Wide	90
10w	5000k	Black	1410Lm	Medium	90
10w	5000k	Silver	1410Lm	Medium	90
10w	5000k	White	1410Lm	Medium	90
10w	5000k	Black	1410Lm	Narrow	90
10w	5000k	Silver	1410Lm	Narrow	90
10w	5000k	White	1410Lm	Narrow	90
10w	5000k	Black	1410Lm	Wide	90
10w	5000k	Silver	1410Lm	Wide	90
10w	5000k	White	1410Lm	Wide	90
10w	2700k	Black	1300Lm	Medium	VIVID
10w	2700k	Silver	1300Lm	Medium	VIVID
10w	2700k	White	1300Lm	Medium	VIVID
10w	2700k	Black	1300Lm	Narrow	VIVID
10w	2700k	Silver	1300Lm	Narrow	VIVID
10w	2700k	White	1300Lm	Narrow	VIVID
10w	2700k	Black	1300Lm	Wide	VIVID
10w	2700k	Silver	1300Lm	Wide	VIVID
10w	2700k	White	1300Lm	Wide	VIVID
10w	3000k	Black	1335Lm	Medium	VIVID
10w	3000k	Silver	1335Lm	Medium	VIVID
10w	3000k	White	1335Lm	Medium	VIVID
10w	3000k	Black	1335Lm	Narrow	VIVID
10w	3000k	Silver	1335Lm	Narrow	VIVID
10w	3000k	White	1335Lm	Narrow	VIVID
10w	3000k	Black	1335Lm	Wide	VIVID
10w	3000k	Silver	1335Lm	Wide	VIVID
10w	3000k	White	1335Lm	Wide	VIVID
10w	4000k	Black	1390Lm	Medium	VIVID
10w	4000k	Silver	1390Lm	Medium	VIVID
10w	4000k	White	1390Lm	Medium	VIVID
10w	4000k	Black	1390Lm	Narrow	VIVID
10w	4000k	Silver	1390Lm	Narrow	VIVID
10w	4000k	White	1390Lm	Narrow	VIVID
10w	4000k	Black	1390Lm	Wide	VIVID
10w	4000k	Silver	1390Lm	Wide	VIVID
10w	4000k	White	1390Lm	Wide	VIVID

92mm LED Downlight 10w Black, Silver, White 2.7k/3k/4k/5k/Vivid CRI 90+ XDC10 Trend Lighting

$80.66

Product Type: LED Downlight

Description:

10 Watt adjustable LED downlight consisting of a single Japanese made LED chip in 3000k, 4000k or 5000k colour temperature options. All colour temperatures have a high colour rendering index (CRI) of 90 and high COB lumen outputs of 1335lm (3000k), 1390lm (4000k) and 1410Lm (5000k). Large passive heatsink provides effective thermal management ensuring high output and long lifespan.

Specifications:

Input Voltage: 240v
System Power: 13.5w
Led Power: 10w
COB Lumens: 1390lm
Colour Rendering: 90+
IP Rating: IP20
Dimmable: Yes
Weight: 0.32kg

Dimension:

Height: 75mm
Diameter: ø104mm
Cut-Out: ø92mm
Tilt-Angle: 30°

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
10w	2700k	Black	1300lm	Medium	90
10w	2700k	Silver	1300lm	Medium	90
10w	2700k	White	1300lm	Medium	90
10w	2700k	Black	1300lm	Narrow	90
10w	2700k	Silver	1300lm	Narrow	90
10w	2700k	White	1300lm	Narrow	90
10w	2700k	Black	1300lm	Wide	90
10w	2700k	Silver	1300lm	Wide	90
10w	2700k	White	1300lm	Wide	90
10w	3000k	Black	1335lm	Medium	90
10w	3000k	Silver	1335lm	Medium	90
10w	3000k	White	1335lm	Medium	90
10w	3000k	Black	1335lm	Narrow	90
10w	3000k	Silver	1335lm	Narrow	90
10w	3000k	White	1335lm	Narrow	90
10w	3000k	Black	1335lm	Wide	90
10w	3000k	Silver	1335lm	Wide	90
10w	3000k	White	1335lm	Wide	90
10w	4000k	Black	1390lm	Medium	90
10w	4000k	Silver	1390lm	Medium	90
10w	4000k	White	1390lm	Medium	90
10w	4000k	Black	1390lm	Narrow	90
10w	4000k	Silver	1390lm	Narrow	90
10w	4000k	White	1390lm	Narrow	90
10w	4000k	Black	1390lm	Wide	90
10w	4000k	Silver	1390lm	Wide	90
10w	4000k	White	1390lm	Wide	90
10w	5000k	Black	1410lm	Medium	90
10w	5000k	Silver	1410lm	Medium	90
10w	5000k	White	1410lm	Medium	90
10w	5000k	Black	1410lm	Narrow	90
10w	5000k	Silver	1410lm	Narrow	90
10w	5000k	White	1410lm	Narrow	90
10w	5000k	Black	1410lm	Wide	90
10w	5000k	Silver	1410lm	Wide	90
10w	5000k	White	1410lm	Wide	90
10w	2700k	Black	1300lm	Medium	VIVID
10w	2700k	Silver	1300lm	Medium	VIVID
10w	2700k	White	1300lm	Medium	VIVID
10w	2700k	Black	1300lm	Narrow	VIVID
10w	2700k	Silver	1300lm	Narrow	VIVID
10w	2700k	White	1300lm	Narrow	VIVID
10w	2700k	Black	1300lm	Wide	VIVID
10w	2700k	Silver	1300lm	Wide	VIVID
10w	2700k	White	1300lm	Wide	VIVID
10w	3000k	Black	1335lm	Medium	VIVID
10w	3000k	Silver	1335lm	Medium	VIVID
10w	3000k	White	1335lm	Medium	VIVID
10w	3000k	Black	1335lm	Narrow	VIVID
10w	3000k	Silver	1335lm	Narrow	VIVID
10w	3000k	White	1335lm	Narrow	VIVID
10w	3000k	Black	1335lm	Wide	VIVID
10w	3000k	Silver	1335lm	Wide	VIVID
10w	3000k	White	1335lm	Wide	VIVID
10w	4000k	Black	1390lm	Medium	VIVID
10w	4000k	Silver	1390lm	Medium	VIVID
10w	4000k	White	1390lm	Medium	VIVID
10w	4000k	Black	1390lm	Narrow	VIVID
10w	4000k	Silver	1390lm	Narrow	VIVID
10w	4000k	White	1390lm	Narrow	VIVID
10w	4000k	Black	1390lm	Wide	VIVID
10w	4000k	Silver	1390lm	Wide	VIVID
10w	4000k	White	1390lm	Wide	VIVID

76mm LED Downlight 10w Black, Silver, White 2.7k/3k/4k/5k/Vivid CRI 90+ XDA10 Trend Lighting

$80.66

Product Type: LED Downlight

The miniled 10w downlight by Trend Lighting is the light chosen by experts in the lighting industry, this is down to its extremely high specs. If another brand was to tune there downlight to run at the specs below then it would burn out within a day. Trend only use the best components and assemble all of there downlights here in Sydney with the strictest quality control. The lumen output on this downlight is over 1300 which typically for the same wattage would be 800 or less, this means it is extremely efficient which is great for your pocket and the environment. Trend downlights are used by the biggest brands in Australia of the likes like Woolworths. Do yourself a favour and make the extra investment into a Trend downlight and you will be very impressed and glad you did, high-quality lighting is very underrated for what it can do for your mood and well being.

Description:

10 Watt adjustable LED downlight consisting of a single Japanese made LED chip in 3000k, 4000k or 5000k colour temperature options. All colour temperatures have a high colour rendering index (CRI) of 90 and high COB lumen outputs of 1335lm (3000k), 1390lm (4000k) and 1410lm (5000k). Large passive heatsink provides effective thermal management ensuring high output and long lifespan.

Specifications:

Input Voltage: 240v
System Power: 11.7w
Led Power: 10w
COB Lumens: 1390 lm
Colour Rendering: 90+
IP Rating: IP20
Weight: 0.25kg

Dimension:

Height: 75mm
Diameter: ø90mm
Cut-Out: ø76mm
Tilt-Angle: 15°

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
10w	2700k	Black	1300Lm	Medium	90
10w	2700k	Silver	1300Lm	Medium	90
10w	2700k	White	1300Lm	Medium	90
10w	2700k	Black	1300Lm	Narrow	90
10w	2700k	Silver	1300Lm	Narrow	90
10w	2700k	White	1300Lm	Narrow	90
10w	2700k	Black	1300Lm	Wide	90
10w	2700k	Silver	1300Lm	Wide	90
10w	2700k	White	1300Lm	Wide	90
10w	3000k	Black	1335Lm	Medium	90
10w	3000k	Silver	1335Lm	Medium	90
10w	3000k	White	1335Lm	Medium	90
10w	3000k	Black	1335Lm	Narrow	90
10w	3000k	Silver	1335Lm	Narrow	90
10w	3000k	White	1335Lm	Narrow	90
10w	3000k	Black	1335Lm	Wide	90
10w	3000k	Silver	1335Lm	Wide	90
10w	3000k	White	1335Lm	Wide	90
10w	4000k	Black	1390Lm	Medium	90
10w	4000k	Silver	1390Lm	Medium	90
10w	4000k	White	1390Lm	Medium	90
10w	4000k	Black	1390Lm	Narrow	90
10w	4000k	Silver	1390Lm	Narrow	90
10w	4000k	White	1390Lm	Narrow	90
10w	4000k	Black	1390Lm	Wide	90
10w	4000k	Silver	1390Lm	Wide	90
10w	4000k	White	1390Lm	Wide	90
10w	5000k	Black	1410Lm	Medium	90
10w	5000k	Silver	1410Lm	Medium	90
10w	5000k	White	1410Lm	Medium	90
10w	5000k	Black	1410Lm	Narrow	90
10w	5000k	Silver	1410Lm	Narrow	90
10w	5000k	White	1410Lm	Narrow	90
10w	5000k	Black	1410Lm	Wide	90
10w	5000k	Silver	1410Lm	Wide	90
10w	5000k	White	1410Lm	Wide	90
10w	2700k	Black	1080Lm	Medium	VIVID
10W	2700k	Silver	1080Lm	Medium	VIVID
10w	2700k	White	1080Lm	Medium	VIVID
10w	2700k	Black	1080Lm	Narrow	VIVID
10w	2700k	Silver	1080Lm	Narrow	VIVID
10w	2700k	White	1080Lm	Narrow	VIVID
10w	2700k	Black	1080Lm	Wide	VIVID
10w	2700k	Silver	1080Lm	Wide	VIVID
10w	2700k	White	1080Lm	Wide	VIVID
10w	3000k	Black	1120Lm	Medium	VIVID
10w	3000k	Silver	1120Lm	Medium	VIVID
10w	3000k	White	1120Lm	Medium	VIVID
10w	3000k	Black	1120Lm	Narrow	VIVID
10w	3000k	Silver	1120Lm	Narrow	VIVID
10w	3000k	White	1120Lm	Narrow	VIVID
10w	3000k	Black	1120Lm	Wide	VIVID
10w	3000k	Silver	1120Lm	Wide	VIVID
10w	3000k	White	1120Lm	Wide	VIVID
10w	4000k	Black	1150Lm	Medium	VIVID
10w	4000k	Silver	1150Lm	Medium	VIVID
10w	4000k	White	1150Lm	Medium	VIVID
10w	4000k	Black	1150Lm	Narrow	VIVID
10w	4000k	Silver	1150Lm	Narrow	VIVID
10w	4000k	White	1150Lm	Narrow	VIVID
10w	4000k	Black	1150Lm	Wide	VIVID
10w	4000k	Silver	1150Lm	Wide	VIVID
10w	4000k	White	1150Lm	Wide	VIVID

315x115mm LED Downlight 30w White 2.7k/3k/4k/5k/Vivid CRI 90+ XMA310 Trend Lighting

$268.23

Product Type: LED Downlight

Description:
3x10 Watt square LED downlight featuring 3 light engines, each with a single COB LED design available in 2700k, 3000k, 4000k and 5000k colour temperature options in 90+ CRI or 2700k, 3000k and 4000k VIVID options. Large passive heatsinks provide effective thermal management ensuring high output and long lifespan. The Miniled range is supplied with remote driver.

Specifications:

Input Voltage: 240v
System Power: 35.1w
Led Power: 30w
Colour Rendering: 90+
IP Rating: IP20
Tilt-Angle: 35 x 35°

Dimension:

Length: 335mm
Width: 130mm
Height: 95mm
Cut-Out: 315x115mm

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
3x10	2700K	Black	1300Lm	Medium	90
3x10	2700K	Silver	1300Lm	Medium	90
3x10	2700K	White	1300Lm	Medium	90
3x10	2700K	Black	1300Lm	Narrow	90
3x10	2700K	Silver	1300Lm	Narrow	90
3x10	2700K	White	1300Lm	Narrow	90
3x10	2700K	Black	1300Lm	Wide	90
3x10	2700K	Silver	1300Lm	Wide	90
3x10	2700K	White	1300Lm	Wide	90
3x10	3000K	Black	1335Lm	Medium	90
3x10	3000K	Silver	1335Lm	Medium	90
3x10	3000K	White	1335Lm	Medium	90
3x10	3000K	Black	1335Lm	Narrow	90
3x10	3000K	Silver	1335Lm	Narrow	90
3x10	3000K	White	1335Lm	Narrow	90
3x10	3000K	Black	1335Lm	Wide	90
3x10	3000K	Silver	1335Lm	Wide	90
3x10	3000K	White	1335Lm	Wide	90
3x10	4000K	Black	1390Lm	Medium	90
3x10	4000K	Silver	1390Lm	Medium	90
3x10	4000K	White	1390Lm	Medium	90
3x10	4000K	Black	1390Lm	Narrow	90
3x10	4000K	Silver	1390Lm	Narrow	90
3x10	4000K	White	1390Lm	Narrow	90
3x10	4000K	Black	1390Lm	Wide	90
3x10	4000K	Silver	1390Lm	Wide	90
3x10	4000K	White	1390Lm	Wide	90
3x10	5000K	Black	1410Lm	Medium	90
3x10	5000K	Silver	1410Lm	Medium	90
3x10	5000K	White	1410Lm	Medium	90
3x10	5000K	Black	1410Lm	Narrow	90
3x10	5000K	Silver	1410Lm	Narrow	90
3x10	5000K	White	1410Lm	Narrow	90
3x10	5000K	Black	1410Lm	Wide	90
3x10	5000K	Silver	1410Lm	Wide	90
3x10	5000K	White	1410Lm	Wide	90
3x10	2700K	Black	1300Lm	Medium	VIVID
3x10	2700K	Silver	1300Lm	Medium	VIVID
3x10	2700K	White	1300Lm	Medium	VIVID
3x10	2700K	Black	1300Lm	Narrow	VIVID
3x10	2700K	Silver	1300Lm	Narrow	VIVID
3x10	2700K	White	1300Lm	Narrow	VIVID
3x10	2700K	Black	1300Lm	Wide	VIVID
3x10	2700K	Silver	1300Lm	Wide	VIVID
3x10	2700K	White	1300Lm	Wide	VIVID
3x10	3000K	Black	1335Lm	Medium	VIVID
3x10	3000K	Silver	1335Lm	Medium	VIVID
3x10	3000K	White	1335Lm	Medium	VIVID
3x10	3000K	Black	1335Lm	Narrow	VIVID
3x10	3000K	Silver	1335Lm	Narrow	VIVID
3x10	3000K	White	1335Lm	Narrow	VIVID
3x10	3000K	Black	1335Lm	Wide	VIVID
3x10	3000K	Silver	1335Lm	Wide	VIVID
3x10	3000K	White	1335Lm	Wide	VIVID
3x10	4000K	Black	1390Lm	Medium	VIVID
3x10	4000K	Silver	1390Lm	Medium	VIVID
3x10	4000K	White	1390Lm	Medium	VIVID
3x10	4000K	Black	1390Lm	Narrow	VIVID
3x10	4000K	Silver	1390Lm	Narrow	VIVID
3x10	4000K	White	1390Lm	Narrow	VIVID
3x10	4000K	Black	1390Lm	Wide	VIVID
3x10	4000K	Silver	1390Lm	Wide	VIVID
3x10	4000K	White	1390Lm	Wide	VIVID

215mmx115mm LED Downlight 20w Black, Silver, White 2.7k/3k/4k/5k/Vivid CRI 90+ XMA210 Trend Lighting

$230.99

Product Type: LED Downligh

Description:

2x10 Watt square LED downlight featuring 2 x Japanese made LED's in 3000k, 4000k or 5000k colour temperature options with high colour rendering index (CRI) of 90 and high lumen outputs of 1335Lm (3000k), 1390Lm (4000k) and 1410Lm (5000k) each. Large passive heatsinks provide effective thermal management ensuring high output and long lifespan.

Specifications:

Input Voltage: 240v
System Power: 23.4w
Led Power: 2x 10w
COB Lumens: 2x 1390lm
Colour Rendering: 93+
IP Rating: IP20
Tilt-Angle: 35 x 35°

Dimension:

Length: 235mm
Width: 130mm
Height: 95mm
Cut-Out: 215mmx115mm
Weight: 0.45kg

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
2x 10w	2700k	Black	2 x 1300lm	Medium	90+
2x 10w	2700k	Silver	2 x 1300lm	Medium	90+
2x 10w	2700k	White	2 x 1300lm	Medium	90+
2x 10w	2700k	Black	2 x 1300lm	Narrow	90+
2x 10w	2700k	Silver	2 x 1300lm	Narrow	90+
2x 10w	2700k	White	2 x 1300lm	Narrow	90+
2x 10w	2700k	Black	2 x 1300lm	Wide	90+
2x 10w	2700k	Silver	2 x 1300lm	Wide	90+
2x 10w	2700k	White	2 x 1300lm	Wide	90+
2x 10w	3000k	Black	2 x 1335lm	Medium	90+
2x 10w	3000k	Silver	2 x 1335lm	Medium	90+
2x 10w	3000k	White	2 x 1335lm	Medium	90+
2x 10w	3000k	Black	2 x 1335lm	Narrow	90+
2x 10w	3000k	Silver	2 x 1335lm	Narrow	90+
2x 10w	3000k	White	2 x 1335lm	Narrow	90+
2x 10w	3000k	Black	2 x 1335lm	Wide	90+
2x 10w	3000k	Silver	2 x 1335lm	Wide	90+
2x 10w	3000k	White	2 x 1335lm	Wide	90+
2x 10w	4000k	Black	2 x 1390lm	Medium	90+
2x 10w	4000k	Silver	2 x 1390lm	Medium	90+
2x 10w	4000k	White	2 x 1390lm	Medium	90+
2x 10w	4000k	Black	2 x 1390lm	Narrow	90+
2x 10w	4000k	Silver	2 x 1390lm	Narrow	90+
2x 10w	4000k	White	2 x 1390lm	Narrow	90+
2x 10w	4000k	Black	2 x 1390lm	Wide	90+
2x 10w	4000k	Silver	2 x 1390lm	Wide	90+
2x 10w	4000k	White	2 x 1390lm	Wide	90+
2x 10w	5000k	Black	2 x 1410lm	Medium	90+
2x 10w	5000k	Silver	2 x 1410lm	Medium	90+
2x 10w	5000k	White	2 x 1410lm	Medium	90+
2x 10w	5000k	Black	2 x 1410lm	Narrow	90+
2x 10w	5000k	Silver	2 x 1410lm	Narrow	90+
2x 10w	5000k	White	2 x 1410lm	Narrow	90+
2x 10w	5000k	Black	2 x 1410lm	Wide	90+
2x 10w	5000k	Silver	2 x 1410lm	Wide	90+
2x 10w	5000k	White	2 x 1410lm	Wide	90+
2x 10w	2700k	Black	2 x 1080lm	Medium	VIVID
2x 10w	2700k	Silver	2 x 1080lm	Medium	VIVID
2x 10w	2700k	White	2 x 1080lm	Medium	VIVID
2x 10w	2700k	Black	2 x 1080lm	Narrow	VIVID
2x 10w	2700k	Silver	2 x 1080lm	Narrow	VIVID
2x 10w	2700k	White	2 x 1080lm	Narrow	VIVID
2x 10w	2700k	Black	2 x 1080lm	Wide	VIVID
2x 10w	2700k	Silver	2 x 1080lm	Wide	VIVID
2x 10w	2700k	White	2 x 1080lm	Wide	VIVID
2x 10w	3000k	Black	2 x 1120lm	Medium	VIVID
2x 10w	3000k	Silver	2 x 1120lm	Medium	VIVID
2x 10w	3000k	White	2 x 1120lm	Medium	VIVID
2x 10w	3000k	Black	2 x 1120lm	Narrow	VIVID
2x 10w	3000k	Silver	2 x 1120lm	Narrow	VIVID
2x 10w	3000k	White	2 x 1120lm	Narrow	VIVID
2x 10w	3000k	Black	2 x 1120lm	Wide	VIVID
2x 10w	3000k	Silver	2 x 1120lm	Wide	VIVID
2x 10w	3000k	White	2 x 1120lm	Wide	VIVID
2x 10w	4000k	Black	2 x 1150lm	Medium	VIVID
2x 10w	4000k	Silver	2 x 1150lm	Medium	VIVID
2x 10w	4000k	White	2 x 1150lm	Medium	VIVID
2x 10w	4000k	Black	2 x 1150lm	Narrow	VIVID
2x 10w	4000k	Silver	2 x 1150lm	Narrow	VIVID
2x 10w	4000k	White	2 x 1150lm	Narrow	VIVID
2x 10w	4000k	Black	2 x 1150lm	Wide	VIVID
2x 10w	4000k	Silver	2 x 1150lm	Wide	VIVID
2x 10w	4000k	White	2 x 1150lm	Wide	VIVID

78mm LED Downlight 10w Black, Silver, White 2.7k/3k/4k/5k/Vivid CRI 90+ XDT10 Trend Lighting

$80.66

Product Type: LED Downlight

Description:

10 Watt adjustable LED downlight with deep conical housing and recessed light source for low glare. Single LED chip design available in 2700k, 3000k, 4000k and 5000k colour temperature options in 90+ CRI or 2700k, 3000k and 4000k VIVID options. Large passive heatsink provides effective thermal management ensuring high output and long lifespan.

Specifications:

Input Voltage: 240v
System Power: 13.5w
Led Power: 10w
COB Lumens: 1390 lm
Colour Rendering: 90+
IP Rating: IP20
Dimmable: Yes
Weight: 0.22kg

Dimension:

Diameter: ø90mm
Cut-Out: ø78mm
Height: 110mm

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
10W	2700K	Black	1300Lm	Medium	90
10W	2700K	Silver	1300Lm	Medium	90
10W	2700K	White	1300Lm	Medium	90
10W	2700K	Black	1300Lm	Narrow	90
10W	2700K	Silver	1300Lm	Narrow	90
10W	2700K	White	1300Lm	Narrow	90
10W	3000K	Black	1335Lm	Medium	90
10W	3000K	Silver	1335Lm	Medium	90
10W	3000K	White	1335Lm	Medium	90
10W	3000K	Black	1335Lm	Narrow	90
10W	3000K	Silver	1335Lm	Narrow	90
10W	3000K	White	1335Lm	Narrow	90
10W	4000K	Black	1390Lm	Medium	90
10W	4000K	Silver	1390Lm	Medium	90
10W	4000K	White	1390Lm	Medium	90
10W	4000K	Black	1390Lm	Narrow	90
10W	4000K	Silver	1390Lm	Narrow	90
10W	4000K	White	1390Lm	Narrow	90
10W	5000K	Black	1410Lm	Medium	90
10W	5000K	Silver	1410Lm	Medium	90
10W	5000K	White	1410Lm	Medium	90
10W	5000K	Black	1410Lm	Narrow	90
10W	5000K	Silver	1410Lm	Narrow	90
10W	5000K	White	1410Lm	Narrow	90
10W	2700K	Black	1300Lm	Medium	VIVID
10W	2700K	Silver	1300Lm	Medium	VIVID
10W	2700K	White	1300Lm	Medium	VIVID
10W	2700K	Black	1300Lm	Narrow	VIVID
10W	2700K	Silver	1300Lm	Narrow	VIVID
10W	2700K	White	1300Lm	Narrow	VIVID
10W	3000K	Black	1335Lm	Medium	VIVID
10W	3000K	Silver	1335Lm	Medium	VIVID
10W	3000K	White	1335Lm	Medium	VIVID
10W	3000K	Black	1335Lm	Narrow	VIVID
10W	3000K	Silver	1335Lm	Narrow	VIVID
10W	3000K	White	1335Lm	Narrow	VIVID
10W	4000K	Black	1390Lm	Medium	VIVID
10W	4000K	Silver	1390Lm	Medium	VIVID
10W	4000K	White	1390Lm	Medium	VIVID
10W	4000K	Black	1390Lm	Narrow	VIVID
10W	4000K	Silver	1390Lm	Narrow	VIVID
10W	4000K	White	1390Lm	Narrow	VIVID

89mm LED Downlight 10w Black, White 3k, 4k CRI 90+ XRD10 Trend Lighting

$152.58

Product Type: LED Downlight

Description:
Recessed LED downlight with adjustable 'pull-out' gimble design. manufactured with a single 10W LED with a high CRI of 90+ and high COB lumen outputs of 750Lm (3000K) and 780Lm (4000K). Fully adjustable design with 355° rotation and 90° tilt allowing for directional adjustment in a variety of lighting applications.

Specifications:

Input Voltage: 240v
System Power: 11.8w
Led Power: 10w
COB Lumens: 780lm
Colour Rendering: 90+
IP Rating: IP20
Cut-Out: 89mm
Tilt-Angle: 90°
Rotation: 355°
Weight: 550g

Dimension:

Diameter: ø106mm
Height: 102mm

Variant	Wattage	Colour Temp	Colour	Lumens	Beam Angle	CRI
Black - 3000K	10W	3000K	Black	960 lm	Medium	90
White - 3000K	10W	3000K	White	960 lm	Medium	90
Black - 4000K	10W	4000K	Black	1000 lm	Medium	90
White - 4000K	10W	4000K	White	1000 lm	Medium	90

78mm LED Downlight 9w Black, White 3k, 4k RDT8 Trend Lighting

$48.58

Product Type: LED Downlight

Description:

8.5 Watt residential LED downlight featuring a single LED COB in 3000k and 4000k colour temperature options with a high colour rendering index of 90+ and a high lumen output of 1050lm (4000k). Recessed reflector and LED make the Resiled an ideal replacement for existing low glare halogen downlights.

Specifications:

Input Voltage: 240v
System Power: 10.8w
Led Power: 8.5w
COB Lumens: 1050 lm
Colour Rendering: 90+
IP Rating: IP20
Dimmable: Yes
Weight: 350g

Dimension:

Height: 100mm
Diameter: ø90mm
Cut-Out: ø78mm
Tilt-Angle: 15°

Wattage	Colour Temp	Colour	Lumens	Beam Angle	CRI
8.5w	3000k	Black	1030lm	Medium	90
8.5w	3000k	White	1030lm	Medium	90
8.5w	4000k	Black	1050lm	Medium	90
8.5w	4000k	White	1050lm	Medium	90

76mm LED Downlight 8.5w Black, White 3k, 4k RDA8 Trend Lighting

$48.58

Product Type: LED Downlight

Description:

8.5 Watt residential LED downlight featuring a single LED COB in 3000k colour temperature with a high colour rendering index of 80+ and a high lumen output of 1050lm (4000k). Popular 76mm cut-out makes the Resiled an ideal replacement for existing halogen downlights.

Specifications:

Input Voltage: 240v
System Power: 10.8w
Led Power: 8.5w
Colour Rendering: 80+
IP Rating: IP20
Tilt-Angle: 15°
Weight: 0.22kg

Dimension:

Height: 75mm
Diameter: ø90mm
Cut-Out: ø76mm

Variant	Wattage	Colour Temp	Colour	Lumens	Beam Angle	CRI
Black - 3000k	8.5w	3000k	Black	1030lm	Wide	80
White - 3000k	8.5w	3000k	White	1030lm	Wide	80
Black - 4000k	8.5w	4000k	Black	1050lm	Wide	80
White - 4000k	8.5w	4000k	White	1050lm	Wide	80

92mm LED Downlight 9w Black, White 3k, 4k CRI 90+ RDC8 Trend Lighting

$44.10

Retrofit your existing fixtures with the sleek and energy-efficient Trend RDC8 8.5 Watt residential LED downlight featuring a single LED COB in 3000K colour temperature with a high colour rendering index of 90 plus, delivering 1050 lumens from an area just 104mm wide.

Product Type: LED Downlight

Description:

Trend RDC8 8.5 Watt residential LED downlight featuring a single LED COB in 3000K colour temperature with a high colour rendering index of 90+ and a high lumen output of 1050lm (4000k). Popular 92mm cut-out makes the Resiled RDC8 an ideal replacement for existing halogen downlights.

Specifications:

Input Voltage: 240v
System Power: 10.8w
Led Power: 8.5w
Colour Rendering: 90+
IP Rating: IP20
Weight: 280g
Dimmable: Yes
5 Year Warranty

Dimension:

Height: 70mm
Diameter: ø104mm
Cut-Out: ø92mm
Tilt-Angle: 30°

RDC84-WB-W, RDC83-WB-W, RDC83-WB-B, RDC84-WB-B

95mm Cutout Deco Tilt Round Trio - LED Downlight - 13w CCT White/Black

$53.90

Product Type: LED Downlight

This LED downlight by Domus Lighting is our best sold adjustable gimble downlight. The new style flush downlights are great for wide angle lighting outputs but if you wish to tilt like the old downlights then this matches the style perfectly. When you buy a Domus downlight you are buying a high quality fixture.

Features
The cost effective DECO range continues to expand as Domus Lighting introduces the DECO 13W Tilt version of its highly popular LED downlight.
Integrating a SMD2835 light source and a compact high-efficiency driver into a traditional CFL replacement, this particular item gives you the ability to direct the wide 90º beam angle - great for washing walls, highlighting paintings or focusing beams.
Fully dimmable with Domus dimmer series.

Now with TRIO, the added option of changing the colour temperature output of the downlight with a dip switch at the back of the fitting.

Specifications:

Product Family: Deco-TILT
Colour: White or Black
Colour Temperature: CCT (3000k-4000k-5700k)
Lumens: 800lm, 850lm, 900lm
Dimmable: Yes
Material: Aluminium
Beam Angle: 90°
IP Rating: IP44
Wattage: 13w
Application: Recessed
Warranty Period: 3 Years
Warranty Type: Replacement
IC-F Rated - Covered & Abutted

Dimensions

Diameter: ø110mm
Cut Out Diameter: ø95mm
Cut Out Depth: 41.5mm

92mm GU10 Downlight White CLADL24S CLA Lighting

$12.70

Product Type: LED Downlight

Description:
GU10 Gimbal Round Downlight Fittings in Satin Chrome

Product Features:
* Satin chrome
* Die cast aluminium fitting
* Globes not included
* Lamp holder reverted to frame
* GU10 lamp holder 90mm in length from frame

Warranty:
1 year warranty

Part No:
CLADL24S

Code	Description	Width	Cutout
CLADL24S	RND S/C GIMBAL	ø102mm	ø90mm

92mm GU10 Downlight White CLADL23WFP1.2M CLA Lighting

$13.65

Product Type: LED Downlight Frame Only

Description:
GU10 Fixed Round Downlight Fitting Frame Only in White w/ 1.2M Flex & Plug

Product Features:
* Finish Colour: White
* Material: Die cast aluminium fitting
* Globes Included: No
* Lamp holder riverted to frame
* GU10 lamp holder 100mm in length from frame

Warranty:
1 year warranty

Part No:
CLADL23WFP1.2M

Code	Description	Width	Cutout
CLADL23WFP1.2M	CLADL23W/1.2M F&P	ø82mm	ø70mm

90mm LED Downlight 5w White LDLB90-FIRE60 Superlux Lighting

$72.75

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:
- Fire rated to 60/60/60 minutes
- Engineered for fire safety and energy efficiency- sets the industry standard for halogen downlight safety
- Thermal cut-off and auto reset function for protection against misuse and overloading.
- 5watt LED bulb comparable to 35watt halogen downlight
- Reflector bulb designed to give uniform light spread with no hot spots or demarcation lines in light beam
- 263 lumens, CRI (RA) 82
- Beam angle 25º degree
- Integral driver for easy installation
- Aluminium die cast face
- Both lamp and downlight have heat sink technology for effective thermal management
- Tiltable to 40º and fully rotatable
- Downlight Classification = CA135
- Japanese manufactured LED
- 5 year transformer warranty
- Acoustic rating: for acoustic STC55 Ceilings space 1.6m minimum. For acoustic (RW) STC57 and 58, space 2.5m minimum.

Dimension:
- Cut 90mmØ hole
- Flange 105mmØ

Technical Data:
- MR16
- 5Watt LED MR16 Lamp Included
- Double Insulated

Model No.:
LDLB90-FIRE60

90mm LED Downlight 6w Black, Gold, Silver, White LDLB90 Superlux Lighting

$54.80

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

6watt LED bulb comparable to 35watt halogen downlight
Reflector bulb designed to give uniform light spread with no hot spots or demarcation lines in light beam
Warm White 2,900k, 480 lumens, CRI (RA)82
Beam angle 25º degree
Integral driver for easy installation
Aluminium die cast face
Both lamp and downlight have heat sink technology for effective thermal management
Tiltable to 40º and fully rotatable
Japanese manufactured LED
Acoustic rating: for acoustic STC55 Ceilings space 1.6m minimum. For acoustic (RW) STC57 and 58, space 2.5m minimum.
Available in Black, White, Satin Chrome or Gold
Cut 90mmØ hole
Flange 105mmØ
MR16
6Watt LED MR16 Lamp Included
Double Insulated
Downlight Classification = CA135
Dimmable: No

Model No.:

LDLB90-BL (Black)
LDLB90-GD (Gold)
LDLB90-SC (Satin Chrome)
LDLB90-WH (White)

90mm LED Downlight 10w White CCT TLAG34510WD Martec Lighting

$29.13

Product Type: LED Downlight

This downlight by Martec is the best value for a gimble downlight. Gimble downlights are the best for highlighting certain things light artworks or for raked ceilings.

Description:
The Tradetec Arte Gimble fitting can be completely covered by insulation and is an excellent luminaire for any household looking to take the step into energy and cost efficient lighting.

Technical Information:

5 year replacement warranty.
Die-cast aluminium construction.
Recessed low glare design.
100° Beam angle.
Dimmable down to 10% when using a Martec dimmer (MTD300VA).

Specifications:

Ordering Code: TLAG34510WD
Colour: Matt White
Power Wattage: 10w
Voltage: 220-240 50Hz
Material: Aluminium housing
Cut Out Size: Dia 90mm
Colour temperature: 3000k / 4000k / 5000k
Lumen: 850lm / 900lm / 990lm
IP Rating: IP44 (front only)
Beam Angle: 100º
CRI: Ra>80
Approximate lamp life: 50,000 hours @ Ta25°C
Dimmable: Yes
Flex and Plug: 1M flex and plug

Dimension:

Diameter: ø110mm
Height: 40.5mm
Cut Out: 90mm

170mm LED Downlight 25w White 5k, 20575 Domus Lighting

$104.20

Product Type: LED Downlight

Description:

The SCOOP-25 is the second in the line-up of single point COB adjustable LED down lights.

Features include satin white finished frame and glass diffuser. Light is provided from a single point COB high performing LED with a perfectly matched 60° optical reflector. The reflector behaves in much the same way as a standard metal halide fixture does with the favourable scallop styled illumination and directed point source.

Added benefits of up to 45° tilt function and fully mains dimmable LED driver makes this a perfect alternative to metal halide and CFL style down lights.

Specification:

Colour: White
Dimmable: Yes
Material: Aluminium
Beam Angle: 60°
IP Rating: IP20
Wattage: 25w
Colour Temperature: 5000k
Lumen Output: 1800lm
Application: Recessed
Warranty Period: 3 Year
Warranty Type: Replacement

Dimension:

Diameter: 180mm
Cut Out Diameter: 160-170mm
Cut Out Depth: 100mm

230mm x 130mm LED Downlight 48w in White, Silver 4k SRD48-TLT Superlux Lighting

$226.79

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

Commercial LED downlight
LED COB technology
Tiltable to 60 degrees

Specifications:

Material: Aluminium
Lamp Included: Yes
Lamp Holder Type: MR16
Air / Moisture Transfer: Closed
Technology Field: LED
Colour: White or Silver
Indoor/Outdoor: Indoor
Mounting Type: Ceiling,Recessed
Downlight Classification: CA135
Total Lumens: 4500lm
Colour Temp: 4000k
Power Supply: 230-240v
CRI: 80
Wattage: 48w
Beam Angle: 65°
Control Gear: Included

Dimension:

Flange Length: 250mm
Flange Width: 150mm
Hole Cut: 230mm x 130mm
Cavity Depth: 230mm
Side Clearance: 75mm

Order Code:

SRD48-TLT-WH - White
SRD48-TLT-SI - Silver

90mm LED Downlight 6w White, Gold, Satin Chrome 3k LDLB90S Superlux Lighting

$54.80

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

The LED Square Tiltable Downlights are an easy to install once piece module.
They have a 40° angular adjustment and are fully rotatable.
The fitting has a thermal cut-off protection with auto reset function that guards against installation faults or overlamping.
Acoustic rating: for acoustic (RW) STC 55 ceilings space 1.6m mnimum.
For acoustic STC 57 and 58, space 2.5m minimum.
These fittings are engineered for fire safety for your peace of mind - 30 minute fire rated.
5 year transformer warranty.

Specifications:

Lamp Included: Yes
Lamp Holder Type: MR16
Technology Field: LED Replaceable
Colour: White, Gold or Satin Chrome
Indoor/Outdoor: Indoor
Mounting Type: Ceiling
Downlight Classification: CA135
Total Lumens: 480lm
Colour Temp: 3000k
Power Supply: 230-240v | Double Insulated
CRI: 80
Wattage: 6w
Beam Angle: 38°
Control Gear: Included

Dimension:

Square Trim: 100mm x 100mm
Hole Cut Out: ø90mm
Cavity Depth: 210mm
Side Clearance: 50mm

Order Code:

LDLB90S-WH - White
LDLB90S-GD - Gold
LDLB90S-SC - Satin Chrome

70mm LED Downlight 50w White, Satin Chrome, Gold 3k CRI 90+ SVE-STLT Superlux Lighting

$25.50

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

Die Cast Construction
Dimmable for mood lighting
Pre-wired transformer saves time
Soft start for better lamp life
Patented CA-Coil, HIH lamp and Electronic transformer with lamp holder assembly with thermal cut off included

Specifications:

Lamp Included: Yes High Intensity Halogen 35W = 50W
Lamp Holder Type: MR16
Air/Moisture Transfer: Closed
Technology Field: Halogen, LED Replaceable
Colour: White, Satin Chrome or Gold
Indoor/Outdoor: Indoor
Mounting Type: Ceiling,Recessed
Downlight Classification: CA135
Total Lumens: 525lm
Colour Temp: 3000k
Power Supply: 230-240v
CRI: 100
Wattage: 50w Max
Beam Angle: 38°
Control Gear: Included

Dimension:

Square: 87mm
Hole Cut: Ø70mm
Cavity Depth: 180mm
Side Clearance: 100mm

Order Code:

SVE-STLT-WH - White
SVE-STLT-SC - Satin Chrome
SVE-STLT-GD - Gold

75mm LED Downlight 10w White, Satin Chrome 3k LDL75WW-WH, LDL75WW-SC Superlux Lighting

$56.69

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

Bridgelux brand LED technology
10Watt integrated LED reflector downlight
Traditional rearward aluminium heat-sinking
More light than a 50Watt halogen downlight
Beam angle 40º with reflected light out to an 80º angle
Supplied with integrated LED driver
Aluminium die cast face
Tiltable to 15º degrees
Glass protection lens over LED and reflector

Specifications:

Material: Aluminium
Lamp included: Yes
Air / Moisture Transfer: Closed
IP Rating: IP44
Technology field: LED
Colour: White or Satin Chrome
Indoor/Outdoor: Indoor
Mounting Type: Ceiling,Recessed
Total lumens: 775lm
Colour temp: 3,000k
Power supply: 230-240v
Dimmable: Yes
CRI: 83
Wattage: 10w
Beam angle: 40°
Control gear: Included

Dimension:

Flange size: 103mmØ
Hole cut: 75mm
Cavity depth: 200mm
Side clearance: 25mm

Order Code:

LDL75WW-WH - White
LDL75WW-SC - Satin Chrome

Pistol LED Downlight 25w Black, White 3k/4k/5k 206XX Domus Lighting

$76.40

Product Type: LED Downlight

Description:
The PISTOL-25 Series is a dimmable surface mounted adjustable downlight that can be adapted as a spotlight, great option for applications needing general and highlighting. Available in Black or White frame, and with the choice of Warm white, Neutral White or White colour temperature options. Compete with dimmable LED driver, backed by our three year replacement warranty.

Specification:

Input Voltage: 240v AC
IP Rating: IP20
LED type: COB
CRI: ≥80
Beam Angle: 60°
Lifespan (hrs): 50,000hrs

Wattage	Colour	Colour Temperature	Lumens	Diameter	Height	Dimmable
25w	Black	3000k	2040lm	ø85mm	210mm	Yes
25w	Black	4000k	2395lm	ø85mm	210mm	Yes
25w	Black	5000k	2750lm	ø85mm	210mm	Yes
25w	White	5000k	2750lm	ø85mm	210mm	Yes

Neo LED Downlight 10w Black, White 3k/4k/5k 211XX Domus Lighting

$67.99

Product Type: LED Downlight

Description:
The NEO-SM-TILT Series is a dimmable surface mounted LED downlight range that has a tilt function to offset the light at an angle of 25°. NEO-SM-TILT series is a great option for those looking for an alternative to recessed downlights, or for installations where recessing a hole is not possible. Available in Black or White frame, and with the choice of Warm White, Neutral White or White colour temperature options. Complete with dimmable LED driver. Backed by our Three Year Replacement Warranty.

Specification:

Input Voltage: 240v AC
Wattage: 10w
IP Rating: IP20
LED Type: COB
CRI: ≥80
Beam Angle: 60°
Tilt Angle: 25°
Lifespan (hrs): 50,000hrs

Order Code	Colour	Colour Temperature	Lumens	Height	Diameter	Dimmable
21115	Black	3000k	900lm	110mm	ø90mm	Yes
21118	Black	4000k	955lm	110mm	ø90mm	Yes
21121	Black	5000k	1010lm	110mm	ø90mm	Yes
21127	White	3000k	900lm	110mm	ø90mm	Yes
21130	White	4000k	955lm	110mm	ø90mm	Yes
21133	White	5000k	1010lm	110mm	ø90mm	Yes

Nella LED Downlight 7w Black, White CCT HV5812T-BLK, HV5812T-WHT Havit Lighting

$93.79

Product Type: LED Downlight

Features:

Surface mounted adjustable LED downlight
Aluminium powder coated black or white finish
60° beam angle
IP40
Input voltage: 240v AC
TRI Colour
Built-in 7w LED
3 Years replacement warranty

Specifications:

Name: Nella
Material: Aluminium
Colour: Black or White
Tilt: 20°
IP Rating (IP): IP40
Lamp Base: Built in TRI Colour LED
CRI: >80
Wiring: Parallel
Dimmable: Yes

Order Code	Colour	Colour Temp	Lumens	Input Voltage	Beam Angle	Included Globes	Diameter	Height	Dimmable
HV5812T-BLK	Black	3000k 4000k 5500k	560lm 595lm 630lm	240v AC	60°	Built in 7w LED	ø75mm	90mm	Yes
HV5812T-WHT	White	3000k 4000k 5500k	560lm 595lm 630lm	240v AC	60°	Built in 7w LED	ø75mm	90mm	Yes

Superseded from codes: HV5812W-BLK, HV5812C-BLK, HV5812W-WHT, HV5812C-WHT

Nella LED Downlight 12w Black, White CCT HV5813T-BLK, HV5813T-WHT Havit Lighting

$123.93

Product Type: LED Downlight

Features:

Surface mounted adjustable LED downlight
Aluminium powder coated black or white finish
60° beam angle
IP40
Input voltage: 240v AC
TRI Colour
Built-in 12w LED
3 Years replacement warranty

Specifications:

Name: Nella
Material: Aluminium
Colour: Black or White
Tilt: 20°
IP Rating (IP): IP40
Lamp Base: Built in TRI Colour LED
CRI: >80
Wiring: Parallel
Dimmable: Yes

Order Code	Colour	Colour Temp	Lumens	Input Voltage	Beam Angle	Included Globes	Dimension (øxH)	Dimmable
HV5813T-BLK	Black	3000k 4000k 5500k	960lm 1020lm 1080lm	240v AC	60°	Built in 12w LED	ø90mm x 120mm	Yes
HV5813T-WHT	White	3000k 4000k 5500k	960lm 1020lm 1080lm	240v AC	60°	Built in 12w LED	ø90mm x 120mm	Yes

Superseded from codes: HV5813C-BLK, HV5813W-BLK, HV5813C-WHT, HV5813W-WHT

Nella LED Downlight 18w Black, White CCT HV5815T-BLK, HV5815T-WHT Havit Lighting

$168.11

Product Type: LED Downlight

Features:

Surface mounted adjustable LED downlight
Aluminium powder coated black or white finish
60° beam angle
IP40
Input voltage: 240v AC
TRI Colour
Built-in 18w LED
3 Years replacement warranty

Specifications:

Name: Nella
Material: Aluminium
Colour: Black or White
Tilt: 20°
IP Rating (IP): IP40
Lamp Base: Built in TRI Colour LED
CRI: >80
Wiring: Parallel
Dimmable: Yes

Order Code	Colour	Colour Temp	Lumens	Input Voltage	Beam Angle	Included Globes	Dimension (øxH)	Dimmable
HV5815T-BLK	Black	3000k 4000k 5500k	1440lm 1540lm 1620lm	240v AC	60°	Built in 18w LED	ø115mm x 150mm	Yes
HV5815T-WHT	White	3000k 4000k 5500k	1440lm 1540lm 1620lm	240v AC	60°	Built in 18w LED	ø115mm x 150mm	Yes

Superseded from codes: HV5815W-BLK, HV5815C-BLK, HV5815W-WHT, HV5815C-WHT

90mm LED Downlight Kit White 2000260 Haneco

$11.54

Description:

Retrofit recessed downlight kit with gimbal feature, white finish & aluminium frame. This is great to match your traditional MR16 or GU10 halogen recessed downlights.

You have 3 purchase options:

Frame only

Frame + MR16 Tails

Frame with GU10 tails

Specifications:

Finish: White
Material: Aluminium frame
Face Diameter: 100mm
Cutout Diameter: 90mm
Frame Shape: Round
Frame Type: Adjustable Gimbal

Order Code:

2000260 - Round White (HHG108A)

90mm LED Downlight 10w White, Black and Silver CCT COMET01 / COMET02 / COMET03 / COMET04 CLA Lighting

$48.35

Product Type: LED Downlight

Product Features:
• Input voltage range: 185-265v AC 50/60Hz
• Constant current LED driver included
• Material: aluminium body & PMMA lens
• Heatsink: aluminium
• LED chips: 1pc COB LED
• Power factor: ≥0.9
• Ambient temp: -20 to 40°C
• Flex & plug: COMET01&03: 1640mm; COMET02&04: 1460mm
• Suitable for 2-way switching
• Suitable for dimming
• Suitable for 3 wire motion & microwave sensors
• IP rating: IP20
• IC-4 & IC-F rated

Warranty:
3 year commercial & 5 year domestic

Recommended Dimmers:
• CLA Trailing Edge - LYNX, VELA
• Diginet - MEDM, MMDM/RT
• Clipsal Universal - 32ELEDM-WE, 32E450TM, 32E450LM, 32E450UDM & 31E2PUDM
• HPM Trailing Edge - CAT250L, CAT250T & CAT400T

Order Code	Description	Colour	Wattage	Colour Temperature (CCT)	Lumens	CRI	Beam Angle	Diameter	Depth	Cut Out	Dimmable
COMET01	D/L LED DIMM C/TILT MATT BL RND LOW GLARE TRI	Matt Black	10w	3000k 4200k 6000k	750lm 850lm 800lm	80	50°	ø100mm	107mm	ø90mm	Yes
COMET02	D/L LED DIMM C/TILT MATT BRUSHED NICKEL TRI	Matt Brushed Nickel	10w	3000k 4200k 6000k	750lm 850lm 800lm	80	50°	ø100mm	85mm	ø70-90mm	Yes
COMET03	D/L LED DIMM C/TILT MATT WH RND LOW GLARE TRI	Matt White	10w	3000k 4200k 6000k	750lm 850lm 800lm	80	50°	ø100mm	107mm	ø90mm	Yes
COMET04	D/L LED DIMM C/TILT MATT WH RND TRI	Matt White	10w	3000k 4200k 6000k	750lm 850lm 800lm	80	50°	ø100mm	85mm	ø70-90mm	Yes

Nella LED Downlight 12w Black, White CCT HV5823T Havit Lighting

$210.38

Product Type: LED Downlight

Features:

Surface mounted rotatable LED downlight
Aluminium powder coated black or white finish
60° beam angle
TRI Colour
IP54
Input voltage: 240v AC
Built in 12w LED
3 Years replacement warranty

Specifications:

Name: Nella
Material: Aluminium
IP Rating (IP): IP54
CRI: >80
Wiring: Parallel
Dimmable: Yes

Order Code	Colour	Colour Temp	Lumens	Input Voltage	Beam Angle	Included Globes	Diameter	Height
HV5823T-BLK	Black	3000k 4000k 5500k	960lm 1020lm 1080lm	240v AC	36°	Built in 12w LED	ø70mm	170mm
HV5823T-WHT	White	3000k 4000k 5500k	960lm 1020lm 1080lm	240v AC	36°	Built in 12w LED	ø70mm	170mm

Nella LED Downlight 7w Black, White CCT HV5822T Havit Lighting

$146.90

Product Type: LED Downlight

Features:

Surface mounted rotatable LED downlight
Aluminium powder coated black or white finish
60° beam angle
TRI Colour
IP54
Input voltage: 240v AC
Built in 7w LED
3 Years replacement warranty

Specifications:

Name: Nella
Material: Aluminium
IP Rating (IP): IP54
CRI: >80
Wiring: Parallel
Dimmable: Yes

Order Code	Colour	Colour Temp	Lumens	Input Voltage	Beam Angle	Included Globes	Dimension (øxH)
HV5822T-BLK	Black	3000k 4000k 5500k	570lm 600lm 630lm	240v AC	60°	Built in 7w LED	ø55mm x 162mm
HV5822T-WHT	White	3000k 4000k 5500k	570lm 600lm 630lm	240v AC	60°	Built in 7w LED	ø55mm x 162mm

92mm LED Downlight 10w Black, White 2.7k/3k/4k P12G Trend Lighting

$133.14

Product Type: LED Downlight

The platinum series by Trend Lighting is a brand new range which is the same as there already impressive models except they now use much higher quality components which means the downlight can run at an even higher performance, trends downlights are already the best sold in Australia and now they are taking them to another level with the platinum series. The P12G has a CRI of 94 which means all colours show under this downlight will have the most vibrant and rich colours. We have on display in our showroom showing the difference between a standard downlight of CRI 80 and trends high 90+ CRI levels over 2 separate fruit bowls, this you can see first hand the unbelievably difference between the colour richness.

Description:
Architectural design, remarkable efficiency and class leading light performance are the typical traits that make the Platinum P12G the ultimate downlight.

Specification:

Colour: Black | White
Wattage: 10w
Power Consumption: 11.9 W Typical
Nominal Voltage: 240 V AC 50/60 Hz
Voltage Range: 220 - 265 V AC
Power Factor: >0.93
Circuit Protection OVP | OCP | OTP
Dimming: Leading & Trailing Edge (to 10%) DALI Optional
CCT: 2700K | 3000K | 4000K
Lumens: 1104lm | 1144lm | 1216lm
CRI: 94+
Efficacy: ≥ 101 lm/w
Colour Deviation: SDCM ≤ 3
Lifetime > 60,000hrs (L80 B10)
Beam Angle 20° | 38° | 60°
Ingress Protection: IP20
Operating Temperature: -25° to 60°C
Warranty: 5 Years

Dimension:

Height: 90mm
Diameter: ø104mm
Cut Out: ø92mm
Tilt Angle: 30°

Variant	Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
Black -2700k	10w	2700k	Black	1104lm	20°	94
Black - 2700k	10w	2700k	Black	1104lm	38°	94
Black - 2700k	10w	2700k	Black	1104lm	60°	94
Black - 3000K	10w	3000K	Black	1144lm	20°	94
Black - 3000K	10w	3000K	Black	1144lm	38°	94
Black - 3000K	10w	3000K	Black	1144lm	60°	94
Black - 4000K	10w	4000K	Black	1216lm	20°	94
Black - 4000K	10w	4000K	Black	1216lm	38°	94
Black - 4000K	10w	4000K	Black	1216lm	60°	94
White - 2700k	10w	2700k	White	1104lm	20°	94
White - 2700k	10w	2700k	White	1104lm	38°	94
White - 2700k	10w	2700k	White	1104lm	60°	94
White - 3000K	10w	3000K	White	1144lm	20°	94
White - 3000K	10w	3000K	White	1144lm	38°	94
White - 3000K	10w	3000K	White	1144lm	60°	94
White - 4000K	10w	4000K	White	1216lm	20°	94
White - 4000K	10w	4000K	White	1216lm	38°	94
White - 4000K	10w	4000K	White	1216lm	60°	94

90mm LED Downlight 10w Black, White CCT 20454 Brilliant Lighting

$44.11

Product Type: LED Downlight

Description:
Generates a clear, crisp light using an efficient and high powered C.O.B (chip on board) LED. Featuring unique diamond lens optics to minimise multiple shadows.

Features:
• CCT Switchable between Warm White (3000K), Cool White (4200K) & Daylight (6500K).
• Light be abutted against and/or covered with thermal building insulation (not including driver)
• Gimbal head downlight.
• Diecast aluminium construction.
• White or black powdercoated finish.
• COB LED technology for superior light output.
• External dimmable LED driver.
• Flex & plug (Total length 1.0m).
• Long lasting up to 30,000 hours¹.
• Cut-out 90mm.
• Voltage: 240v
• 5 Year Warranty

Application:
All interior residential rooms

Colour	Wattage	Colour Temperature	Lumens	Beam Angle	CRI	Power Factor	Dimmable	Diameter	Height	Cut Out
White	10w	3000k/4200k/6500k	750lm/860lm/880lm	50°	>80	0.80	Yes	ø100mm	107mm	ø90mm
Black	10w	3000k/4200k/6500k	700lm/800lm/820lm	50°	>80	0.80	Yes	ø100mm	107mm	ø90mm

Darklighter LED Downlight 50w White 3k SVE-SDL-WH Superlux Lighting

$32.12

Product Type: LED Downlight

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

Pre-wired transformer saves time
Soft start for better lamp life
Patented CA-Coil, HIH lamp and Electronic transformer with lamp holder assembly with thermal cut off included

Specifications:

Lamp included: Yes
High Intensity Halogen 35w = 50w
Lamp holder type: MR16
Air / Moisture Transfer: Closed
Colour: White
Total lumens: 525lm
Colour temp: 3000K Warm White
Power supply: 230-240v
CRI:100
Wattage:50 Max
Beam angle:38
Control gear: Included

Dimensions:

95mm square
Cavity depth: 200mm

Order Code:

SVE-SDL-WH - White

90mm LED Downlight 12w Black, White CCT CRI 90+ HV5512T Havit Lighting

$65.24

Product Type: LED Downlight

Description:

PRIME Tilt LED downlight
Aluminium matt black or white finish
Supplied with dimmable LED driver complete with flex & plug
45° beam angle
20° tilt
CRI ≥ 90
90mm cutout
IP rating: IP54
IC-4 Rated (Fitting only)
Input voltage: 240v AC
TRI Colour
Built in 12w LED
3 Years replacement warranty

Order Code	Colour	Colour Temperature	Lumens
HV5512T-WHT HV5512T-BLK	White Black	3000k 4000K 5500K	980lm 990lm 1000lm

Superseded from codes: HV5512C-WHT, HV5512W-WHT, HV5512C-BLK, HV5512W-BLK

93mm LED Downlight 10w White CCT 20203/05 Brilliant Lighting

$73.53

Product Type: LED Downlight

Description:
The ultimate project downlight to replace 50W MR16 systems. Producing high lumens using precision optics and a high output C.O.B (chip on board) LED. Providing a stylish, yet budget conscious solution.

Features:

CCT Switchable between Warm White (3000K), Cool White (4200K) & Daylight (6500K).
Rated for IC-4 Abutted and Covered usage to allow for covering with thermal insulation.
Gimbal head downlight.
Diecast aluminium construction.
White powder coated finish.
COB LED technology for superior light output.
External dimmable LED driver.
Flex & plug (Total length 1m).
Long lasting up to 30,000 hours
Cut-out 70-93mm.
3 Year Warranty.

Specifications:

Colour: White
Wattage: 10w
Voltage: 240v
Beam Angle: 50°
Globe Type: COB LED
Colour Temperature: Colour Changing: 3000K, 4200K or 6500K
Lumens: 800lm, 900lm, 880lm
CRI: >80
Power Factor: 0.9
Height: 85mm
Diameter: ø100mm
Life Span (Approximately): 30,000 hrs
Warranty: 3 Years

120mm LED Downlight 26w Black, Silver, White 3k/4k/5k CRI 90+ XDM26 Trend Lighting

$237.13

Product Type: LED Downlight

Description:

LED downlight consisting of a single 26W Japanese made LED with wide beam angle. Sealed face with a silicone gasket for added protection. High Colour rendering index (CRI) of 90 and high COB lumen outputs of 3035Lm (3000K), 3170Lm (4000K) and 3205Lm (5000K). Anodized black heatsink for effective thermal management ensuring high output and long lifespan.

Available in Wide and Narrow beam angles.
240V Dimming available with Phillips Xitanium LED Driver

Specifications:

Input Voltage 240v
System Power 31w
Led Power 26w
COB Lumens 3170 lm
Colour Rendering 90+
IP Rating IP44
Cut-Out 120mm
Tilt-Angle 40°
Weight 1200g

Dimension:

120mmH x 150mmØ

Variant	Wattage	Colour Temp	Colour	Lumens	Beam Angle	CRI
Black - 3000K	26W	3000K	Black	2300Lm	Medium	90
Silver - 3000K	26W	3000K	Silver	2300Lm	Medium	90
White - 3000K	26W	3000K	White	2300Lm	Medium	90
Black - 3000K	26W	3000K	Black	2300Lm	Narrow	90
Silver - 3000K	26W	3000K	Silver	2300Lm	Narrow	90
White - 3000K	26W	3000K	White	2300Lm	Narrow	90
Black - 3000K	26W	3000K	Black	2300Lm	Wide	90
Silver -3000K	26W	3000K	Silver	2300Lm	Wide	90
White - 3000K	26W	3000K	White	2300Lm	Wide	90
Black - 4000K	26W	4000K	Black	2450Lm	Medium	90
Silver - 4000K	26W	4000K	Silver	2450Lm	Medium	90
White - 4000K	26W	4000K	White	2450Lm	Medium	90
Black - 4000K	26W	4000K	Black	2450Lm	Narrow	90
Silver - 4000K	26W	4000K	Silver	2450Lm	Narrow	90
White - 4000K	26W	4000K	White	2450Lm	Narrow	90
Black - 4000K	26W	4000K	Black	2450Lm	Wide	90
Silver - 4000K	26W	4000K	Silver	2450Lm	Wide	90
White - 4000K	26W	4000K	White	2450Lm	Wide	90
Black - 5000K	26W	5000K	Black	2600Lm	Medium	90
Silver - 5000K	26W	5000K	Silver	2600Lm	Medium	90
White - 5000K	26W	5000K	White	2600Lm	Medium	90
Black - 5000K	26W	5000K	Black	2600Lm	Narrow	90
Silver - 5000K	26W	5000K	Silver	2600Lm	Narrow	90
White - 5000K	26W	5000K	White	2600Lm	Narrow	90
Black - 5000K	26W	5000K	Black	2600Lm	Wide	90
Silver - 5000K	26W	5000K	Silver	2600Lm	Wide	90
White - 5000K	26W	5000K	White	2600Lm	Wide	90

143mm LED Downlight 26w Black, Silver, White 3k/4k/5k CRI 90+ XRS26 Trend Lighting

$274.06

Product Type: LED Downlight

Description:

Recessed LED downlight with adjustable 'pull-out' gimble. high output 26W Japanese made LED with a high colour rendering index (CRI) of 90 and COB lumen outputs of 2300Lm (3000K), 2450Lm (4000K) and 2600Lm(5000K). Anodized black heatsink provides effective thermal management ensuring high output and long lifespan. Supplied with remote electronic driver.

Features:

Positive Tilt-Adjustment
Pull out, tilt-adjustable face provides versatility in lighting applications enabling the XRS26 to provide illuminance on vertical surfaces.
With 355° rotation and 80° tilt-adjustment
The XRS26 allows for precise directional aiming of light

Specification:

Input Voltage: 240v
System Power: 31w
Led Power: 26w
COB Lumens: 2300Lm | 2450Lm | 2600Lm
Colour Rendering: 90+
IP Rating: IP20
Tilt-Angle: 80°
Rotation: 355°
Weight: 1.12kg

Dimension:

Diameter: 150mm
Length: 170mm
Overall Height: 125mm

Variant	Wattage	Colour Temp	Colour	Lumens	Beam Angle	CRI
Black - 3000K	26W	3000K	Black	2300Lm	Wide	90
Silver - 4000K	26W	3000K	Silver	2300Lm	Wide	90
White - 3000K	26W	3000K	White	2300Lm	Wide	90
Black - 4000K	26W	4000K	Black	2450Lm	Wide	90
Silver - 4000K	26W	4000K	Silver	2450Lm	Wide	90
White - 4000K	26W	4000K	White	2450Lm	Wide	90
Black - 5000K	26W	5000K	Black	2600Lm	Wide	90
Silver - 5000K	26W	5000K	Silver	2600Lm	Wide	90
White - 5000K	26W	5000K	White	2600Lm	Wide	90

92mm LED Downlight 10w Black, Silver, White 2.7k/3k/4k/5k/Vivid CRI 90+ XDI10 Trend Lighting

$80.66

Product Type: LED Downlight

Description:

10 Watt LED downlight with popular 92mm cut out for replacement of existing low voltage MR16 downlights. Single COB LED available in 2700k, 3000k, 4000k and 5000k colour temperature options in 90+ CRI or 2700k, 3000k and 4000k VIVID options. Large passive heatsink provides effective thermal management ensuring high output and long lifespan.

Specifications:

Input Voltage: 240v
System Power: 13.5w
Led Power: 10w
COB Lumens: 1390 lm
Colour Rendering: 90+
IP Rating: IP20
Tilt-Angle: 15°
Weight: 0.34kg

Dimensions:

Height: 93mm
Diameter: ø105mm
Cut-Out ø92mm

Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
10W	2700K	Black	1300Lm	Narrow	90
10W	2700K	Silver	1300Lm	Narrow	90
10W	2700K	White	1300Lm	Narrow	90
10W	3000K	Black	1335Lm	Narrow	90
10W	3000K	Silver	1335Lm	Narrow	90
10W	3000K	White	1335Lm	Narrow	90
10W	4000K	Black	1390Lm	Narrow	90
10W	4000K	Silver	1390Lm	Narrow	90
10W	4000K	White	1390Lm	Narrow	90
10W	5000K	Black	1410Lm	Narrow	90
10W	5000K	Silver	1410Lm	Narrow	90
10W	5000K	White	1410Lm	Narrow	90
10W	2700K	Black	1300Lm	Narrow	VIVID
10W	2700K	Silver	1300Lm	Narrow	VIVID
10W	2700K	White	1300Lm	Narrow	VIVID
10W	3000K	Black	1335Lm	Narrow	VIVID
10W	3000K	Silver	1335Lm	Narrow	VIVID
10W	3000K	White	1335Lm	Narrow	VIVID
10W	4000K	Black	1390Lm	Narrow	VIVID
10W	4000K	Silver	1390Lm	Narrow	VIVID
10W	4000K	White	1390Lm	Narrow	VIVID

90mm LED Downlight 6w Black, White CCT CRI 90+ HCP-81X20106 Havit Commercial

$0.00

Havit Commercial is a premium range and is not to have prices displayed online. Please hit the enquire for price button with quantities and products for your project and we will email you a personalised quotation.

Description:

Round Recessed LED downlight
Black/White Deep Tilt frame
Triac Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
90mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 6w LED
5 years replacement warranty

Dimensions:

Diameter: ø100mm
Height: 88mm
Cut Out: ø90mm

Order Code

Colour Temperature

Lumens

Dimming Type

HCP-81220106 - Black

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

HCP-81320106 - White

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

75mm LED Downlight 6w Black, White CCT CRI 90+ HCP-81XX0206 Havit Commercial

$0.00

Description:

Round Recessed LED downlight
Black/White Tilt frame
Triac Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
75mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 6w LED
5 years replacement warranty

Dimensions:

Diameter: ø85mm
Height: 72mm
Cut Out: ø75mm

Order Code

Colour Temperature

Lumens

Dimming Type

HCP-81220206 - Black

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

HCP-81320206 - White

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

90mm LED Downlight 6w Black, White CCT CRI 90+ HCP-81XX0506 Havit Commercial

$0.00

Description:

Round Recessed LED downlight
Black/White Tilt frame
Triac Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
90mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 6w LED
5 years replacement warranty

Dimensions:

Diameter: ø104mm
Height: 79mm
Cut Out: ø90mm

Order Code

Colour Temperature

Lumens

Dimming Type

HCP-81220506 - Black

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

HCP-81320506 - White

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

72mm LED Downlight 6w Black, White CCT CRI 90+ HCP-81XX0606 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
72mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 6w LED
5 years replacement warranty

Dimensions:

Diameter: ø90mm
Height: 64mm
Cut Out: ø72mm

Order Code

Colour Temperature

Lumens

Dimming Type

HCP-81220606 - Black

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

HCP-81320606 - White

2700k

3000k

4000k

5000k

5700k

274lm

279lm

300lm

318lm

325lm

Triac Dimmable

90mm LED Downlight 9w Black, White CCT CRI 90+ HCP-81XX0109 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable or Dali Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
90mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 9w LED
5 years replacement warranty

Dimensions:

Diameter: ø100mm
Height: 109mm
Cut Out: ø90mm

Order Code	Colour Temperature	Lumens	Dimming Type
HCP-81220109 - Black HCP-81240109 - Black	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable
HCP-81320109- White HCP-81340109 - White	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable

75mm LED Downlight 9w Black, White CCT CRI 90+ HCP-81XX0209 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable or Dali Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
75mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 9w LED
5 years replacement warranty

Dimensions:

Diameter: ø85mm
Height: 91mm
Cut Out: ø75mm

Order Code	Colour Temperature	Lumens	Dimming Type
HCP-81220209 - Black HCP-81240209 - Black	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable
HCP-81320209- White HCP-81340209 - White	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable

90mm LED Downlight 9w Black, White CCT CRI 90+ HCP-81XX0509 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable or Dali Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
90mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 9w LED
5 years replacement warranty

Dimensions:

Diameter: ø104mm
Height: 99mm
Cut Out: ø90mm

Order Code	Colour Temperature	Lumens	Dimming Type
HCP-81220509 - Black HCP-81240509 - Black	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable
HCP-81320509- White HCP-81340509 - White	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable

72mm LED Downlight 9w Black, White CCT CRI 90+ HCP-81XX0609 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable or Dali Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
72mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 9w LED
5 years replacement warranty

Dimensions:

Diameter: ø90mm
Height: 83mm
Cut Out: ø72mm

Order Code	Colour Temperature	Lumens	Dimming Type
HCP-81220609 - Black HCP-81240609 - Black	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable
HCP-81320609- White HCP-81340609 - White	2700k 3000k 4000k 5000k 5700k	647lm 653lm 734lm 750lm 769lm	Triac Dimmable Dali Dimmable

90mm LED Downlight 13w Black, White CCT CRI 90+ HCP-81XX0113 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable or Dali Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
90mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 13w LED
5 years replacement warranty

Dimensions:

Diameter: ø100mm
Height: 109mm
Cut Out: ø90mm

Order Code	Colour Temperature	Lumens	Dimming Type
HCP-81220113 - Black HCP-81240113 - Black	2700k 3000k 4000k 5000k 5700k	980lm 965lm 959lm 1072lm 1089lm	Triac Dimmable Dali Dimmable
HCP-81320113- White HCP-81340113 - White	2700k 3000k 4000k 5000k 5700k	980lm 965lm 959lm 1072lm 1089lm	Triac Dimmable Dali Dimmable

75mm LED Downlight 13w Black, White CCT CRI 90+ HCP-81XX0213 Havit Commercial

$0.00

Description:

Recessed LED downlight
Black/White Tilt frame
Triac Dimmable or Dali Dimmable
Five Colour Temperatures
Choose colour with switch on back of fitting
75mm Cut out
20° Tilt
60° Beam angle (Optional Reflectors available)
CRI> 90
IP Rating: IP44
Input voltage: 240v AC
Built in 13w LED
5 years replacement warranty

Dimensions:

Diameter: ø85mm
Height: 91mm
Cut Out: ø75mm

Order Code	Colour Temperature	Lumens	Dimming Type
HCP-81220213 - Black HCP-81240213 - Black	2700k 3000k 4000k 5000k 5700k	980lm 965lm 959lm 1072lm 1089lm	Triac Dimmable Dali Dimmable
HCP-81320213- White HCP-81340213 - White	2700k 3000k 4000k 5000k 5700k	980lm 965lm 959lm 1072lm 1089lm	Triac Dimmable Dali Dimmable
