LED Strip Dimmer

LEDsmart™ Push Button Two Way Switching Dimmer for LED Lighting Diginet - MMDM/PB

$78.74

Description:
The LEDsmart+ Push Button Dimmer features a built-in on/off switch and new MultiMate™ technology for built-in multi-way control which allows you to dim from multiple locations for the first time without the need for extra wires or an expensive control system.

Features:

Built-in multiway control.
Push and hold to dim up/down.
Built in Tap on / Tap off switch.
Fully programmable functions.
Quick flick dial feature to go to maximum or minimum lighting.
Double tap to dim to minimum or maximum over 30 minutes.
Illuminated bezel via white LED indicators.
Flush and rocker style button options.

Functions:

Single-way control
Two-way control
Multi-way control
Indicator - white LED
Integrated tap on /off switch
Programmable minimum and maximum
Programmable kick-start function
Programmable off-state indicator
Kids bedroom mode - double tap to dim down over 30 minutes
Wake up mode - double tap to dim up over 30 minutes

Specifications:

Rated average life: 5000hrs
Wattage: 400w
Operating Temperature (Max): 50
IP Rating: IP20
Line Voltage Frequency: 50Hz
Nominal Line Voltage: 220 - 240V AC
Connection Type: 2-Wire Active/Load
Incompatible Load Types: Ceiling Sweep Fan Motors
Indicator Colour: Black
Integrated On/Off Switch: No
Minimum Load: 2w
Programmable: Yes
Dimmable: Yes

Dimensions:

Length: 24mm
Width: 24mm
Height: 45mm

Order Code:
MMDM/PB

LED Downlight Push Button Dimmer with Mini Light Trailing Edge

$29.95

This Touch 2 in 1 DIMMER SWITCH is a top-quality choice for trade customers looking to upgrade their lighting control. This push button dimmer combines on/off switching and dimming control into a single mechanism, making it easy to use and highly efficient.

Smooth, linear dimming: The dimming performance of the Touch 2 in 1 DIMMER SWITCH is optimised to ensure a seamless, gradient-free transition between brightness levels.

No separate on/off switch needed: This dimmer has it all in one, so you don't need to worry about installing multiple switches or confusing your customers with multiple buttons.

Wide compatibility: The Touch 2 in 1 DIMMER SWITCH works with most downlights and lighting sources, including LED, so you can use it in a variety of settings and applications.

Maximum load of 350W: This dimmer can handle up to 350W of power, making it suitable for even the busiest and most demanding lighting systems.

Minimum load of 10W: With a minimum load of just 10W, the Touch 2 in 1 DIMMER SWITCH is also suitable for smaller, more nuanced lighting setups.

Soft start technology: This dimmer has a soft start feature that helps extend the life of your lamps by gradually increasing their brightness over time.

Australian standards compliant: The Touch 2 in 1 DIMMER SWITCH is approved to Australian standards AS/NZB, so you can trust its quality and reliability.

Features

Maximum Load: 350w
Minimum load: 10w
Operational Voltage: 220-240v
White Colour
Fits standard plates
Suitable for electronic transformers and LED drivers
Soft start for improved lamp life.
Compatible with most lighting sources including LED
2 wire design
One way operation

*Wall switch plate In image is not included

Diginet Dimmer LEDsmart™ Adaptive Phase Rotary Dimmer for LED Lighting MEDM - Diginet

$47.24

The Diginet MEDM Dimmer was the first dimmer that gave The Lighting Outlet confidence again to sell dimmers for LED products as the early stages of LED dimmers had continual problems, our electricians swear by the Diginet LED Smart Dimmer and will not muck around with anything else as it gets the job done headaches free. This LED dimmer, even dims some non-dimmable products, it's that good!

The Diginet MEDM Adaptive Phase Dimmer switch is designed in Australia to provide optimised dimming of LED-based lamps and drivers, this high quality, two-wire phase control wall plate dimmer has a minimum load rating of 2W, allowing it to adapt to a wide range of available LED drivers.

Although optimised for LED lighting loads, this LED smart dimmer also provides excellent compatibility with other common lamps types such as incandescent lamps, 12V halogen (dichroic) lamps /transformers and CFL’s.

Features:

Analogue rotary dial with hard stop at max and min
Green LED indicator
Green light is on when the lights are on, off when the lights are off
Min/Max brightness setting via mechanical adjustment
Soft start
Short circuit and thermal protection

Please note: MEDM dim only. They do not switch a light on/off.

Specifications:

Colour: Blue
Function: Rotary Dimmer
Indicator: Green LED
Mechanical set max or min: Yes
Electrical connections: 2-wire (Active and Load, no Neutral required)
Nominal Line Voltage: 220-240Vac
Line Voltage Frequency: - 50Hz Nominal (47 - 53Hz)
Load Brightness Range: 0% to 100% (typical for LED loads)
Maximum Load: 250w - 400w (Refer to compatible load table on Tech Spec)
Minimum Load: 2w
Mounting: Standard Australian wall plate aperture

Dimension:

Width: 22mm
Height: 48mm

Order Code:
MEDM - Adaptive Phase Rotary Dimmer

ACC: Push Button LED Trailing Dimmer w/ Round/Square Edge Face CLA Lighting - VELA

$66.05

Features:

Soft start
Overload protection & short circuit protection
Easy to mount in most Australian plates
Suitable for dimming dimmable LED globes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogen globes
Long press dimming button to dim
Short press dimming button to on/off
Comes with 2 face caps round & square edged to suit most Australian plates
IP rating: IP20
3 year replacement warranty
Suitable for 2 way switching

Programming:
Minimum brightness setting
(1) Remove the top cap
(2) Long press programming button until LED flashes slowly
(3) Long press dimming button to set level
(4) Double press dimming button to exit programming mode

Maximum brightness settting
(1) Remove the top cap
(2) Long press programming button until LED flashes, short press programming button, until LED starts to flash fast
(3) Long press dimming button to set level
(4) Double press dimming button to exit program mode

Technical Data:

● Rated voltage & frequency	_	220-240V AC 50Hz
● Rated Power		5-350VA
● Hi-Pot		Applying 3KVrms voltage between the surface of the button of the unit against its opening ends of two fly wires which are electrically connected together, the unit will not have trigger current higher than 1mA during the 1 minute test duration
● Environmental Requirement		Ambient temperature: 0 to 40°C Operating humidity: 10% to 95% RH, no condensing Storage temperature: 0 to 60°C Storage humidity: 10% to 95% RH, no condensing
● Altitude		This product can only be operated at less than 2000 meters above to sea level
● RoHS		The European Directive 2011/65/EU RoHS Compliance required
● Reach		The European Union directive 1907/2006/EC Compliance required
● Life time of rotary button		Min. 20,000 cycles
● Wiring Practices		Comply with AS/NZS 3133
● Logo of certification		CE, RCM
● Size		23.5mm x 23.5mm x 44.3mm (W x L x H)

Specifications:
Order Code: VELA
Brand Name: CLA Lighting
Category: Accessories- Dimmer
Style: Push Button
Face: Round Edge & Square Edge
Voltage: 220-240V
Current: AC Hertz: 50Hz
Rated Power: 5-350VA
Ta (Ambient Temperature): 0 to 40°C
Operating humidity: 10% to 95% RH, no condensing
Tc (Case temperature temperature): 0 to 60°C
Storage humidity: 10% to 95% RH, no condensing
Width: 23.5mm
Length: 23.5mm
Height: 44.3mm
IP Rating: IP20
Life time of rotary button: Min. 20,000 cycles

LED Dial Dimmer for Havit Dimmable Products IP20 240v Havit Lighting - HV9625

$47.69

Description:

LED Dial Dimmer
Suits specified Havit dimmable products
300w Max

Specifications:

Brand: Havit Lighting
Category: Dimmer
Application: Dial
LED: Yes
Colour: White
IP Rating: IP20
Use: Indoor
Power: 240v
Wattage: 3w min/300w max
Suits: Havit dimmable products

Order Code

HV9625

Zigbee Trailing Edge Dimmer in White Havit Lighting - HV9105-ZB-ACDIM

$140.68

Description:

Zigbee Trailing edge dimmer Relay
Can be used with Philips Hue
Input Voltage: 240v AC
Output Power: 400W (200w MAX for LED)
3 Years replacement warranty

Specifications:

Material: Plastic
Colour: White
No. of Channels: 1
Input Voltage: 240v
Output Signal: 2.4Ghz
Output Power: 400w (LED 200w)
Transmitting Range: Up to 30m
IP Rating: IP20
Dimmable: Yes (0.1% - 100%)
Warranty: 3 Years Replacement

Order Code:

HV9105-ZB-ACDIM

Remote Dimmer and Effects Controller Superlux Lighting - SLED-RDIM

$24.56

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

15 metre range
10 Dimming levels
8 light effects such as: Fade & Blink modes
Speed can be decreased or increased on effects

Specification:

Technology field: LED
Power supply: 12v, DC
Dimmable: Yes

Order Code:
SLED-RDIM

Colour Adjust and Dimmer for Dual Striplights Superlux Lighting - DUAL-DIM

$30.23

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

Dimmer and colour adjustable Kelvin control for DUAL series
colour temperature adjustable from warm 2700K to daylight 6000K in 5 steps (2700k - 3500k - 4000k - 5000k - 6000k).
Hold square button for 3 seconds to activate "swing mode"
Power supply: 24v, Constant Voltage, DC

Dimension:

Length: 72mm
Width: 14.5mm
Height: 11mm

Smart Wi-Fi Kinetic RF Dimmer Switch 1/2/3 Gang in White

$68.59

Features:

Push button style
Switch + dimming
No wiring required
No battery required
Control distance: up to 20m indoor
Multiple way control
RF 433MHz.
ONLY WORKS with Brilliant Smart Jupiter WiFi Dimmer Connector 20693/05.

Order Code:

20758/05 - 1 Gang
20759/05 - 2 Gang
20760/05 - 3 Gang

Smart Wi-Fi Jupiter Leading Edge Dimmer Connector in White

$69.85

Features:

Leading edge dimmer suitable for most products. Make your existing downlights, switches or lighting smart with this dimming module.
Fits through a downlight cutout as small as ø53mm.
Works with any 2.4GHz enabled WiFi router (note: will not currently pair with 5.0GHz bandwidth.)
Automate your day by setting timers and scheduling your lighting to turn on, off or dim.
Dimmable only via app or voice control through Amazon Alexa® or Google Home®
Control from anywhere via app or voice control using Alexa hubs or Google Home devices.
Your Smart WiFi Plug needs to be within a maximum range of 30m from your 2.4GHz WiFi router.

Specifications:

Working voltage: 240v AC
Min Load: 5w
Max Load: 100w
Terminals: 4mm²
Security: Mac Encryption; WEP /WAPI/TKIP/AES
WiFi Standard: 11b/g/n
Wall switch available (433MHz)
Warranty: 1-Year

Dimensions:

Length: 98mm
Width: 44mm
Height: 31mm

PLS 4 Channel Radio Remote Control Dimmer Solar Lighting Direct

$197.66

PLS 4 Channel Radio Remote

Features

Remote Controlled
DIY
Allows separate control of up to 4 different channels of lighting on PLS - offering full dimmability and zone control
1.2V Replacement Battery to suit SLDBL0026, SLDBL0027, SLDWL0026, SLDWL0027, SLDGSK0054
Included as a part of our range just in case your solar lighting batteries are finally needing replacement.

Order Code
SLDRFMCD

Smart Switch Secondary Digital Dimmer 300W SAL Sunny Lighting - SDD300US

$32.70

Description:

SECONDARY- universal digital dimmer. Smart lighting controls for residential and commercial applications.

Specification:

Push button control trailing or leading edge digital dimming
Multiple-location dimming by connecting SDD300UM with any number of secondary dimmers SDD300US can be achieved. NOTE: the total length of the remote wire (>0.5mm²) used to interconnect all of the SDD300US should not exceed 50 metres.
Fit most popular switch plates
Overheating and over current protection, full short circuit protection
Programmable minimum brightness level
Compliant to AS/NZS60669.2.1,
Dimmer Type - DIGITAL

Dimensions:

Length: 44mm
Width: 23mm
Height: 23mm

Model No.	Description	Input (ac)
SDD300US	DIGITAL DIMMER 300W TE/LE SECONDARY	240v

Lighting Accessories - 1-10V Analogue Dimmer Controller SAL Sunny Lighting - SDF30

$33.86

Description:

1-10V analogue dimmer and controller. Ideal for residential and commercial lighting control requirements.

Specification:

1-10V rotary analogue dimmer
Fit most popular switch plates
Note: maximum quantity of connected devices is 30 or a maximum current sink of 50mA
Dimmer Type - ANALOGUE

Dimension:

Length: 53mm
Width: 23mm
Height: 23mm

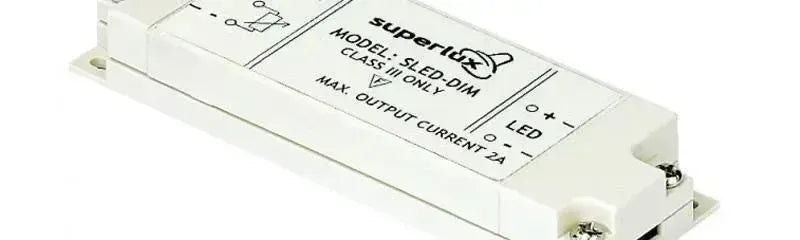

Strip Light Dimmer For SLED Range White Superlux Lighting - SLED-DIM

$22.67

Please Note - All Superlux orders will take an additional 3-5 days on top of estimated delivery times.

Features:

Install between the ELV DC power supply and the Superlux DC LED lamps
Suitable for Dimming constant voltage 12/24V DC LED lighting
Maximum output current 2A
Use in conjunction with a potentiometer such as clipsal 500k OHM (30 POTFM)

Specifications:

Colour: White

Order Code:

SLED-DIM

Accessories: 1-10V Rotary Controlled LED Dimmer CLA Lighting - DIMERIS

$28.95

Features:

The 1-10V LED Dimmer is a low cost rotary regulartor for controlling dimmable analogue LED drivers
Suitable for LED lighting, dimmable electronic ballasts, electronic transformers and 240V halogen and incandescent lamps
The 1-10V LED Dimmer uses a shunt voltage regulation technique
Maximum load: 10V/40mA
Maximum output cable length: 50m
Fits Australian wall switches
Soft start
IP20 rated
Suitable for CLA HIB7

Programming:
2 year replacement warranty

Order Code:
DIMERIS

Technical Data:

Model No.		DIMERIS
Input	Voltage (Max.)	10V DC
Input	Voltage (Min.)	0.5V DC
Ouput	Control Current (Max.)	40mA
Environment	Working Temp.	-100 C to 800 C, ambient operating at full load
	Working Humidity	20% to 90% RH non-condensing
	Storage Temp. Humidity	-20°C to 80°C, 10% to 90% RH
Connection	To Dimmable Input Port	UL rated, 20AWG for ‘+‘ ang ‘-‘
Others	MTBF	100K Hours min @Ta=25°C
	Dimensions (L, W, H)	23mm, 23mm, 54mm
	Compliance with Australian Standard AS/NZS CISPR 15

LEDsmart+ Rotary Dimmer Switch for LED Lighting Diginet - MMDM/RT

$76.65

Description:
Designed in Australia to provide optimised dimming of LED based lamps and drivers, this high quality, two-wire phase control dimmer can be connected in parallel to other LEDsmart+ devices to provide a simple solution to multi-way control.

Features:

Built-in multiway control.
Rotary dimming.
Built in Tap on / Tap off switch.
Fully programmable functions.
Quick flick dial feature to go to maximum or minimum lighting.
Double tap to dim to minimum or maximum over 30 minutes.
Illuminated bezel via white LED indicators.

Functions:

• Single-way control
• Two-way control
• Multi-way control
• Indicator - white LED
• Rotary dial
• Integrated tap on /off switch
• Programmable minimum and maximum
• Programmable kick-start function
• Programmable off-state indicator
• Kids bedroom mode - double tap to dim down over 30 minutes
• Wake up mode - double tap to dim up over 30 minutes

Specifications:

Rated average life: 5000hrs
Wattage: 400w
Operating Temperature (Max): 50
IP Rating: IP20
Line Voltage Frequency: 50Hz
Nominal Line Voltage: 220 - 240v AC
Connection Type: 2-Wire Active/Load
Incompatible Load Types: Ceiling Sweep Fan Motors
Indicator Colour: White
Integrated On/Off Switch: No
Minimum Load: 2w
Programmable: Yes
Dimmable: Yes

Dimensions:

Length: 24mm
Width: 24mm
Height: 50mm

Order Code:
MMDM/RT

Acc. - Smart 2 Wire Rotary or Push Button Dimmer

$80.24

Smart Wifi dimmers that do not require a neutral wire. A more convenient installation for some homes. Suitable for two-way switching through the app or when used with the Slave Dimmer mech 21530.

Features:

Smartify the lights in your home by installing this Wifi Dimmer Mech.
Fits conveniently into the existing switch plate.
Perfect for new or retro-fit installations.
Trailing edge dimmer suitable for most lighting products.
Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates.
Control from anywhere via app or voice control.
Build schedules and timing to automate your home.
Create virtual automation looping without the hassle of installing long cable runs.
Programmable minimum brightness level to avoid light flickering.
Incorporates on/off switching and dimming control into one mechanism.
Soft start for improved lamp life.
Connects to other BrilliantSmart devices and other compatible products.
Overheat, Overload and Over-current protection.
Manual push button is in perfect sync with app.
3 year warranty

Dimension:

Length: 40mm
Width: 22.5mm
Height: 62mm or 47mm

inline Switch with Dimmer in White - Wi-Fi or Zigbee

$83.16

Features:

Compatible with push button switch
Requires Neutral
Works with 'Hey Google' and 'Alexa'
3 Year Warranty

Connection Type:

Wi-FI
Zigbee - Requires hub

Smart Rotary Dimmer Mechanism - Wi-Fi or Zigbee

$81.30

Features:

Compatible with most popular brands
No neutral wire required
Works with 'Hey Google' and 'Alexa'
3 Year Warranty

Order Code:

SSWRM-WIFI - Wi-FI
SSWRM-ZB - Zigbee (Requires hub)

Smart Single Gang Light Dimmer (Wi-Fi) in White

$74.66

The Mercator Ikuü switch range provides the ultimate experience with flexibility in how you use your products either via the touch switch, app or voice control.

Features:

Integrated trailing edge dimmer with touch switch
Works with most leading brand dimmable LED lights
Requires an Electrician
Wi-Fi (no hub required)
Backlit switches
Works without netural (11W min load required)
White, UV resistant material - (Does not turn yellow)
Can be installed with a standard mounting bracket and a mounting block with a minimum depth of 41mm (dependant of conduit/cable entry)
On/off & dimming control via the Mercator Ikuü app
Customizable timers & schedules via the Mercator Ikuü app
Use the scenes and automation section of the Mercator Ikuü app to control multiple products at once, or even have them function automatically
Group multiple products together for simultaneous control
Works with both Amazon Alexa and Google Assistant
3 year in-home warranty
Approved to AS/NZ standards
Also available in Zigbee

Included Accessories:
Faceplate, Cut-out template, Mounting screws

Specification:

Colour: White
Connection Type: Wi-Fi
Neutral Required: Not for loads greater than 11w
Supply Voltage: 230 - 250v a.c. 50Hz
Standby Wattage: <1w
Operating Load: LED: 5w – 250w | Incandescent: 10w - 200w
IP Rating: IP20 (indoor use only)
Materials: Polycarbonate
Product Type: Switches
Warranty: 3 Yr (In Home)
Wiring Accessories: Yes

Dimension:

Length: 115mm
Height: 74mm
Width: 44mm

Smart Single Gang Light Dimmer (Zigbee) in White or Matt Black

$85.61

The Mercator Ikuü switch range provides the ultimate experience with flexibility in how you use your products either via the touch switch, app or voice control.

Features:

Integrated trailing edge dimmer with touch switch
Works with most leading brand dimmable LED lights
Requires an Electrician
Zigbee - Requires a hub
Zigbee 3.0 compliant featuring mesh technology for greater range
Low latency for quicker response times
Backlit switch
Works without netural
White, UV resistant material - (Does not turn yellow)
Available in matt black
Can be installed with a standard mounting bracket and a mounting block with a minimum depth of 41mm (dependant of conduit/cable entry)
On/off & dimming control via Mercator Ikuü app
Customizable timers & schedules via the Mercator Ikuü app
Use the scenes and automation section of the Mercator Ikuü app to control multiple products at once, or even have them function automatically
Group multiple products together for simultaneous control
Works with both Amazon Alexa and Google Assistant
3 year in-home warranty
Approved to AS/NZ standards
Also available in Wi-Fi

Included Accessories:
Faceplate, Cut-out template, Mounting screws

Specification:

Colour: White, Matt Black
Connection Type: Zigbee
Material: Polycarbonate
Supply Voltage: 230 - 250v a.c. 50Hz
Standby Wattage: <0.05w
Operating Load: LED: 5w – 250w | Incandescent: 10w - 200w
Dimming Method: Trailing edge
IP Rating: IP20 (indoor use only)
Product Type: Switches
Warranty: 3 Yr (In Home)
Wiring accessories: yes

Dimension:

Length: 115mm
Height: 74mm
Width: 44mm

Smart Bluetooth Mesh Dimmer Mech in Blue

$91.70

Description:

Bluetooth mesh is a many to many broadcast structure that allows you to connect devices using a Bluetooth network that can communicate with each other to form the mesh network. Smart push button lighting dimmer that allows remote operation from anywhere

Features:

Make your dimmable lights smart by converting your current dimmer to our Bluetooth® Mesh smart dimming module
Fits conveniently into the existing switch plate, including HPM®, Clipsal® and Vynco®
Trailing edge dimmer suitable for most LED lighting products
Build schedules and timing to automate your lighting
Create virtual automation looping without installing long cable runs*
Programmable minimum and maximum brightness level to avoid light flickering
Incorporates on/off switching and dimming control into one mechanism
Soft start for improved lamp life
Connects to other BrilliantSmart devices and other compatible products
Overheat and over-current protection
Manual push button is in perfect sync with app
Each mesh device provides extended connection range.
Eliminates network blackspots.
Control locally via Bluetooth on your phone or tablet or add a Mesh Gateway for greater functionality and automation

Specifications:

Colour: Blue
Installation: Must be installed by a licensed electrician
Maximum Load: 200w LED; 350w Incandescent
Dimmable: Yes
Control: BrilliantSmart app, On/Off Wall switch
Construction: Flame retardant ABS for housing
Plate Compatibility: Slots seamlessly into HPM, Clipsal and Vynco branded, wall plates with multiple button head shapes (series 30 type)
Warranty: 1-year replacement
Connectivity Info: Bluetooth 4.2
Device Requirements: iOS 8.0 or higher, Android 4.1 or higher

Smart-Heat™ Wireless Dimmer Controller (Electric only)

$1,022.98

Description:
Move beyond the base-model with our Bromic Heating Wireless Dimmer Controller. With our Dimmer Control and wireless 7-Channel remote, you’ll be able to precisely adjust the output of your electric heaters in 1% increments, or quickly jump by 25% increments for perfect comfort and complete flexibility from up to 30m away.

The remote can be kept separate or easily mounted with the included double-sided adhesive or screws. Each dimmer controls one 6800W heater at 240VAC or two 3400W heaters at 240VAC.

Specifications:

Power Supply: 110/277VAC 50/60Hz (29A. max)
Max Output Power: 6800W @ 277VAC (25A.)
6800W @ 240VAC (28.5A.)
3080W @ 110VAC (28A.)
Fuse Protection: 32A (FWC high speed, 10 X 38mm)
Reception Frequency: 916MHz
Operating Temperature Range: -20/+30°C
Maximum Transmitters Memorized: 42 (84 heaters per controller)
Dimensions: 195 x 200 x 75mm
Protection Class: IP54

Lighting Accessories - Multi-function Analogue Dimmer 400w SAL Sunny Lighting - SDA450U/LED

$56.78

Description:
Multi-function analogue dimmer with soft start technology, optimised for LED loads. Residential and commercial lighting control requirements.

Specification:

Multi-function trailing-edge analogue lighting load dimmer, with soft start technology.
240v, maximum load up to 400W LED, minimum 2W, no neutral required, supplementary ON/OFF switch control required.
Fits most popular switch plates, including the comprehensive range of PIXIE AMBIENCE electrical (switch plate) accessories
Designed with over-heating protection, compliant with AS/NZS 60669 2.1
Adjustable minimum DIM mech setting.
Designed with thermal wind-back for overload and over-temperature protection

Dimension:

Length: 53mm
Width: 23mm
Height: 23mm

Model No.	Type	Input Voltage	Dimmable	Colour	IP Rating	Load
SDA450U/LED	Trailing Edge	240v	Yes	Green	IP20	Min 2w, Max 400w

RF Remote with Dimmer

$69.57

Features

Fan On/Off – Low/Medium/High
Light On/Off/Dimmer
Light Settings Memory
12 Month Warranty
3 Off Timer Options
Up to 10m Radio Frequency Range
Battery Included

Smart WIFi Trailing Edge Dimmer Mech in White

$91.70

Description:
WiFi Smart push button lighting dimmer that allows remote operation from anywhere.

Features:

Make your dimmable lights smart by converting your current dimmer to our Smart dimming module
Perfect for new or retro-fit installations
Trailing edge dimmer suitable for most LED lighting products
Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates
Control from anywhere via app or voice control
Build schedules and timing to automate your home
Create virtual automation looping without the hassle of installing long cable runs
Programmable minimum brightness level to avoid light flickering
Incorporates on/off switching and dimming control into one mechanism
Soft start for improved lamp life
Connects to other BrilliantSmart devices and other compatible products
Overheat and over-current protection
Manual push button is in perfect sync with app

Application:

Connects to any dimmable downlight – indoor only
Two-way switching for new installations using automations
Group lights, so they can be switched on or off at the one time
Create scenes using IFTTT, so lights come on based on certain behaviour, ie: when movement is detected via a sensor, the lights turn on automatically

Specifications:

Dim Method: Trailing edge
Advanced settings: Programmable minimum dimming level Selectable load type
Operating Voltage: 240v / 50Hz
Class: Class II (2)
Maximum Load: 200w LED / 300w Incandescent
Minimum Load: 2w or 0.33µF X2 capacitor
Operating Temperature: 10°C - 30°C
Protection Type: Over heat & over current
Control Type: Push button / BrilliantSmart app; Soft start for improved lamp life
Connection Terminals: 3 x 3mm diameter (7mm²) screw
Material: Flame retardant ABS for housing
LED Indicator: Blue
Plate Compatibility: Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates with multiple button head shapes (series 30 type)
Warranty: 1 year replacement
WiFi Info: IEEE802.11b/g/n, 2.4GHz Mac Encryption; WEP/WAPI/TKIP/AES
Device Requirements: iOS 8.0 or higher, Android 4.1 or higher
Standards: AS/NZS 60669-2-1 IEC 60669-1
Installation: Must be installed by a licensed electrician

Dimension:

Width: 40mm
Height: 49mm
Depth: 22.5mm
Weight: 0.05kg

Smart Master WIFi Trailing Edge Dimmer Mech in White

$91.70

Description:
WiFi Smart push button lighting master and slave dimmers that allow simple automation and two-way switching.

Features:

Make your dimmable lights smart by converting your current dimmer to our Smart dimming module
Designed for two-way switching when Slave Mech is used in conjunction with Master Mech with a quicker response.
Perfect for new or retro-fit installations
Trailing edge dimmer suitable for most LED lighting products
Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates
Control from anywhere via app or voice control
Build schedules and timing to automate your home
Create virtual automation looping without the hassle of installing long cable runs
Programmable minimum brightness level to avoid light flickering
Incorporates on/off switching and dimming control into one mechanism
Soft start for improved lamp life
Connects to other BrilliantSmart devices and other compatible products
Overheat and over-current protection
Manual push button is in perfect sync with app

Application:

Connects to any dimmable downlight – indoor only
Two-way switching for existing looped installations
Group lights, so they can be switched on or off at the one time
Create scenes using IFTTT, so lights come on based on certain behaviour, ie: when movement is detected via a sensor, the lights turn on automatically

Specifications:

Dim Method: Trailing edge
Advanced settings: Programmable minimum dimming level Selectable load type
Operating Voltage: 240v / 50Hz
Class: Class II (2)
Maximum Load: 200w LED / 300w Resistive
Operating Temperature: 10°C - 30°C
Protection Type: Over heat & over current
Control Type: Push button / BrilliantSmart app; Soft start for improved lamp life
Connection Terminals: Fly wire
Material: Flame retardant ABS for housing
LED Indicator: Blue
Plate Compatibility: Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates with multiple button head shapes (series 30 type)
Warranty: 1 year replacement
WiFi Info: IEEE802.11b/g/n, 2.4GHz Mac Encryption; WEP/WAPI/TKIP/AES
Device Requirements: iOS 8.0 or higher, Android 4.1 or higher
Standards: AS/NZS 60669-2-1 IEC 60669-1

Dimension:

Width: 42mm
Height: 43.2mm
Depth: 21.5mm
Weight: 0.05kg

Installation:

Must be installed by a licensed electrician

Master Push Button Universal Digital Dimmer in White

$71.41

Description:
Smart lighting controls for residential and commercial applications

Features:

Push button control trailing or leading edge digital dimming, GREEN LED indicator for TE mode and RED for LE mode. Colour temperature selection functionality is achieved when used with SAL S9841 or S9842 downlights
Multiple-location dimming by connecting SDD350UM with any number of secondary dimmers SDD300US can be achieved.
Fits most popular switch plates, three complimentary mech caps provided
Overheating and over current protection, full short circuit protection, supports ceiling sweep & exhaust fan < 60 watt loads
Programmable minimum brightness level
Compliant to AS/NZS60669.2.1 and supports ceiling sweep & exhaust fan < 60 watt loads.

Specifications:

Dimmable: Yes (Digital, Trailing Edge & Leading Edge)
Colour: White
Input Voltage: 240v AC
IP Rating: IP20

Dimensions:

Length: 44mm
Width: 23mm
Height: 23mm

CTEC Smart Home: LCD Smart Dimmer Switch Single Gang in Black or White - L8-HDU

$170.09

Description:
Part of the CTEC Smart home "Mirror Range" Series the LCD Smart Dimmer Switch is a single gang smart dimmer switch to turn your non-smart lights and enable smart wifi controllability via apps and existing smart systems in your home.

We have two models listed in two different faceplate colours; one is compatible with existing Apple Homekit smart home systems, and the other is compatible with Google Assistant, Alexa, & Home Assistant. If you are planning on having a smart system in your home and are unsure which model will be compatible please reach out to our sales team.

Ctec is a leading smart light switch brand based in Sydney, Australia. All our products work on 2.4 ghz WiFi ONLY.

Frequently Asked Questions

Specifications:

Type: WiFi Smart Switch, Dimmable, Single Gang
Panel: LCD Tempered Glass
Rated Voltage: AC 100-250V 50/60Hz
Max Current: 10A
GSSS Std.: 802.1b/g
WiFi Safe mode: WEP, WPA/WPA2 (AES and TKIP for Personal)
Max Wattage Load: 2000w
Faceplate Colours: Black or White

Please Note: Allow an additional week on top of the estimated delivery times for the CTEC product range.

Martec 350VA Rotary LED Light Dimmer Trailing Edge

$48.29

Description:

Martec dimmers are a compact, modular dimming mechanism rated at 350w, and designed for universal load compatibility.
The unit utilises powerful and sophisticated dimming technology to provide full control of almost any type of load. Used to control loads such as LED, incandescent lamps, 240v halogen lamps, dichroic lamps and low voltage lighting that uses iron-core or electronic transformers.
The dimming performance is optimised to ensure smooth, linear dimming across the control range.
The Rotary Dial model is a separately switched unit that utilises sophisticated dimming technology to provide full control of a wide range of load types.

Features:

Fit most branded switch plates
No neutral required
Soft start
Suitable for 1-way or 2-way operation
Overheating protection
Over current protection
Full short circuit protection
Minimum brightness adjustable

Specifications:

Colour: White
Dimming method: Trailing edge
Supply voltage: 240v AC ~ 50Hz
Load wattage: 10-350w (1.5 A max)
Ta: -10 + 40°C 25g
Warranty: 1 Year

Martec 350VA Push Button LED Light Dimmer Trailing Edge

$52.49

Description:

Martec dimmers are a compact, modular dimming mechanism rated at 350w, and designed for universal load compatibility.
The unit utilises powerful and sophisticated dimming technology to provide full control of almost any type of load. Used to control loads such as LED, incandescent lamps, 240v halogen lamps, dichroic lamps and low voltage lighting that uses iron-core or electronic transformers.
The Push Button model incorporates on/off switching and dimming control into one mechanism.
The dimming performance is optimised to ensure smooth, linear dimming across the control range.
The Rotary Dial model is a separately switched unit that utilises sophisticated dimming technology to provide full control of a wide range of load types.

Features:

Fit most branded switch plates
No neutral required, Soft start
Suitable for 1-way operation only
Additional button cover included
Overheating protection
Over current protection
Full short circuit protection
Minimum brightness adjustable

Specifications:

Colour: White
Dimming method: Trailing edge
Supply voltage: 240v AC ~ 50Hz
Load wattage: 10-350w (1.5 A max)
Ta: -10 + 40°C 25g
Warranty: 1 Year

Acc. - 0-1/10v LED Dial Dimmer Havit Lighting - HV9629

$47.69

Features:

0-1/10v Dimming Pot
Suits Clipsal and HPM Standard Plates
Must Be Used with 0-1/10v LED Controllers or LED Drivers
3 Years Replacement Warranty

Specifications:

Material: Plastic
Colour: White
IP Rating: IP20
LED Strip Type: Single Colour
No. of Zones: 1
Input Voltage: 10v
Dimmable: Yes - 1% to 100%
Working Temp: -20° - 55°C

Dimensions:

Length: 23.5mm
Width: 23.5mm
Height: 52.8mm

RippleSHIELD Dimmer 250w Grey

$118.10

Dimmable control with rippleSHIELD flickerCONTROL technology, when paired with SAL rippleSHIELD downlights.

Features:

Digital push button control, with three (3) complimentary key caps provided to suit most switch plates
Combined with the SAL rippleSHIELD downlights Ecogem or Unifit series, the rippleSHIELD dimmer eliminates nuisance ripple induced flicker between 750-1050Hz once and for all, typically found in QLD and NSW regions.In addition, it has been found to be enormously successful in eliminating LED flicker in off-grid supply environments.
Smooth dimming performance to 1.0% of light output
PIXIE connectivity is achieved via the PIXIE / PIXIE PLUS app or paired secondary device
Refer installation instructions for load compatibility chart

Performance:

Dimmable - YES
Dimmer Type - SFI Trailing edge SDD400SFI ONLY

Applications:

Ideal for any residential or commercial interior spaces where nuisance ripple induced flicker is visible.

Specifications:

Colour: Grey
Wattage: 250w
Input Voltage: 240v
IP Rating: IP20
Warranty: 1 Year Commercial, 2 Years Residential

Dimension:

Length: 42mm
Width: 24mm
Height: 24mm

Wifi Dimmer Single Gang White, Black Dimmer Wall Switch Havit Lighting - HV9111, HV9211

$93.79

Specifications:

Material: Plastic with Glass Front
Colour: White, Black
IP Rating: IP20
Frequency: Wifi 2.4ghz
Input Voltage: 240v
Load: 300w LED
Dimmable: Yes
Warranty: 3 Years Replacement

Dimension:

Length: 72mm
Height: 120mm

Pixie Smart Home Push Button Dimmer Generation 2 in White

$172.19

Features:

Digital push button control, with three (3) complimentary key caps provided to suit most switch plates
When used as a digital device, push on/off, hold to dim up or down, memory function, selectable minimum dim level
When used with the SAL PIXIE or PIXIE PLUS app, set a scene, group devices, set a schedule, dim, switch, set a timer
With the inclusion of the SAL PIXIE Gateway and the internet, you can control your PIXIE devices from anywhere in the world
Overheating, overload and full short circuit protection, maximum load 350 watt, minimum load 2 watt*
SMART LED indicator, Trailing edge phase cutting dimming, Fits most branded switch plates. 1, 2 or 3 gang, complies to AS/NZS 60669.2.1, typical wireless range 15 metres

Application:

Smart digital lighting control with Bluetooth Mesh Technology for residential and commercial spaces

Specifications:

Colour: White Cap
Wattage: 350w
Voltage: 240v AC
Dimmable: Yes
IP Rating: IP20
Warranty: 2 Year residential, 1 Year commercial

Dimension:

Length: 40mm
Width: 24mm
Height: 38mm
