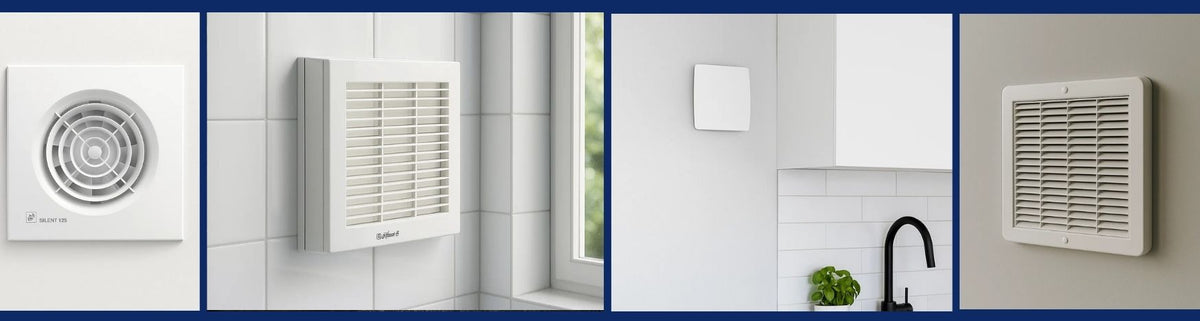

Wall Exhaust Fans

280m³/h Silent Wall Mounted Exhaust Fan 150mm in White (Standard/Timer/Humidistat)

$176.00

Description:
The Silent series exhaust fans are designed to solve ventilation problems in bathrooms, ensuites and toilets. They feature an advanced vibration absorbing design that enables them to run quietly, while it’s high performance motor and impeller exhausts air quickly and efficiently.

Features:
• Quiet operation due to its noise and vibration absorbing design
• Powerful air flow performance
• Low loss foil backdraft damper is standard on all models
• 1-30 minute adjustable run-on timer and adjustable humidistat are available on selected models
• Internal thermal motor cut out protection
• 220-240v, single-phase, 50Hz supply

Backdraft Damper	Humidistat	Run-on Timer	m³/h	L/sec	Fan speed rpm	Avg. db (A)	Watts	Volts	IP Rating
Yes	No	No	280	78	1700	32A	29w	230v	IP45
Yes	No	Yes	280	78	1700	32A	29w	230v	IP45
Yes	Yes	Yes	280	78	1700	32A	29w	230v	IP45

175m³/h Silent Wall Mounted Exhaust Fan 125mm in White (Standard/Timer/Humidistat)

$155.00

Backdraft Damper	Humidistat	Run-on Timer	m³/h	L/sec	Fan speed rpm	Avg. db (A)	Watts	Volts	IP Rating
Yes	No	No	175	48	2350	33A	16w	230v	IP45
Yes	No	Yes	175	48	2350	33A	16w	230v	IP45
Yes	Yes	Yes	175	48	2350	33A	16w	230v	IP45

95m³/h Silent Wall Mounted Exhaust Fan 100mm in White (Standard/Timer/Humidistat)

$127.00

Features:

Quiet operation due to its noise and vibration absorbing design
Powerful air flow performance
Low loss foil backdraft damper is standard on all models
1-30 minute adjustable run-on timer and adjustable humidistat are available on selected models
Internal thermal motor cut out protection
220-240V, single-phase, 50Hz supply

Backdraft Damper	Humidistat	Run-on Timer	m³/h	L/sec	Fan speed rpm	Avg. db (A)	Watts	Volts	IP Rating
Yes	No	No	95	26	2400	27A	8w	230v	IP45
Yes	No	Yes	95	26	2400	27A	8w	230v	IP45
Yes	Yes	Yes	95	26	2400	27A	8w	230v	IP45

300m³/h Silent Design Exhaust Fan Wall Mounted in Silver/White

$304.00

Description:
The Silent Design Series exhaust fans bring style and elegance to any contemporary bathroom, ensuite and toilet. They can be wall or ceiling mounted and feature an advanced vibration absorbing design that ensures quiet operation. Sizes to fit 100, 125 and 150mm duct are available and models with a run-on timer and humidistat are included in the range.

Features:

Quiet operation due to its noise and vibration absorbing design
Ideal for modern homes and commercial application
Suitable for wall and ceiling installations
To complement room fixtures all models are available in white and silver finish - other colours also available.*
Comes with 4 interchangeable colour bars to match room décor.
Backdraft damper is standard on all models
All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application
Class B motor, IP45 rated
CZ' Range - Includes backdraft damper
CRZ' Range - Includes backdraft damper and 1-30 minute adjustable run-on timer
CHZ' Range - Includes backdraft damper, 1-30 minute adjustable run-on timer and adjustable humidistat
Available in spigot diameter sizes to suit 100, 125 and 150mm duct.
* 10 business days lead time applies

Motors

Type - shaded-pole induction motor
Electricity supply - single-phase 230V, 50Hz.
Bearings - Ball.
Maximum ambient temperature - 40°C
Class II insulation, IP45 rated

Internal Thermal Protection

All 100 models - impedance
All 200 and 300 models - fuse

Model No.	Duct Size	A□	B	CØ	D	E	F
SILDES300..	150	247	179	146	112	95	67

Backdraft Damper	Humidistat	Run-on Timer	m³/h	L/sec	Fan speed rpm	Avg. db (A)	Watts	Volts	IP Rating
Yes	No	No	300	83	2150	42A	22w	240v	IP45
Yes	No	No	300	83	2150	42A	22w	240v	IP45
Yes	No	Yes	300	83	2150	42A	22w	240v	IP45
Yes	No	Yes	300	83	2150	42A	22w	240v	IP45
Yes	Yes	Yes	300	83	2150	42A	22w	240v	IP45
Yes	Yes	Yes	300	83	2150	42A	22w	240v	IP45

175m³/h Silent Design Exhaust Fan Wall Mounted 200mm in Silver/White 175m³/h Silent Design Exhaust Fan Wall Mounted 200mm in Silver/White

$258.00

Typical Application
Exhausts from toilets, ensuites, bathrooms, washrooms and laundries.

Features:

Quiet operation due to its noise and vibration absorbing design
Comes with 4 interchangeable colour bars to match room decor
Low loss foil backdraft damper is standard on all models
Internal thermal motor cut out protection
1-30 minute adjustable run-on timer and adjustable humidistat are available on selected models
220-240v, single-phase, 50Hz supply
Warranty Period: 5 Years

Model No.	Duct Size	A□	B	CØ	D	E	F
SILDES200..	125	210	145	116	89	80	56

Backdraft Damper	Humidistat	Run-on Timer	m³/h	L/sec	Fan speed rpm	Avg. db (A)	Watts	Volts	IP Rating
Yes	No	No	175	48	2450	35A	16w	240v	IP45
Yes	No	No	175	48	2450	35A	16w	240v	IP45
Yes	No	Yes	175	48	2450	35A	16w	240v	IP45
Yes	No	Yes	175	48	2450	35A	16w	240v	IP45
Yes	Yes	Yes	175	48	2450	35A	16w	240v	IP45
Yes	Yes	Yes	175	48	2450	35A	16w	240v	IP45

Optional Colours:
The Silent Design range also comes in an additional 9 colours as a special order. Please allow 18 weeks delivery from date of order for the additional colours.

Acc.- Exhaust Fan Controller Run-on Timer Single Switch

$168.00

Description:
220-240V, single-phase, 50Hz. Fan with 3 pin plug and lead connects directly. Mains connection is wired directly into the terminals of the run-on timer; no need for 4-pin GPO.

Run-on Timer	Max. Amps	To Suit Fan Selected
2-10 min	5.0	• Domestique • Silent Design • Silent • HCM • Stylvent • ProVent • Response • Ezifit Thru Wall • Ezifit In-Wall • Ezifit Thru Roof • Vogue/Ring Plate

Acc.- Exhaust Fan Controller Run-on Timer c/w Plug and Lead

$190.00

Description:
220-240V, single-phase, 50Hz. Fan with 3 pin plug and lead connects directly. Fitted with 4 pin plug and 900mm lead for connection to 4 pin GPO.

Run-on time	Max. Amps	To Suit Fan Selected
6 min	5.0	• Vogue/RingPlate • Ezifit Thru Wall • Ezifit Thru Roof • TD Silent • Response • ProVent

WSK External Backdraft Shutters Grille for Exhaust and Ventilation Fantech

$115.00

Features:
• WSK shutters are airstream-operated and designed for surface mounting.
• Moulded in impact-resistant UV-stabilised PVC.
• Colour - grey.
• Flaps have an aerofoil section with the weight concentrated at the pivot point. This feature ensures easy opening and minimal pressure drop.
• Nylon spindles give silent and maintenance-free operation.
• No parts to corrode.
• Screw fixing.
• Suitable for internal or external wall or duct mounting in the vertical plane.
• Generally used for exhaust applications.
• Can be supplied to any square or rectangular dimension.
• Maximum air velocity, 11m/s

Product Code	A	B	C	D	E
WSK20	244	184	22	210	27
WSK25	294	227	26	310	45
WSK30	344	276	26	310	45
WSK35	394	310	26	360	40

85m³/h Silent Design Exhaust Fan Wall Mounted 100mm in Silver/White

$213.00

Features:

Quiet operation due to its noise and vibration absorbing design
Ideal for modern homes and commercial application
Suitable for wall and ceiling installations
To complement room fixtures all models are available in white and silver finish - other colours also available.*
Comes with 4 interchangeable colour bars to match room décor.
Backdraft damper is standard on all models
All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application
Class B motor, IP45 rated
'CZ' Range - Includes backdraft damper
CRZ' Range - Includes backdraft damper and 1-30 minute adjustable run-on timer
'CHZ' Range - Includes backdraft damper, 1-30 minute adjustable run-on timer and adjustable humidistat
Available in spigot diameter sizes to suit 100, 125 and 150mm duct.
* 12 week lead time applies

Construction

Manufactured from injection moulded plastic.
All units have weather and impact resistant housings.

Motors

Type - shaded-pole induction motor
Electricity supply - single-phase 230V, 50Hz.
Bearings - Ball.
Maximum ambient temperature - 40°C
Class II insulation, IP45 rated

Internal Thermal Protection

All 100 models - impedance
All 200 and 300 models - fuse

Testing

Air flow to ISO5801: 1997
Noise to ISO13347-3

Model No.	Duct Size	A□	B	CØ	D	E	F
SILDES100..	100	188	130	99	85	79	45

Backdraft Damper	Humidistat	Run-on Timer	m³/h	L/sec	Fan speed rpm	Avg. db (A)	Watts	Volts	IP Rating
Yes	No	No	85	23	2100	27A	8w	240v	IP45
Yes	No	No	85	23	2100	27A	8w	240v	IP45
Yes	No	Yes	85	23	2100	27A	8w	240v	IP45
Yes	No	Yes	85	23	2100	27A	8w	240v	IP45
Yes	Yes	Yes	85	23	2100	27A	8w	240v	IP45
Yes	Yes	Yes	85	23	2100	27A	8w	240v	IP45

OdourVac Toilet Ventilation System Kit

$323.00

Description:
The OdourVac Toilet Ventilation System has been designed to solve the embarrassing problem of toilet odour in a quiet and unobtrusive manner. Odours are drawn from the toilet bowl through the cistern’s over ow pipe and are exhausted by the ducted ventilation system to outside the home. It also avoids the need to use expensive deodorisers, which simply disguise the problem, rather than remove it. The fan is supplied with a 3-pin plug and lead and is easily activated by using either a light switch, a separate switch or a movement sensor (switches and sensor purchased separately).

Features:

Creates an odourless toilet by removing odours directly from the toilet bowl
Adjustable air ow ensures odours are removed without draft
The system complies with AS1668.2-2002 and BCA 2010.
Compatible with most toilet suites

Fan Specifications:

Voltage: 230-240v, single-phase
Frequency: 50Hz
Input Power: 16w

Kit Includes

Description	Qty
European made in-line fan with spigots	1
Balancing valve	1
50mm diameter X 90° PVC elbow	2
50mm external wall grille	1
50mm diameter PVC socket	1
50mm diameter to 40mm diameter PVC reducer	1
250mm length of 40mm diameter PVC pipe	1
100mm length of 40mm diameter PVC pipe	2
200mm length of 40mm diameter exible pipe	1
40mm diameter, 90 ° PVC elbow	1
Circular cover plate	2

Dimensions:

Order Code	A	B	C	Dø	E	F
FANTEF100KIT	132	90	113	89	110	67

Order Code:

OVK1: OdourVac System
TEF100KIT: Fan only

Sleek Linear Dual Slot Exhaust Grille

$248.00

Description:
The sleek looking Linear Slot internal exhaust grilles have been designed to suite the modern and contemporary bathroom, ensuite or toilet. They come with a 150mm duct connection, are available in single and dual slot, and come in white and anodised silver finish.

Features:
• Discretely blends into the latest architecturally designed bathroom or ensuite.
• Works in conjunction with a duct mounted, roof mounted or external wall mounted fan. High quality galvanised steel cushion head box.
• Oval spigot allows 150mm duct connection.
• Available with single slot, or dual slot for additional air flow.

225/600/1100m³/h Stylvent Wall/Window Mounted Exhaust Fans

$256.00

Description:
The Stylvent Series can be wall or window mounted making them well suited for a wide range of general residential and commercial exhaust or supply ventilation applications.

Features:
• Weather and impact resistant housing
• Rated “Continuous Run”
• Exhaust mode as standard
• Can be direct wired in supply air mode or dual mode with reversing switch. (HV-230AE & HV-300AE only)
• Easy to clean removable cover
• 220-240V, single-phase, 50Hz
• Certificate of Approval number: Q973

210/380/630m³/h HCM Series Wall/Window Mounted Fan

$286.00

Description:
The HCM Series can be wall or window mounted. It is designed specifically for exhausting air from domestic and commercial installations such as kitchens, bathrooms, store-rooms and all types of small or confined areas.

Features:

Available in 3 sizes for 230V supply.
All models incorporate air operated shutters.
Impeller blades are sickle shaped for high performance.
Quiet operation.
IPX4 rated.
Weather Cap optional for protection against harsh external conditions.
Suitable for mounting on vertical plain only.
For wall mounting, a kit of threaded “wall rods” and sleeves can be supplied as an optional extra. Caters for walls ranging in thickness from 25 to 300mm.

Construction

Weather and impact resistant plastic housings.

Motors

Type-squirrel cage, capacitor run.
Electricity supply - single-phase 230V, 50Hz.
Bearings - sleeve.
Class B motor, IPX4 rated.

Internal Thermal Protection

Fuse type

Testing

Air flow to ISO5801:1997
Noise to BS848:Part 2, 1985

Suggested Specification

The wall/window fans shall be of the HCM Series as supplied by Fantech Pty Ltd and be of the model numbers shown.

Note: Must not be mounted directly above heat sources such as an oven.

245/443m³/h Ezifit Thru Wall Fan Surface Mounted 2/4 Pole 150mm

$668.00

Description:
Exterior surface mounted fan that is very powerful and easy to install. Ideal for downstairs toilets, laundries and kitchens, or retro tting an existing in-line fan system. Connects to 150mm diameter duct.

Features:
• Easy to install on exterior wall.
• Compact design for installation in tight spaces.
• Lightweight, durable construction.
• Powerful air extraction from one or more grilles.
• Insect proof cover.
• Easy access for cleaning.
• Fan can be speed controlled by external speed controller.
• “Continuous rated” motor fitted with thermal protection.
• Grey Colourbond finish can be painted to match wall colour.
• 220-240v, single-phase, 50Hz.
• Certificate of Approval number: Q041176.

Construction:
Metal cover with shade grey Colorbond finish.
Insect-proof mesh included.
Backward-curved centrifugal fan with non-stalling characteristics.

Motors:
Type - external rotor, squirrel cage induction motor.
Electricity supply - 230v, single-phase, 50Hz.
Bearings - sealed for life ball.
Speed-controllable using electronic speed controller.
Class B motor, IP44 rated.
Internal Thermal Protection
Manual-reset thermal protection

Testing:
Air flow tests to ISO5801:1997
Noise tests to BS848:Part 2 1985

Ezifit Exterior in-Wall Series Fan in 3-Speed Single Phase

$515.00

Description:
Exterior flush mounted fan that is barely visible, very powerful and easily accessible. The most effective way to exhaust from downstairs laundries, kitchens and powder rooms in a two storey home.

Features:
• Easy to install on exterior wall.
• Flush-mounted design provides an unobtrusive appearance.
• Powerful air extraction from one or more grilles.
• Can be wired in High, Medium or Low speed.
• Optional 3-Speed Switch available for remote speed control.
• 5-Star compliant when used with backdraft damper.
• “Continuous rated” motor fitted with thermal protection.
• Supplied with flywire as standard.
• 220-240V, single-phase, 50Hz.
• Certificate of Approval number: Q060509.

EDM-300 Series | 288m³/h EDM Wall/Ceiling Exhaust Fan Series

$277.00

Description:
The EDM Series can be wall or ceiling mounted and is designed to exhaust stale and moist air from bathrooms, toilets, laundries etc. They are also suitable for ventilating all types of small or closed areas.
.
Features:
• Type - shaded-pole induction motor.
• Electricity supply - 220-240V, single-phase, 50Hz
• Bearings - sleeve
• Maximum ambient temperature - 40°C

Internal Thermal Protection:
• Model 100 - impedance
• Model 200 & 300 - fuse

Special Features:
• ‘S’ Range - Standard unit (without shutters); all sizes.
• ‘C’ Range - Standard unit with shutters; all sizes.
• Low Voltage 12V - Unit suitable for wet areas (IPX7), requires low voltage transformer; size 100 only.
• All ranges can be used to exhaust along a short duct, air flows in this situation are reduced.

Order Code:
• FANEDM-300C - 240V 35W 2P 41DBA@3M 150mm Ceiling/Wall with Shutter
• FANEDM-300S - 240V 35W 2P 41DBA@3M 150mm Ceiling/Wall Standard

Description	Diameter	Speed	kW	Amps	AVG db(A) @3m	Max Pressure	Max Volume
240V 35W 2P 41DBA@3M 150mm Ceiling/Wall with Shutter	ø150mm	37	0.035	0.21	41	57	288m³/h
240V 35W 2P 41DBA@3M 150mm Ceiling/Wall Standard	ø150mm	37	0.03	0.21	41	57	288m³/h

EDM-200 Series | 180m³/h EDM Wall/Ceiling Exhaust Fan Series EDM-200 Series | 180m³/h EDM Wall/Ceiling Exhaust Fan Series

$251.00

Description:
The EDM Series can be wall or ceiling mounted and is designed to exhaust stale and moist air from bathrooms, toilets, laundries etc. They are also suitable for ventilating all types of small or closed areas.
.
Features:
• Type - shaded-pole induction motor.
• Electricity supply - 220-240v, single-phase, 50Hz
• Bearings - sleeve
• Maximum ambient temperature - 40°C

Internal Thermal Protection:
• Model 100 - impedance
• Model 200 & 300 - fuse

Special Features:
• ‘S’ Range - Standard unit (without shutters); all sizes.
• ‘C’ Range - Standard unit with shutters; all sizes.
• ‘CT’ Range - Unit complete with fixed run-on timer and shutters; sizes 100 and 200 only.
• ‘CR’ Range - Unit complete with adjustable run-on timer and shutters; size 300 only.
• Low Voltage 12V - Unit suitable for wet areas (IPX7), requires low voltage transformer; size 100 only.
• All ranges can be used to exhaust along a short duct, air flows in this situation are reduced.
• All models except the EDM-100S feature a pilot lamp

Description	Diameter	Speed	kW	Amps	AVG db(A) @3m	Max Pressure	Max Volume
240v 25w 2P 40DBA@3M 119mm Ceiling/Wall with Shutter	ø125mm	42	0.025	0.13	40	45	180m³/h
240v 25w 2P 40DBA@3M 119mm Ceiling/Wall with Timer	ø125mm	42	0.025	0.13	40	45	180m³/h
240v 25w 2P 40DBA@3M 119mm Ceiling/Wall Standard	ø125mm	42	0.025	0.13	40	45	180m³/h

EDM-100 Series | 108m³/h EDM Wall/Ceiling Exhaust Fan Series

$223.00

Description:
The EDM Series can be wall or ceiling mounted and is designed to exhaust stale and moist air from bathrooms, toilets, laundries etc. They are also suitable for ventilating all types of small or closed areas.
.
Features:
• Type - shaded-pole induction motor.
• Electricity supply - 220-240v, single-phase, 50Hz
• Bearings - sleeve
• Maximum ambient temperature - 40°C

Internal Thermal Protection:
• Model 100 - impedance
• Model 200 & 300 - fuse

Special Features:
• ‘S’ Range - Standard unit (without shutters); all sizes.
• ‘C’ Range - Standard unit with shutters; all sizes.
• ‘CT’ Range - Unit complete with fixed run-on timer and shutters; sizes 100 and 200 only.
• ‘CR’ Range - Unit complete with adjustable run-on timer and shutters; size 300 only.
• Low Voltage 12V - Unit suitable for wet areas (IPX7), requires low voltage transformer; size 100 only.
• All ranges can be used to exhaust along a short duct, air flows in this situation are reduced.
• All models except the EDM-100S feature a pilot lamp

Description	Diameter	Speed	kW	Amps	AVG db(A) @3m	Max Pressure	Max Volume
240v 13w 2P 36DBA@3M 98mm Ceiling/Wall with Shutter	ø100mm	41	0.013	0.1	36	19	108m³/h
240v 13w 2P 36DBA@3M 98mm Ceiling/Wall with Timer & Shutter	ø100mm	41	0.013	0.1	36	19	108m³/h
240v 13w 2P 36DBA@3M 98mm Ceiling/Wall Standard	ø100mm	41	0.013	0.1	36	19	108m³/h
12v AC 13w 36DBA@3M 98mm Ceiling/Wall Standard	ø100mm	41	0.013	0.1	36	19	108m³/h

85/130/364m³/h Ventair Standard Through Wall Exhaust Fan Kit - Standard Model in White - FAN0053, FAN0080, FAN0135

$119.69

Description:

100mm, 125mm or 150mm Standard Through Wall Fan Kit

Features:

Includes weatherproof cowl
Standard series operated from remote switch (not included)
The unique low profile design enables these fans to be installed unobtrusively into any wall (requires a minimum wall cavity of 110mm)
These axial fans have been upgraded with ball bearing motors to prolong the life of the motor
5 year warranty

Specifications:

Colour: White
Noise Level: 41dB(A)
IP Rating: IPX4
Warranty: 5 years
Mount: Ceiling or Wall
Power Input: 220-240V~50Hz
Installation: Qualified Electrician Required

Order Code	Description	Motor Power	Air Delivery	Grille Size	Cut Out Size	Duct Outlet Size	Ducting Length
FAN0053	100mm Standard Through Wall Fan Kit	20w	85m³h (23L/sec)	155mm x 155mm	Ø112mm	Ø100mm	375mm
FAN0080	125mm Standard Through Wall Fan Kit	20w	130m³h (36L/sec)	168mm x 168mm	Ø140mm	Ø125mm	375mm
FAN0135	150mm Standard Through Wall Fan Kit	25w	364m³h (101L/sec)	200mm x 200mm	Ø160mm	Ø150mm	375mm

313m³/h Ventair Standard Through Wall Exhaust Fan Kit - Auto Shutter in White - FAN0136

$301.34

Description:

150mm Standard Through Wall Fan Kit - Auto Shutter.

Features:

Electrically operated louvre shutters open automatically when fan is running - prevents back-draughts.
Includes weatherproof cowl
Standard series operated from remote switch (not included)
The unique low profile design enables these fans to be installed unobtrusively into any wall (requires a minimum wall cavity of 110mm)
These axial fans have been upgraded with ball bearing motors to prolong the life of the motor
5 year warranty

Specifications:

Colour: White
Exhaust Motor Power: 25w
Air Delivery: 313m³h (87L/sec)
Grille Size: 200mm x 200mm
Cut out size: Ø160mm
Duct outlet size: Ø150mm
Noise Level: 40dB(A)
IP Rating: IPX4
Warranty: 5 years
Power Input: 220-240V~50Hz
Installation: Qualified Electrician Required
Ducting Length: 375mm

Order Code:

FAN0136

550/1100m³/h Ventair Standard Wall/Ceiling Mounted Commercial Fan Kit - Standard Switch in White - FAN0455, FAN2042

$396.89

Description:

230mm or 300mm Standard Wall/Ceiling Mounted Commercial Fan Kit.

Features:

Designed to be ducted straight through an exterior wall
Efficient and easy to install
Axial fans have been upgraded with ball bearing motors to prolong the life of the motor
Included exterior grille
Fixed shutters

Specifications:

Colour: White
IP Rating: IPX4
Warranty: 5 years
Power Input: 220-240V~50Hz
Installation: Qualified Electrician Required

Order Code	Exhaust Motor Wattage	Air Delivery	Grille Size	Cut Out Size	Noise Level
FAN0455	45w	550m³h (152L/sec)	286mm x 286mm	265mm	50dB(A)
FAN2042	82w	1100m³h (306L/sec)	362mm x 362mm	310mm	60dB(A)

85m³/h Ventair Safety Low Voltage (SELV) Wall/Ceiling Exhaust Fan 100mm in White - FAN5883

$158.54

Description:

100mm Safety Extra Low Voltage (SELV) Wall/Ceiling Mounted Fan.

Features:

Designed for wall or ceiling mounting, efficient and easy to install
12VAC transformer included and suitable for installation in damp areas.
Axial fan have ball bearing motor to prolong the life of the motor.

Specifications:

Colour: White
Exhaust Motor Power: 20w
Air Delivery: 85m³h (23L/sec)
Grille Size: 155mm x 155mm
Cut out size: Ø112mm
Noise Level: 41dB(A)
IP Rating: IPX4
Warranty: 5 years
Power Input: 220-240V~50Hz
Installation: Qualified Electrician Required

Order Code:
FAN5883

130m³/h Ventair Safety Low Voltage (SELV) Wall/Ceiling Exhaust Fan 125mm in White - FAN5890

$183.74

Description:

125mm Safety Extra Low Voltage (SELV) Wall/Ceiling Mounted Fan.

Features:

Designed for wall or ceiling mounting, efficient and easy to install
12VAC transformer included and suitable for installation in damp areas.
Axial fan have ball bearing motor to prolong the life of the motor.

Specifications:

Colour: White
Exhaust Motor Power: 20w
Air Delivery: 130m³h (36L/sec)
Grille Size: 168mm x 168mm
Cut out size: Ø140mm
Noise Level: 41dB(A)
IP Rating: IPX4
Warranty: 5 years
Power Input: 220-240V~50Hz
Installation: Qualified Electrician Required

Order Code:
FAN5890

364m³/h Ventair Safety Low Voltage (SELV) Wall/Ceiling Exhaust Fan 150mm in White - FAN5896

$223.64

Description:

150mm Safety Extra Low Voltage (SELV) Wall/Ceiling Mounted Fan.

Features:

Designed for wall or ceiling mounting, efficient and easy to install
12VAC transformer included and suitable for installation in damp areas.
Axial fan have ball bearing motor to prolong the life of the motor.

Specifications:

Colour: White
Exhaust Motor Power: 25w
Air Delivery: 364m³h (101L/sec)
Grille Size: 200mm x 200mm
Cut out size: Ø160mm
Noise Level: 40dB(A)
IP Rating: IPX4
Warranty: 5 years
Power Input: 220-240V~50Hz
Installation: Qualified Electrician Required

Order Code:
FAN5896

210m³/h Ventair Universal Wall/Ceiling Exhaust Fan in Silver or White - VUF150SS, VUF150WH

$138.59

General Description

White 150mm wall/ceiling exhaust fan with modern easy clean fascia, ball bearing motor and back draft stopper

Features

New modern design
Quiet & Efficient
Easy to clean
Easy to install
Back-draft stopper included
Long life ball bearing motor included
Warranty: 3 Years

Specifications

Model Name	Universal
Model Number	VUF150WH
Colour	White
Air Delivery	210m3/h
Grille Size	193mm Square
Cut out size	150mm Round
Min. install depth	220mm
Noise Level	39db(A)
IP Rating	IPX4 (What is this?)
Ball bearing motor	Yes
Fan size	150mm
Motor Power	25w
Duct outlet size	150mm diameter

70/120/210m³/h Ventair Slimline All-Purpose Exhaust Fan Square (Wall/Ceiling Mounted) - VSLF100, VSLF125, VSLF150

$77.34

Description:
Versatile wall/ceiling slimline exhaust fan with compact body design. Ideal for small install spaces. Back draft shutter included.

Features:
• New modern slimline design
• Keeps small rooms and damp areas ventilated
• Designed for continuous running if required
• Multi-purpose wall or ceiling mount
• Easy clean and install
• Low install depth
• Energy saving backdraft stopper included

Specifications:

Model Name	Slimline	Slimline	Slimline
Model Number	VSLF100	VSLF125	VSLF150
Colour	White	White	White
Air Delivery	70m³H	120m³H	210m³H
Grille Size	158 x 158mm	180 x 180mm	209 x 209mm
Cut out size	99mm	118mm	147mm
Min. install depth	Wall: 80mm, Ceiling: 150mm	Wall: 80mm, Ceiling: 150mm	Wall: 80mm, Ceiling: 150mm
Noise Level	33db(A)	35db(A)	37db(A)
IP Rating	IPX4	IPX4	IPX4
Ball bearing motor	Yes	Yes	Yes
Duct outlet size	Ø100mm	Ø125mm	Ø150mm
Warranty on Motor	3 years	3 years	3 years
