* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.
Dotless CSP LED strip, 14.4w per metre, IP54
A coated version of our brighter CSP strip, giving smooth, hotspot free light with added protection against dust and light moisture. The close packed chips give a refined finish where the strip is visible.
It is ideal for vanities, bathroom niches, laundry shelving and joinery in areas with occasional humidity. Choose warm, cool or daylight white, by the metre or as a 10 metre roll, with up to 5 metres from one feed.
Key features
- 14.4w per metre, 1325 to 1365 lumens per metre
- CSP chips for smooth, dot free light
- IP54 protection against dust and light moisture
- Choice of 3000k, 4000k or 5500k
- 120° beam angle, CRI over 80

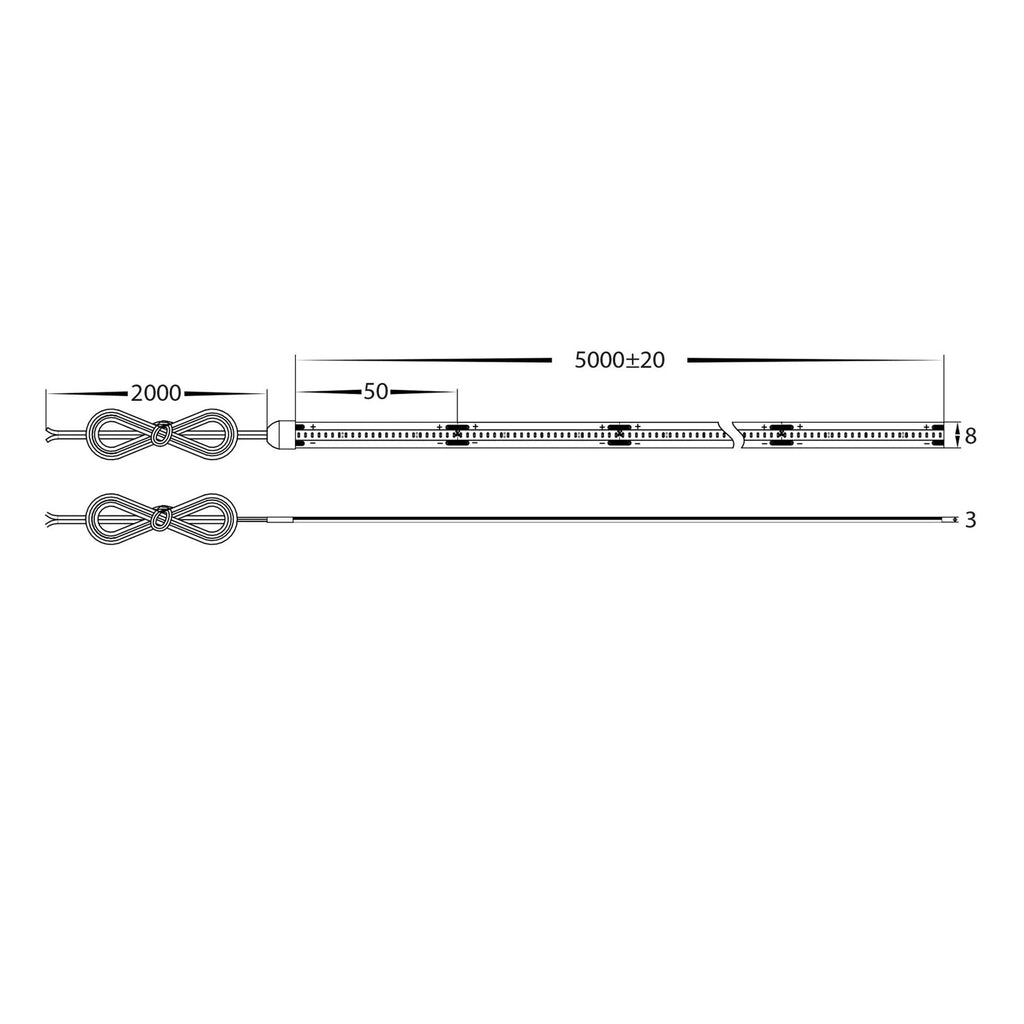

- 8mm wide, 3mm high
- 24v DC, maximum 5 metre run, dimmable
- Sold per metre or as a 10 metre roll
- 3 year warranty
Colour temperature and output
| Colour temperature |
Output per metre |
Best for |
| 3000k Warm White |
1325 lumens |
Bathrooms, bedrooms, vanities |
| 4000k Cool White |
1365 lumens |
Laundries, kitchens, shelving |
| 5500k Bright Daylight |
1340 lumens |
Covered work areas, display |
Choosing a driver
Allow 14.4w for every metre of strip and add about 20% headroom. A full 5 metre run draws 72w, so it needs a 24v driver of at least 87w, which in practice means a 100w driver. For longer installations, split the strip into runs of 5 metres or less and feed each run separately. The 10 metre roll is supplied as one reel, so plan your runs before cutting. Outdoors or in wet areas, use a weatherproof IP66 or IP67 driver or keep the driver under cover. To dim the strip, pair it with a dimmable 24v driver and a compatible dimmer.
Mounting and heat
This strip must be installed on an aluminium heat dissipating surface for warranty purposes, and an aluminium profile also protects it and extends its life. Choose a profile at least 9mm wide inside to suit the 8mm strip, and add a diffuser for the softest line of light. Every cut end must be resealed with an end cap and silicone to keep the IP54 rating, and any outdoor joins should be made in a waterproof connector or junction box.
IP54 rated, suitable for damp and sheltered locations such as bathrooms and laundries.
