Low output CSP LED strip, 4.8w per metre, IP20
This is a gentle, low wattage CSP LED strip for accent light rather than task light. At 4.8w per metre it gives around 360 to 382 lumens per metre, a soft glow that sits comfortably in the background, and 480 chips per metre keep the line smooth and even.
It suits shelving, display cabinets, bedheads, toe kicks and the underside of floating vanities, anywhere you want a subtle line of light that does not compete with the room's main lighting. CRI above 90 keeps colours looking true, and the slim 8mm board fits the narrowest profiles.
Key features
- 4.8w per metre, 360 to 382 lumens per metre depending on colour
- 480 CSP chips per metre for a dense, even line of light
- CRI above 90 for accurate, natural colour
- 120° beam angle

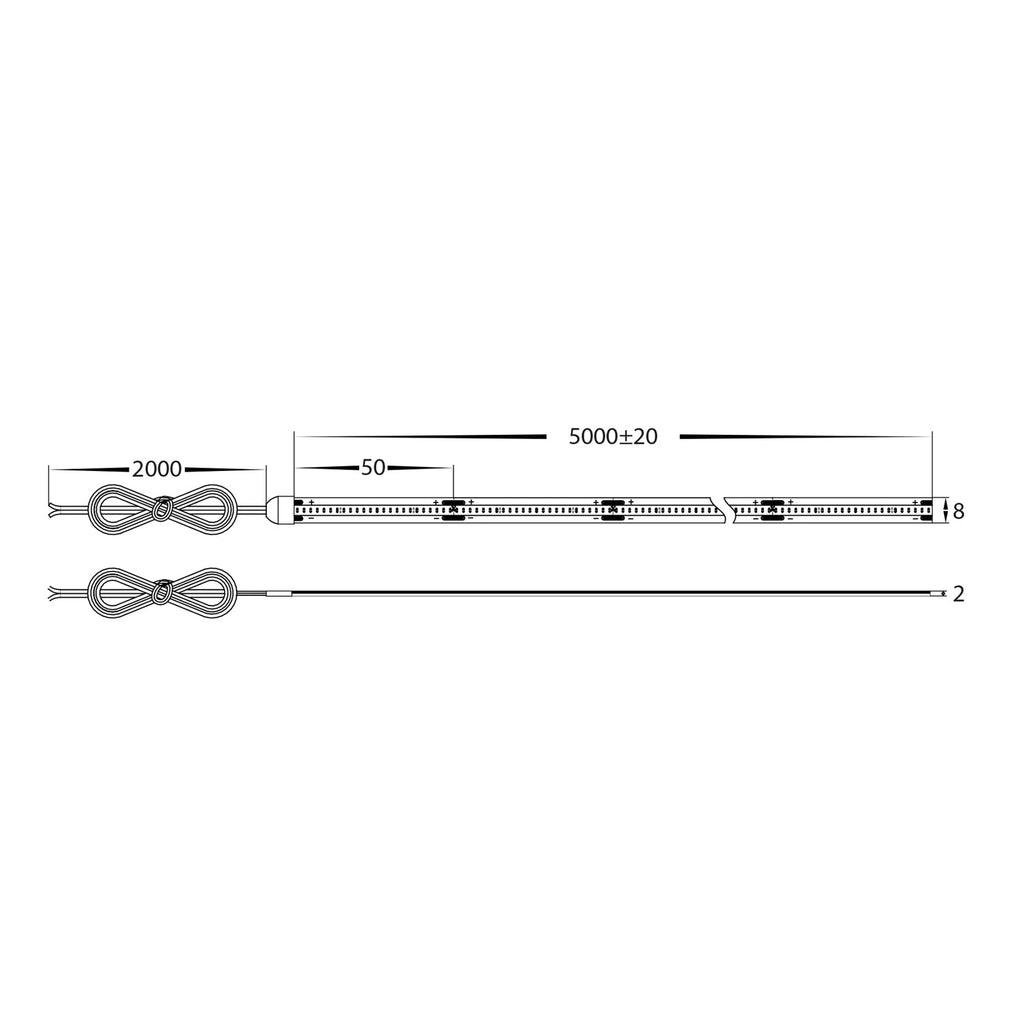

- 8mm wide, 2mm high
- Cut points every 50mm
- 24v DC, maximum run of 5 metres
- 3M double sided tape for easy installation
- 5 year replacement warranty

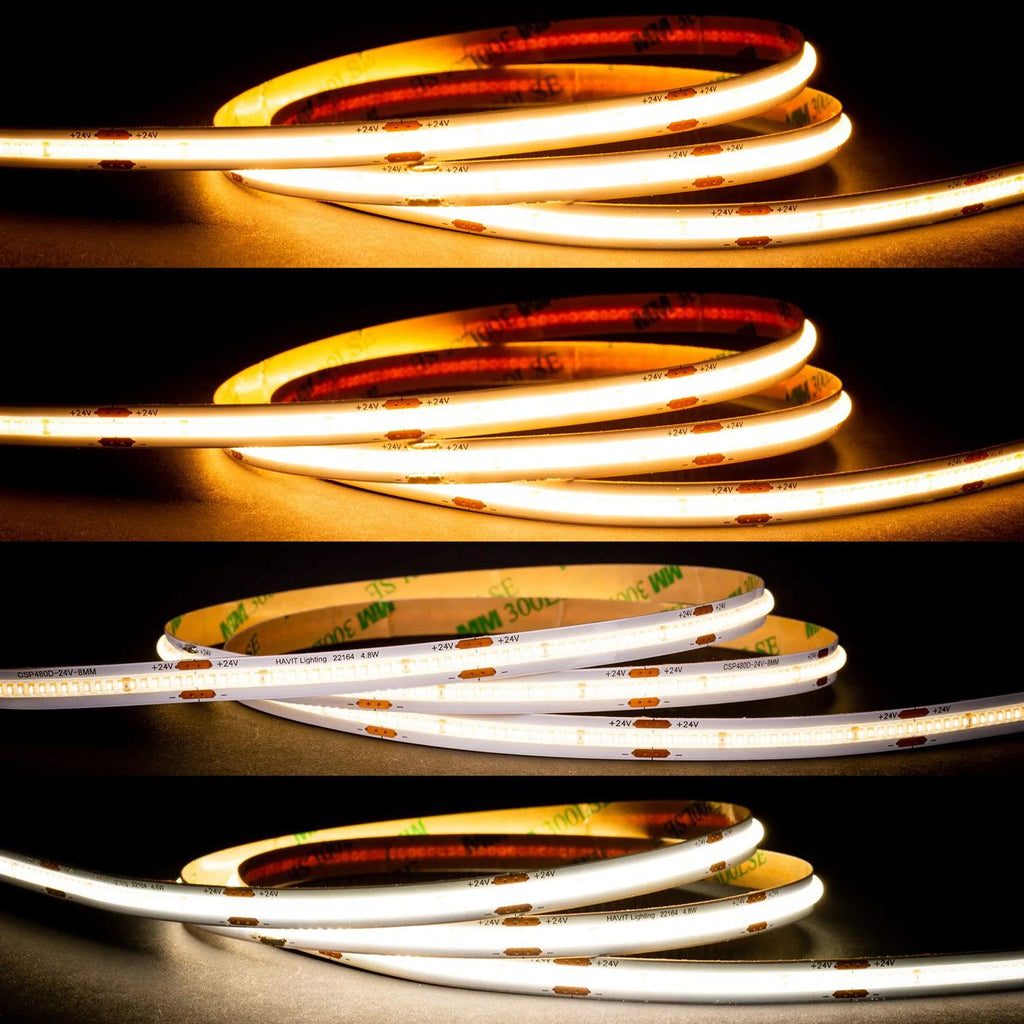

Colour temperature and output
| Colour temperature |
Output per metre |
Best for |
| 2700k Extra Warm White |
360 lumens |
Bedrooms, living areas, restaurants and bars |
| 3000k Warm White |
380 lumens |
Living areas, kitchens, joinery, hospitality |
| 4000k Cool White |
382 lumens |
Kitchens, laundries, workspaces, retail |
| 5000k Daylight |
363 lumens |
Garages, workshops, retail displays |
Choosing a driver
Allow 4.8w for every metre of strip and add about 20% headroom. A full 5 metre run, the maximum length, draws 24w, so it needs a 24v driver of at least 28.8w, which in practice means a 30w driver. For longer installations, split the strip into runs of 5 metres or less and give each run its own feed.
Mounting and heat
This strip runs cool, but we recommend mounting it in an aluminium profile. The profile draws heat away from the chips, protects the strip and extends its life, and a diffuser gives the softest line of light. Choose a profile at least 9mm wide inside to suit the 8mm strip. The 3M double sided tape on the back makes fixing straightforward.
IP20 rated for dry indoor locations only.
This range is supplied on quotation. Use the enquire for price button with your quantities and products and we will email you a personalised quote.
