- Bollard Light With Spike
- 200mm Spike Length
- 1m Reinforced Cable
- TRI Colour
- 3000k, 4000k, 5500k
- IP Rating: IP65
- Input Voltage: 12V DC
- 3w G5.3 LED Globe
- Dimmable: No
- CRI: >80
- 3 Years Replacement Warranty
- Must be used with suitable 12v DC LED driver
Dimension:
- Diameter: ø170mm
- Height: 574mm
- Spike Length: 200mm
| Part Number |
Colour |
Colour Temperature
|
Lumens
|
Beam Angle |
| HV1452T-AB |
Solid Brass With Antique Brass Finish |
3000k
4000k
5500k
|
300lm
315lm
310lm
|
90°
|
| HV1452T-BLK |
316 Stainless Steel Poly Powder Coated Black |
3000k
4000k
5500k
|
300lm
315lm
310lm
|
90°
|
| HV1452T-CP |

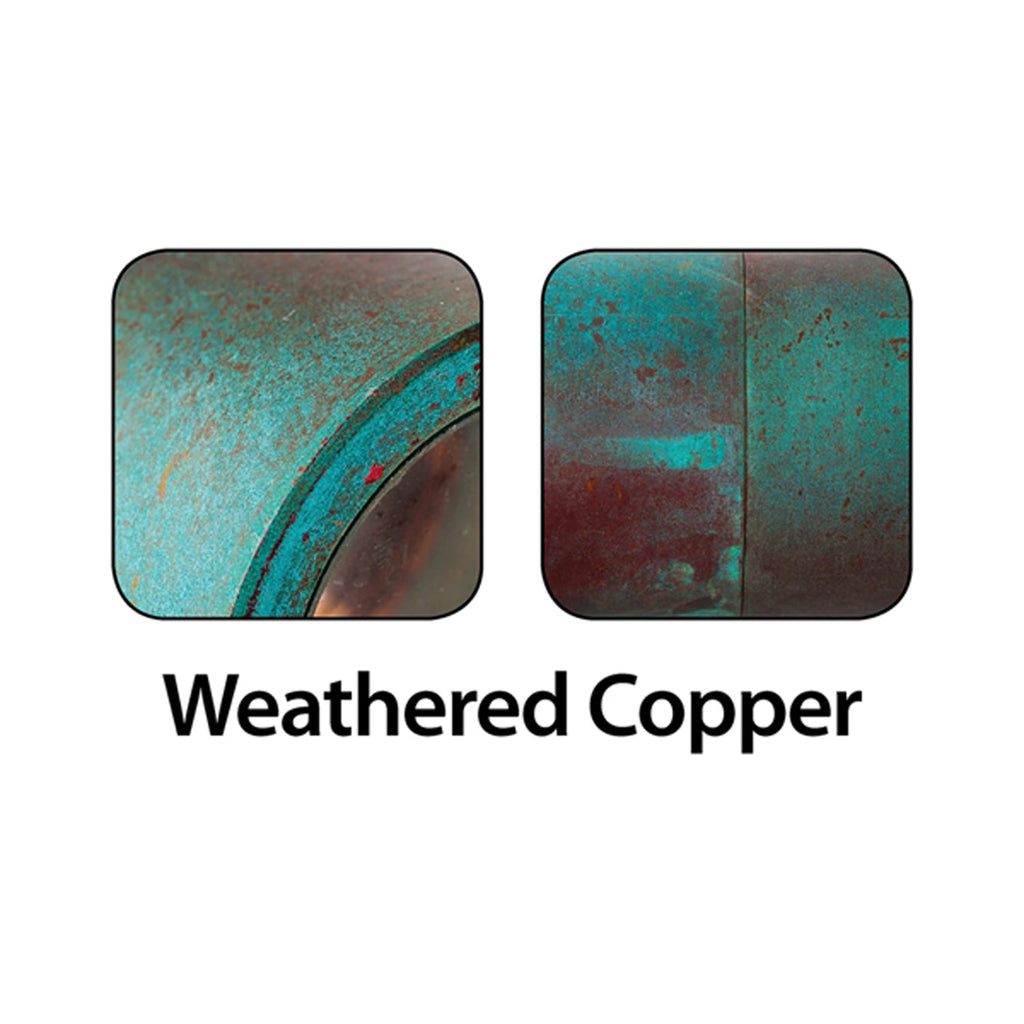

Solid Copper (will age over time) |
3000k
4000k
5500k
|
300lm
315lm
310lm
|
90°
|
| HV1452T-SS316 |
316 Stainless Steel |
3000k
4000k
5500k
|
300lm
315lm
310lm
|
90°
|
Choosing a driver
This spike light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 3w for each spike light and add about 20% headroom. 10 spike lights draw 30w, so they need a 12v driver of at least 36w, which in practice means a 60w driver.
| 12v driver size |
Maximum spike lights |
| 30w |
8 |
| 60w |
16 |
| 100w |
27 |
| 150w |
41 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
